AGS Glazing Adaptors
Capral offers a wide range of adaptors that provide glazing options for existing and new structures.
Key features
- An extensive range of Glazing Adaptors provides a wide range of glazing options
- Low-profile sections maximise daylight openings
- Options from 4mm single glazing through to 41mm double glazing
- Beaded options for both single and double glaze applications are available
- Glazing Adaptors can be fitted to a variety of structural surfaces
Capral offers a wide range of adaptors that provide glazing options for existing and new structures. They may be used on a variety of sub-structures including steelwork, timber or aluminium.
Options include glazing channels for frameless glazing, internal partitioning, door and general adaptors and also the familiar St Lucia and St Kilda plant-on glazing systems. Some glazing adaptors may also be used as a secondary glazing option for increased acoustic performance.
Note that glazing adaptors have limited structural capabilities and rely on being fixed to a suitable structural member.
Download BrochureDetails
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Project specific
Frame Dimensions (mm)

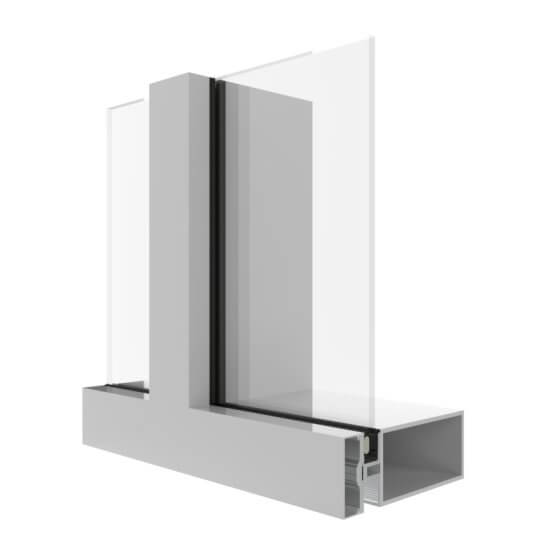

St Kilda
Project Specific

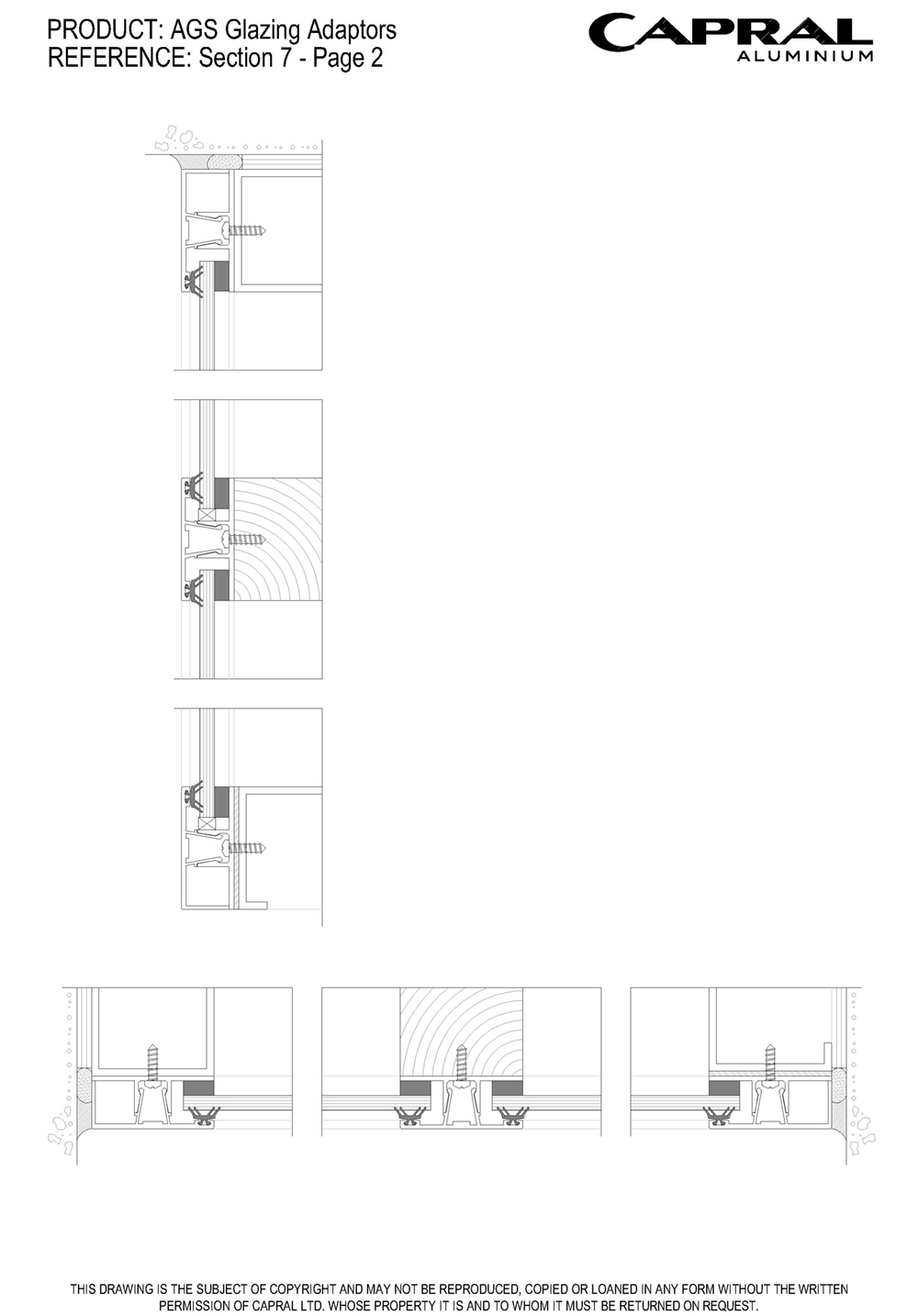

St Lucia
Project Specific

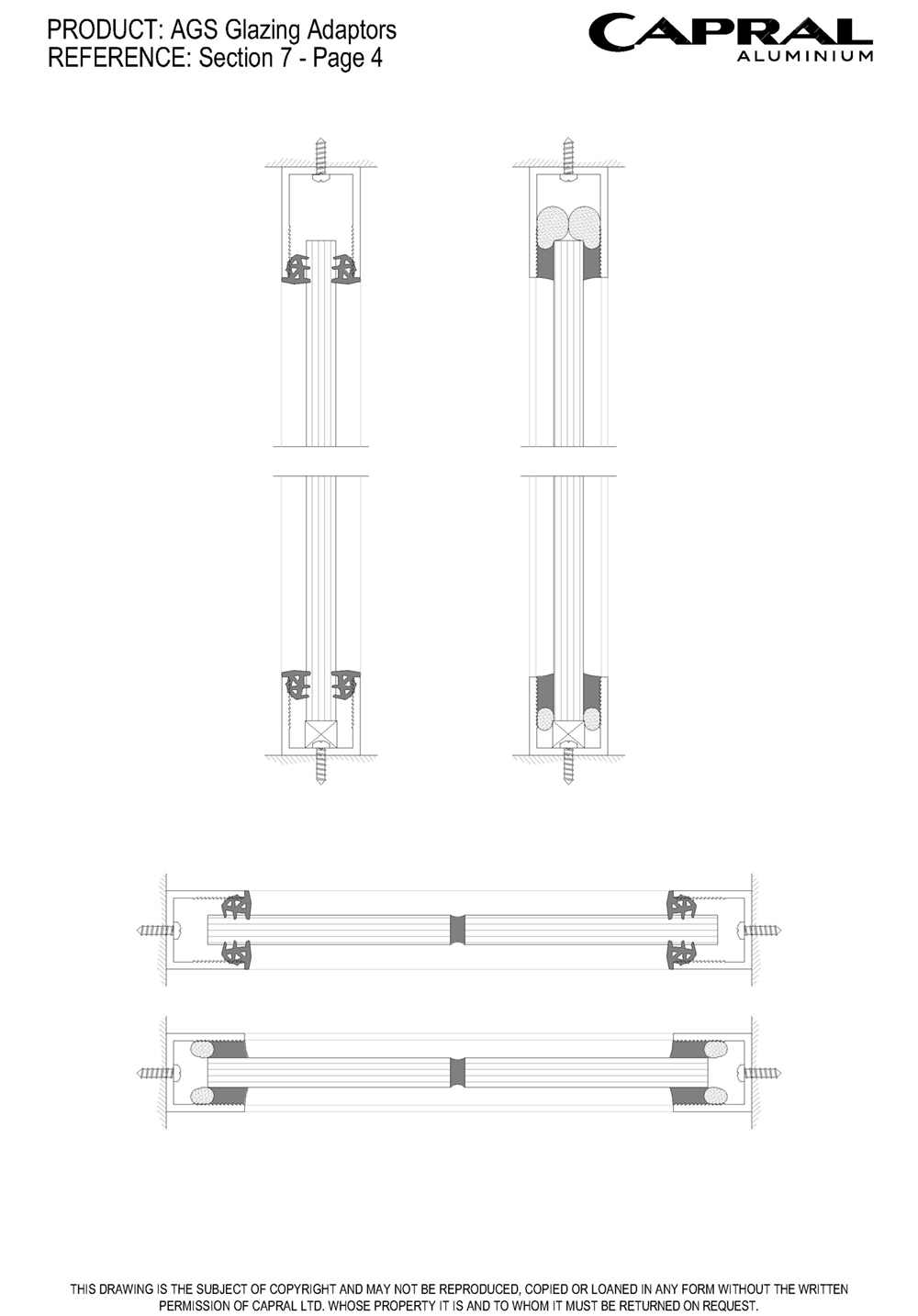

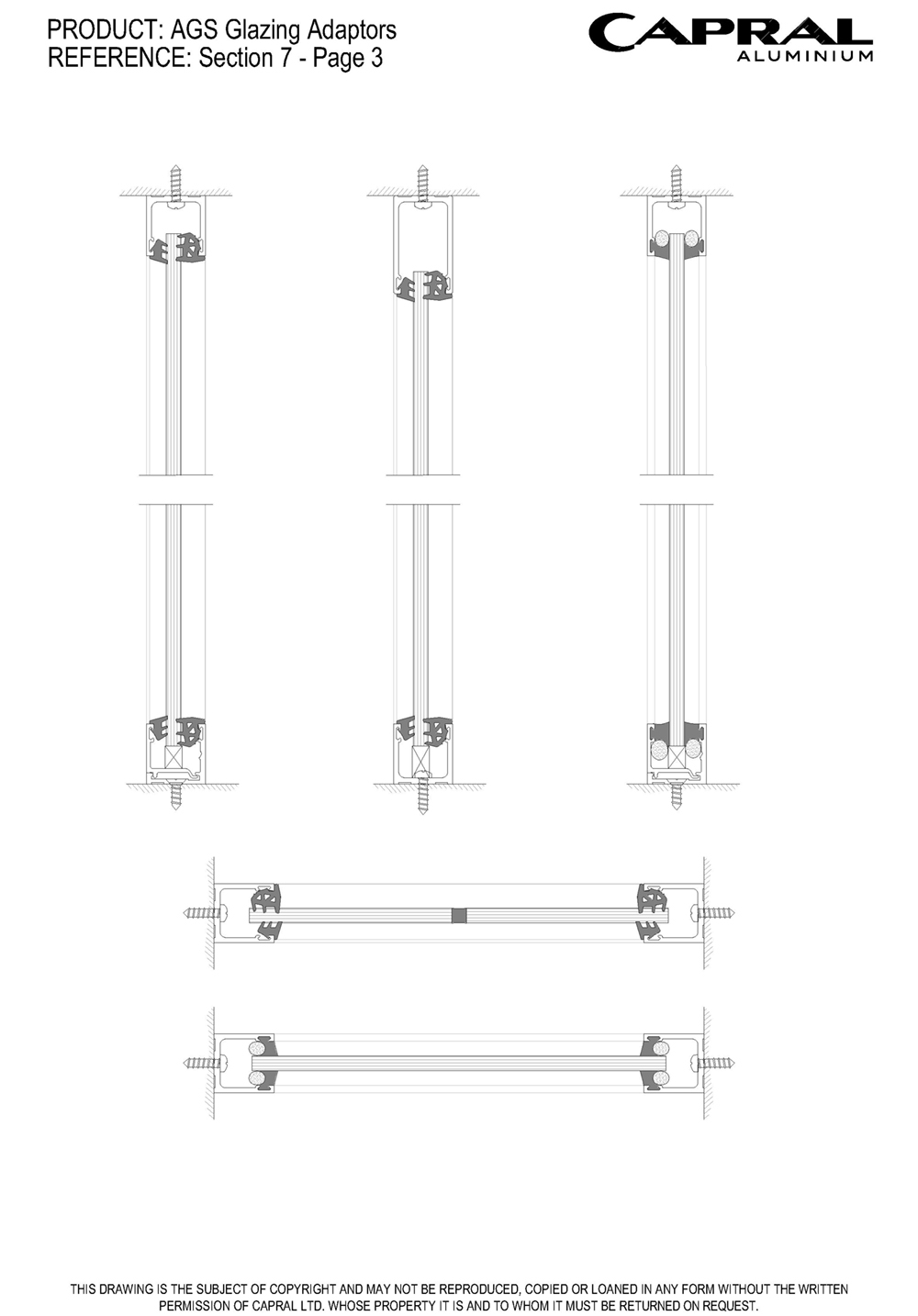

Frameless
24 & 32

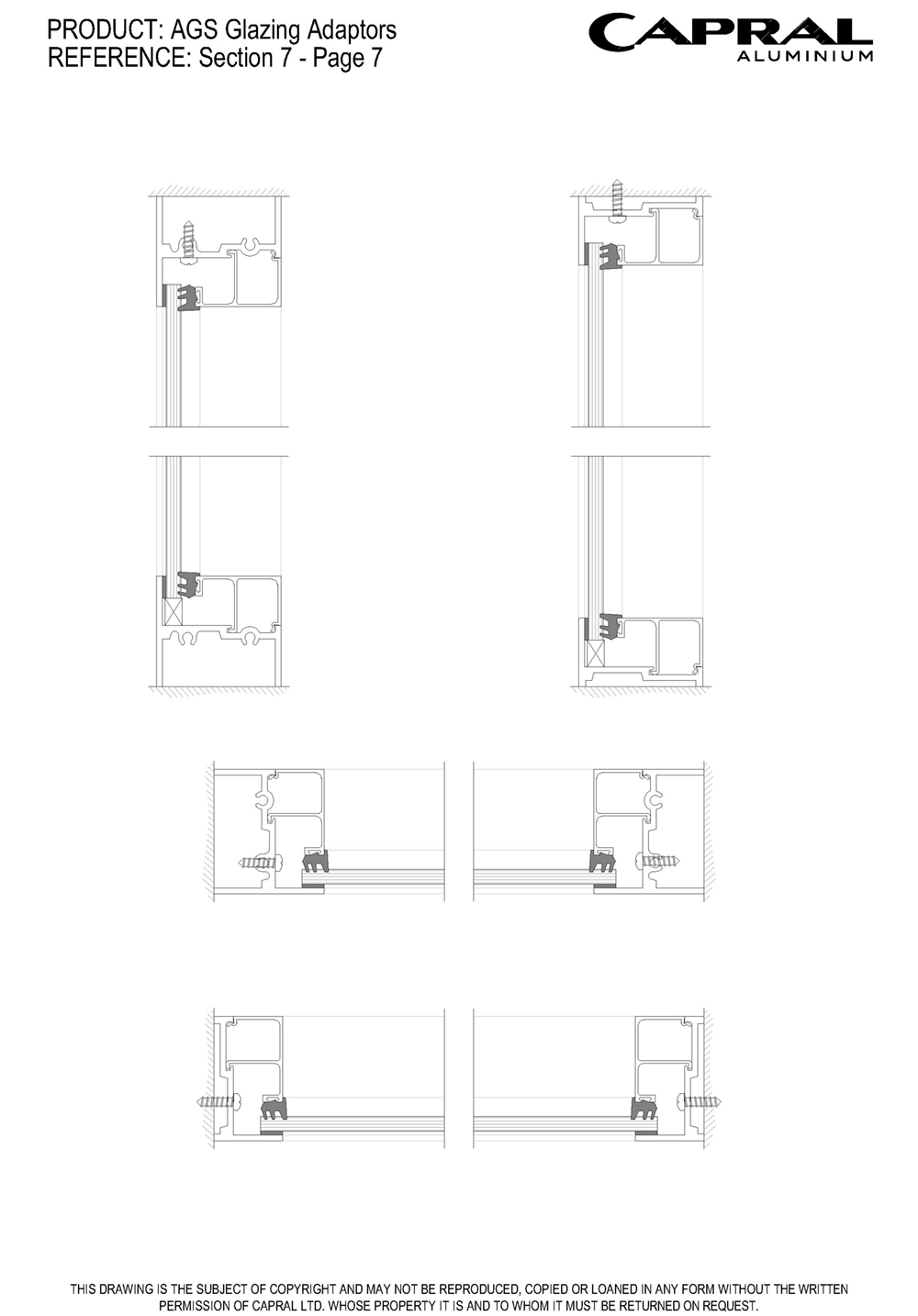

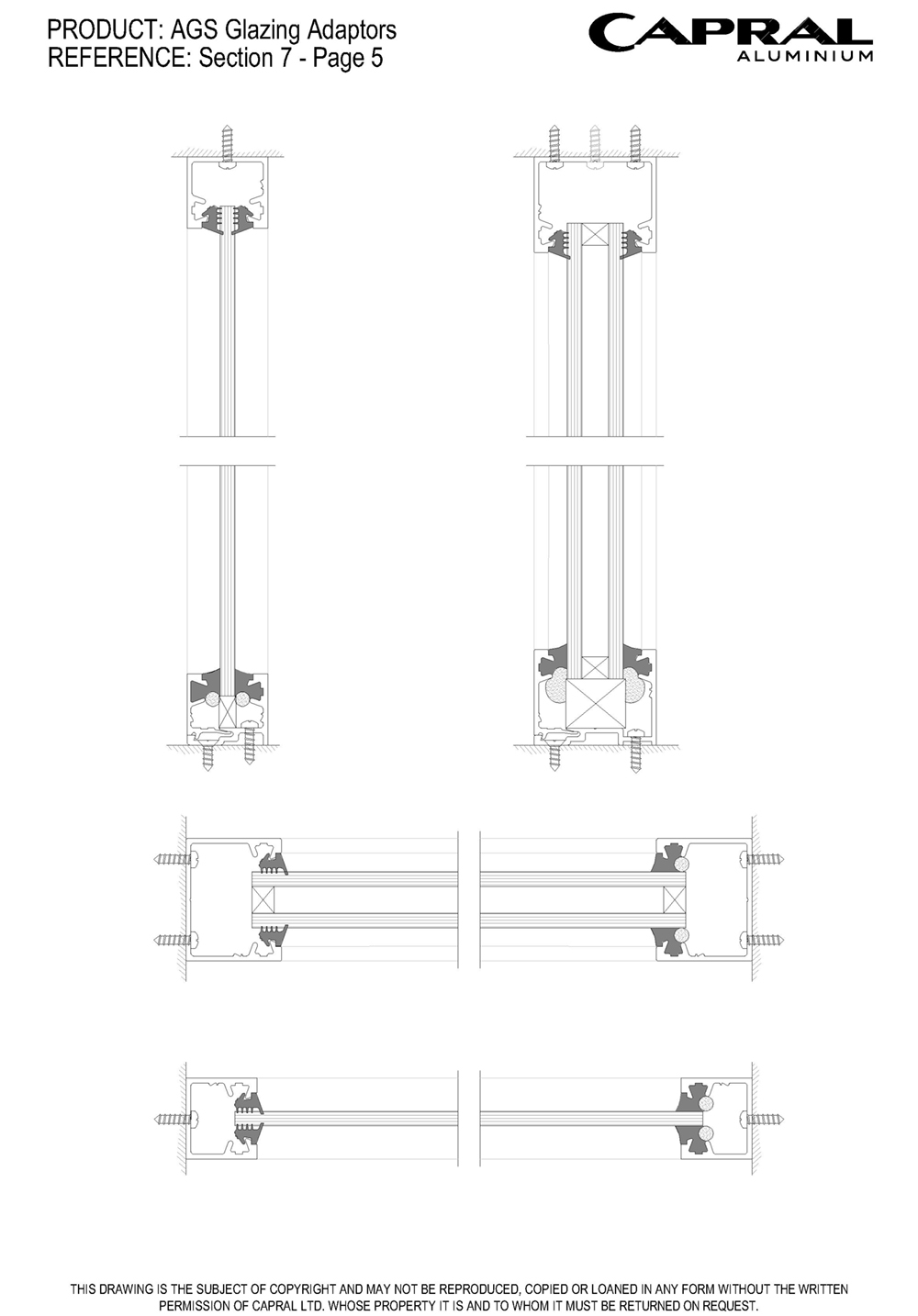

Flushline Frameless
33 & 50

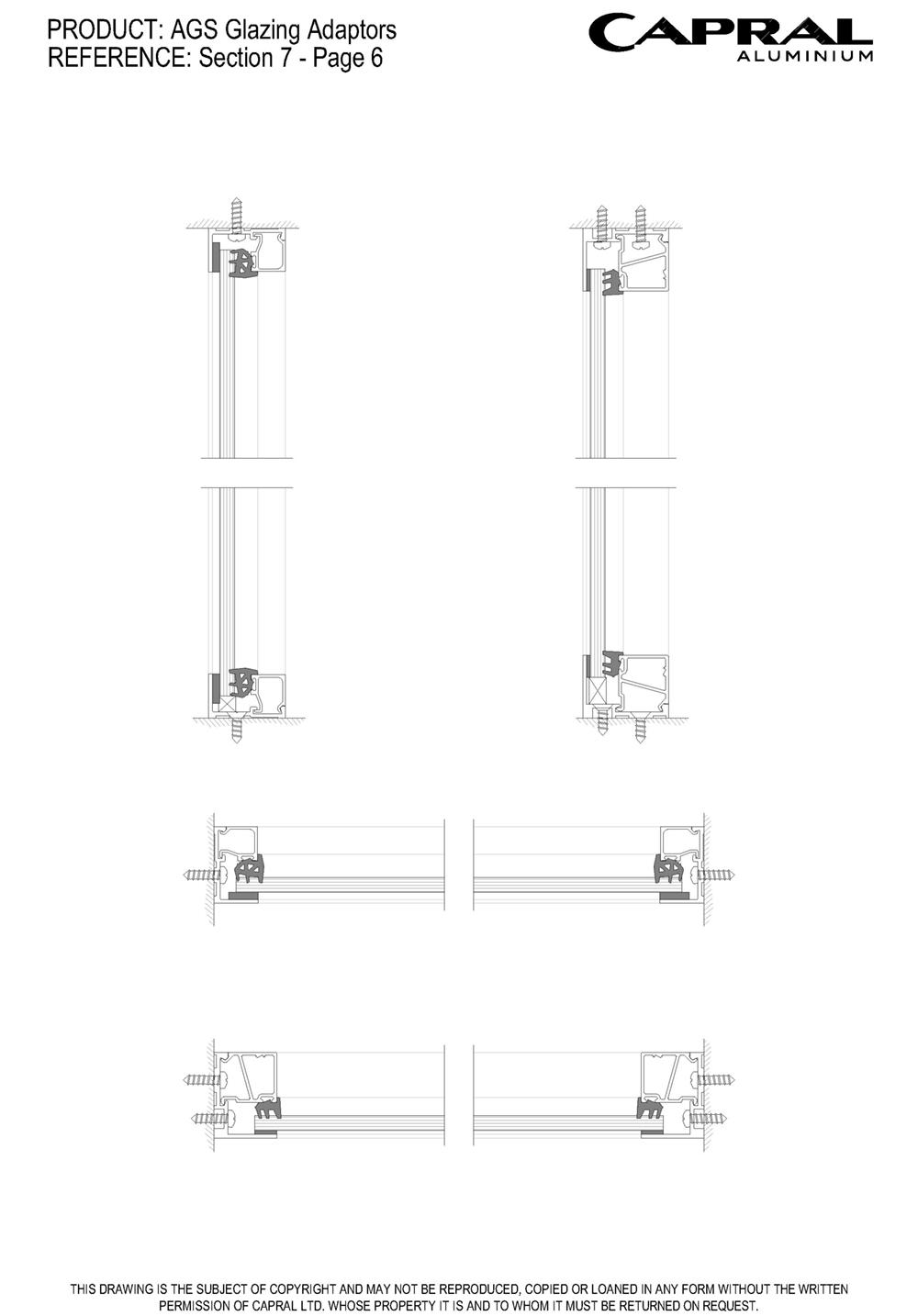

General
31, 35 & 51
Maximum Product Performance
NA
Glazing Details
Single Glazed
4 - 14
Double Glazed
18 - 41
Thick Glazed
10 - 20
