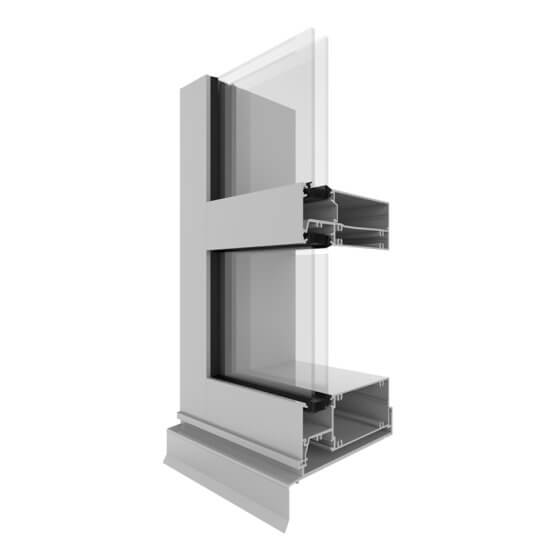

    AGS Commercial 629 Flushline Double Glazed (150mm)

    Flushline AGS629 is the new name for the product formerly known as Flushline 419DG 150mm x 55mm. This system was developed to accommodate both internal and external glazing.

    Download Brochure WERS Rating
    Commercial
    Declare Label
    Certified
    Acoustic
    Rated
    Cyclone Impact
    Tested
    Image Gallery Key Features Details Downloads Compatible Products More Products
    Jump to:
    Select
    Home Fire Studios ASA Windows Capral Aluminium
    Capral framing system seen a the north sydney pool

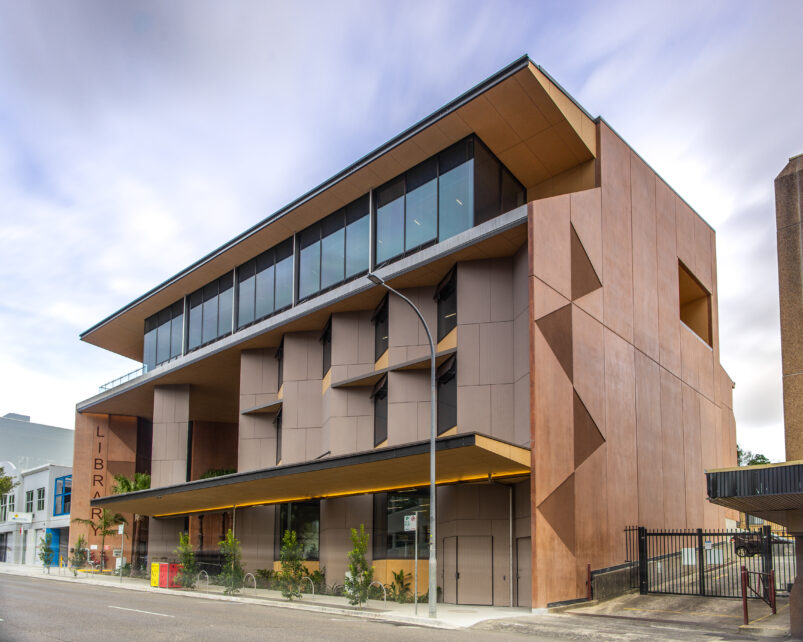

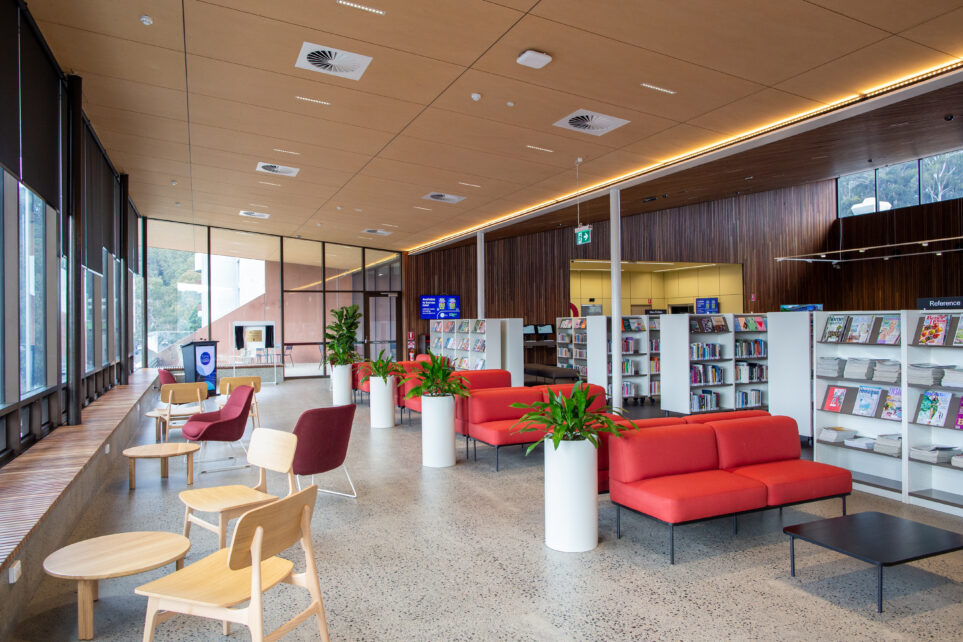

    gosford library
    gosford hero shot pcw

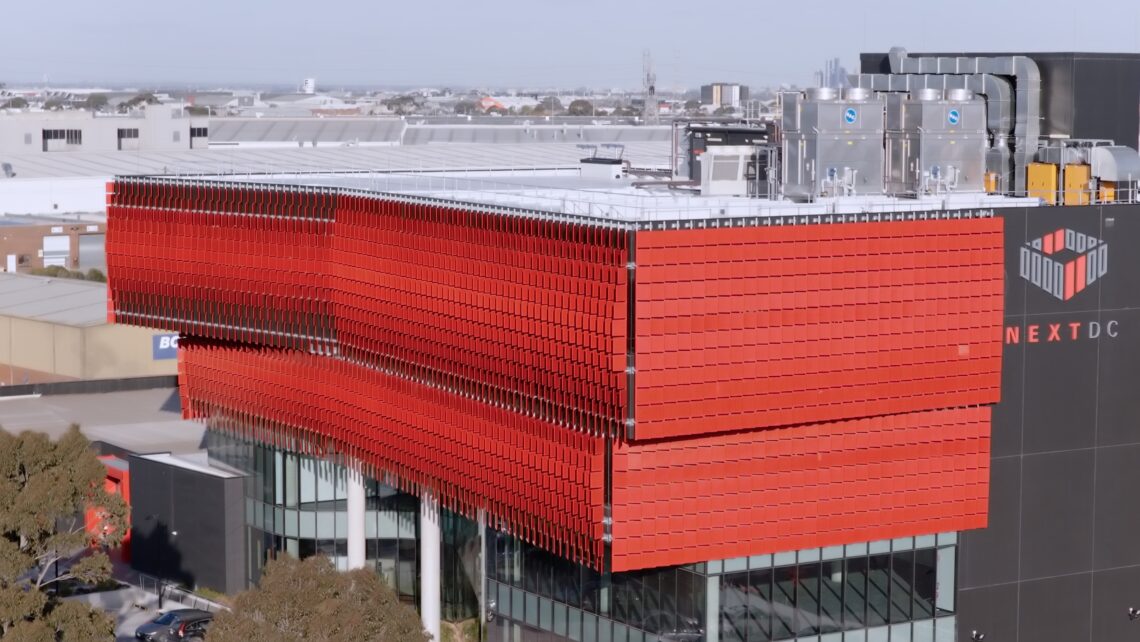

    M2 Melbourne Data Centre - fenestrate
    Ashfield Woolworths
    Capral's Project MyState Bank Arena using Capral window and building systems.
    Capral's Project MyState Bank Arena using Capral window and building systems.
    Capral's Project ECU Science Building using Capral window and building systems.
    Capral's Project ECU Science Building using Capral window and building systems.
    Home Fire Studios ASA Windows Capral Aluminium
    Capral framing system seen a the north sydney pool
    gosford library
    gosford hero shot pcw
    M2 Melbourne Data Centre - fenestrate
    Ashfield Woolworths
    Capral's Project MyState Bank Arena using Capral window and building systems.
    Capral's Project MyState Bank Arena using Capral window and building systems.
    Capral's Project ECU Science Building using Capral window and building systems.
    Capral's Project ECU Science Building using Capral window and building systems.

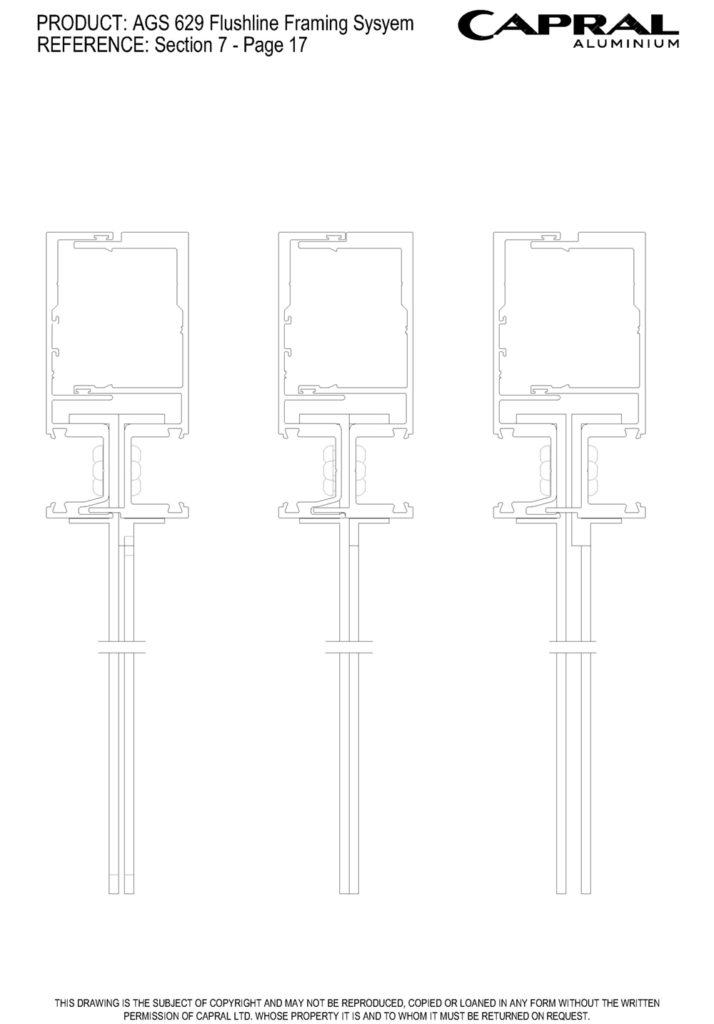

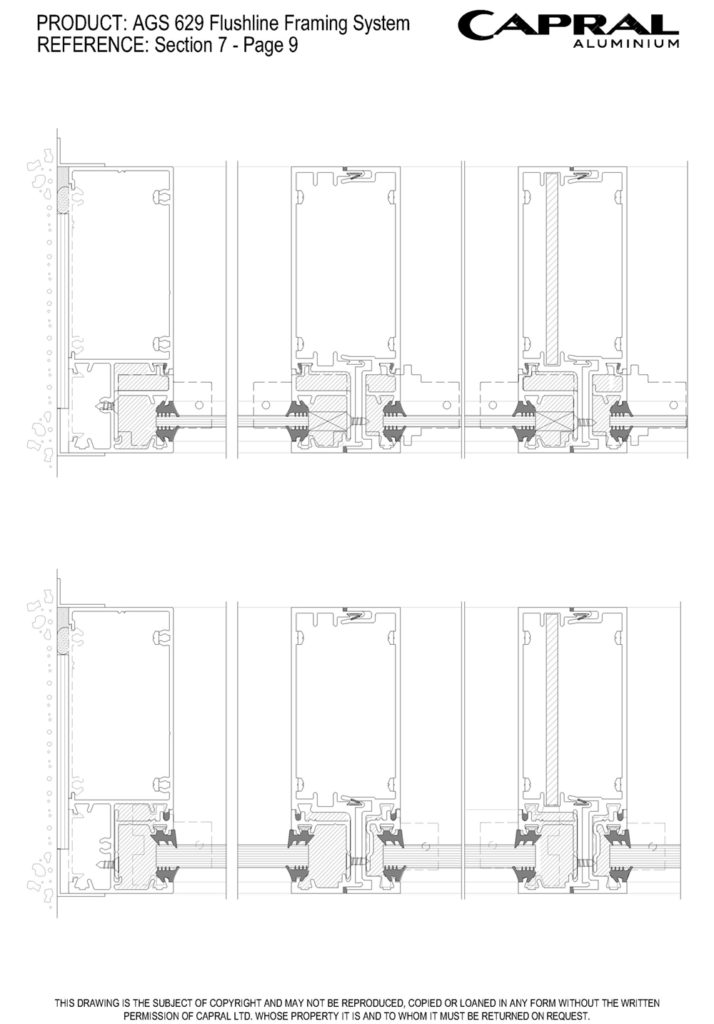

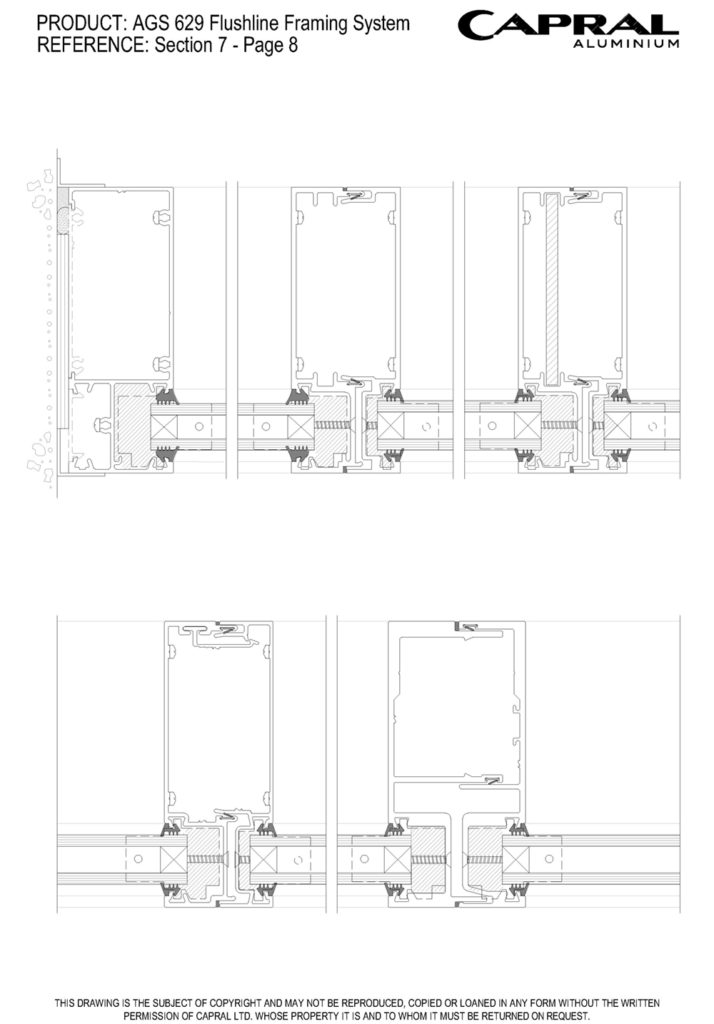

    Key features
    • 150x55mm double-glazed frame options

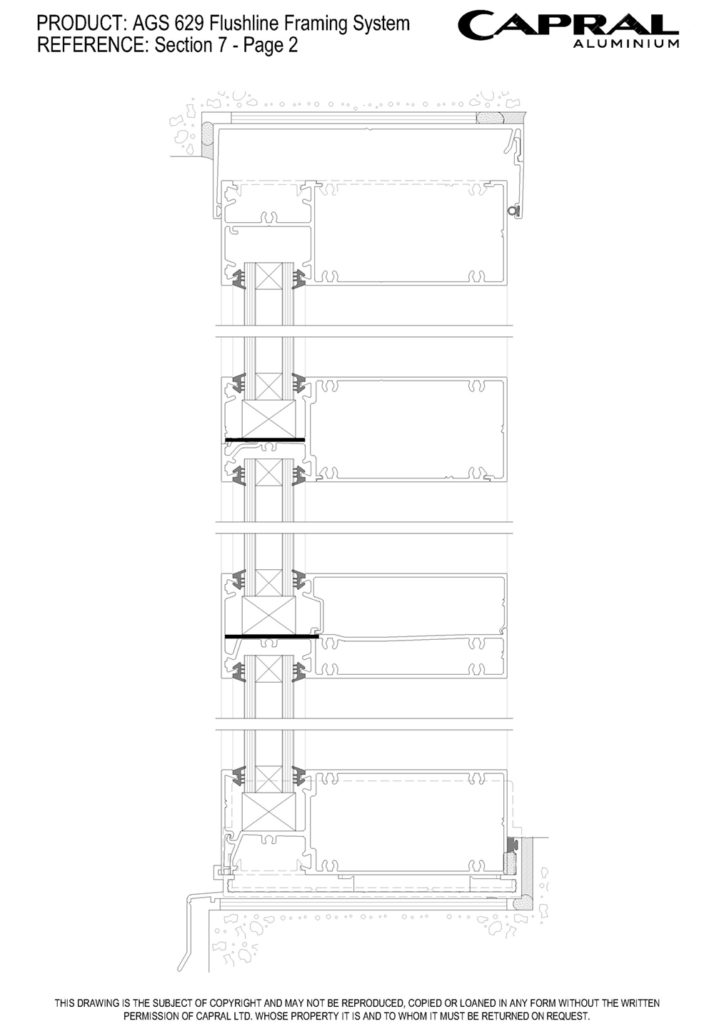

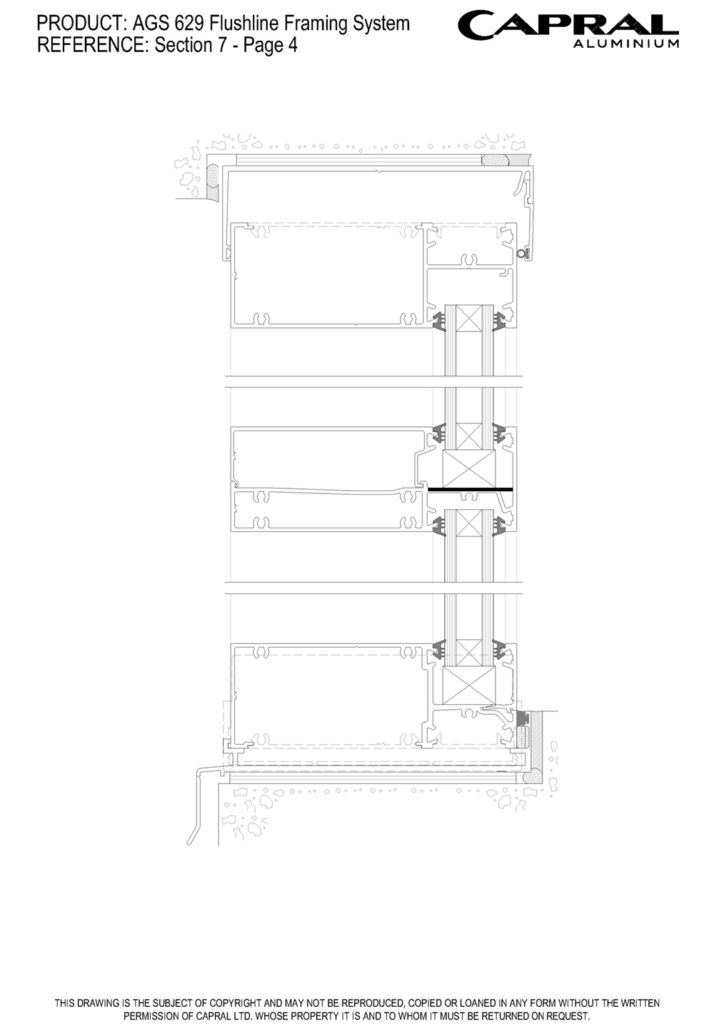

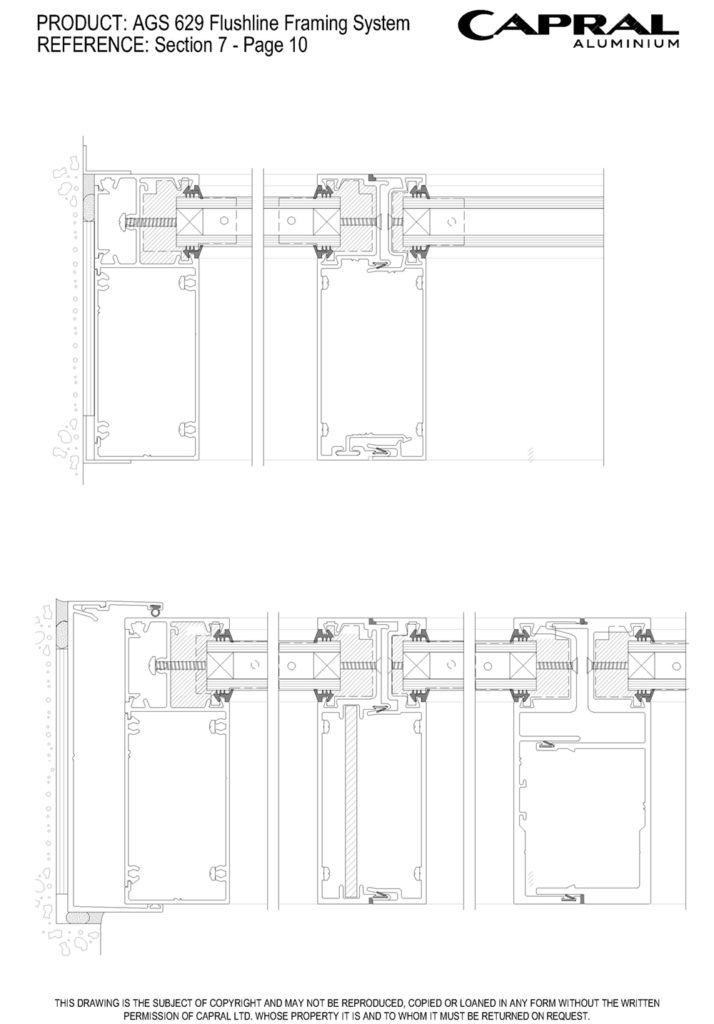

    • Forward-positioned glazing pocket for flush external finish or reverse installation possible for expressed mullions
    • Captive glazing wedge options for more accessible on-site glazing

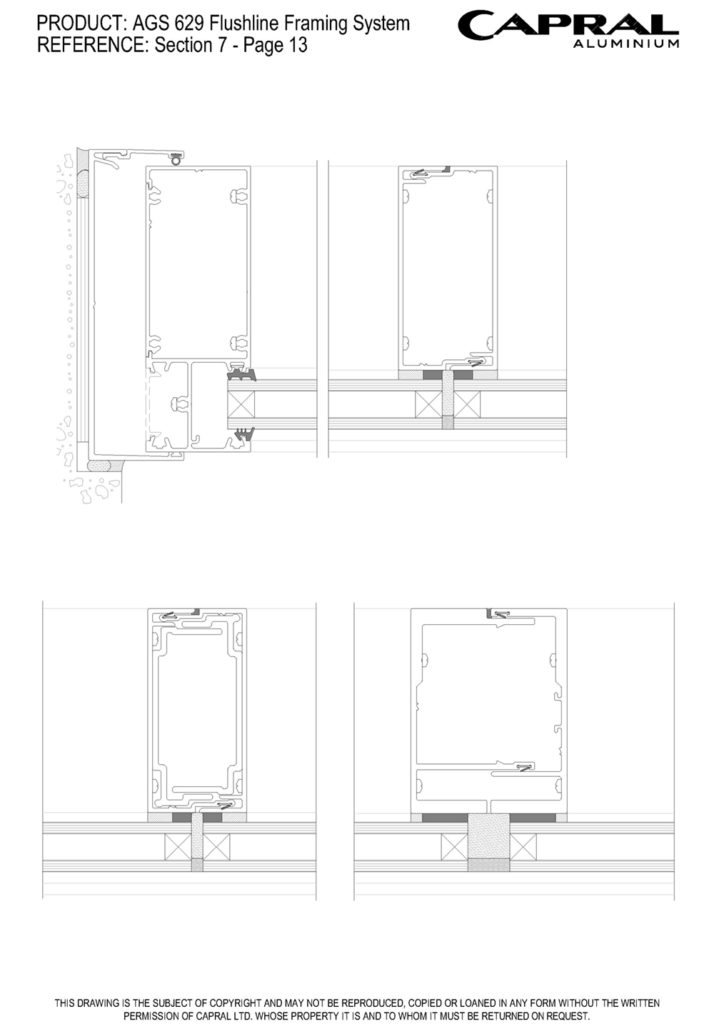

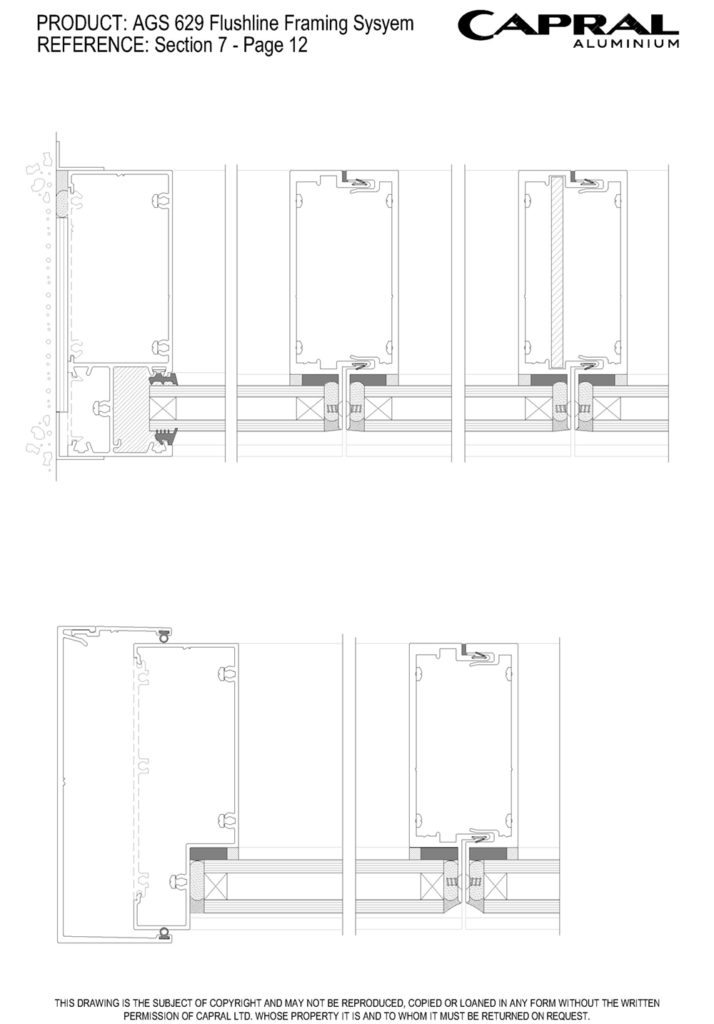

    • Structurally glazed mullion and or transom options

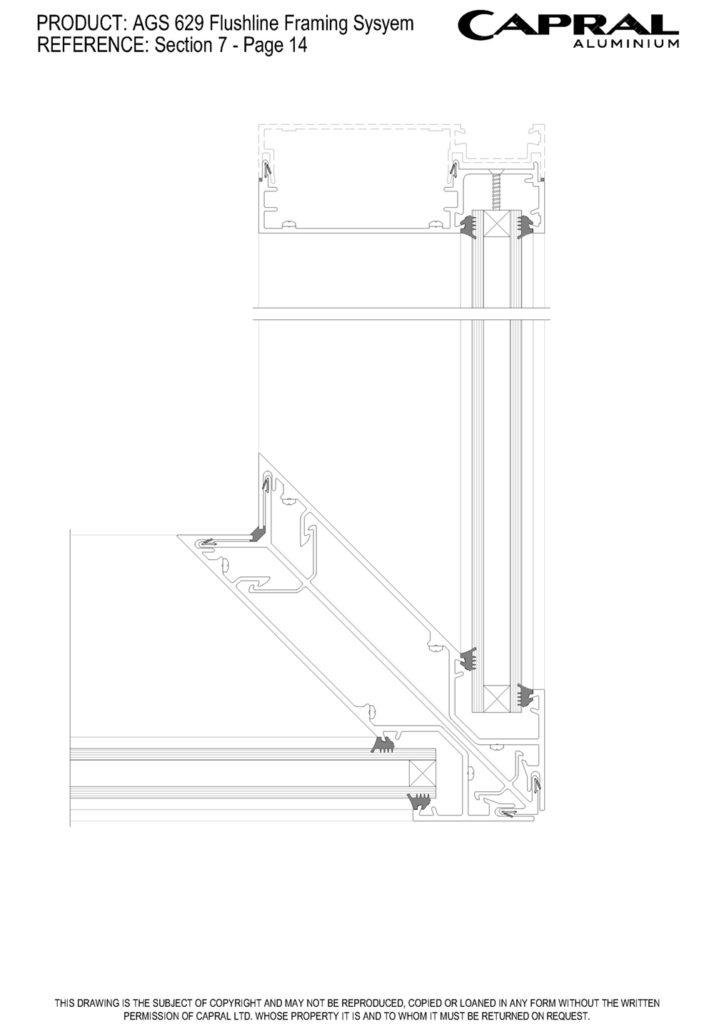

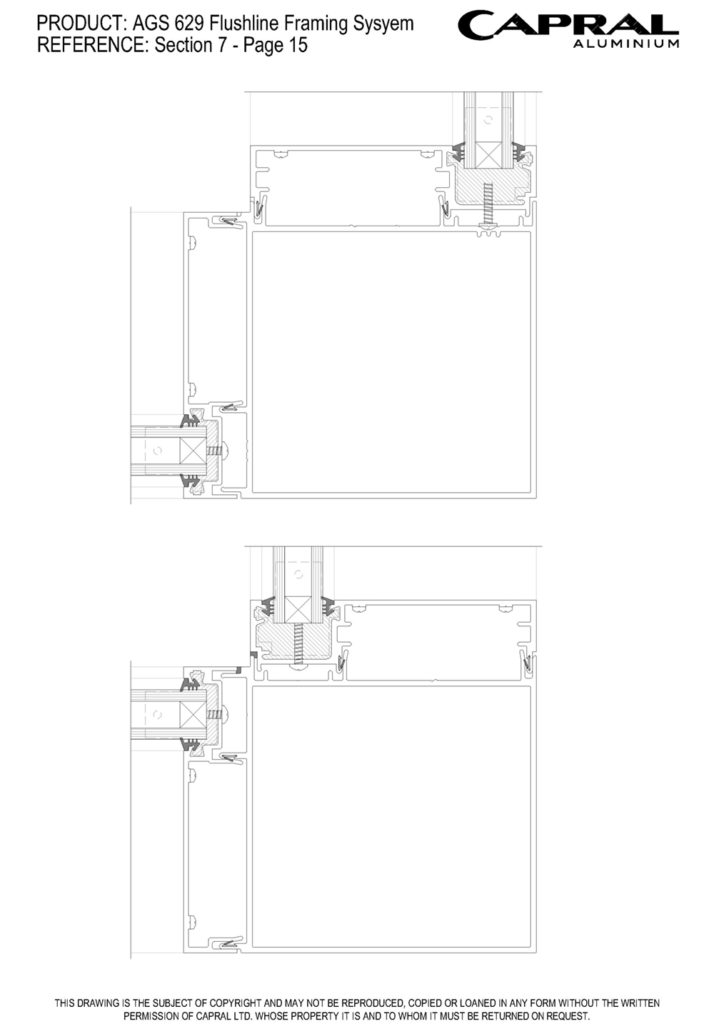

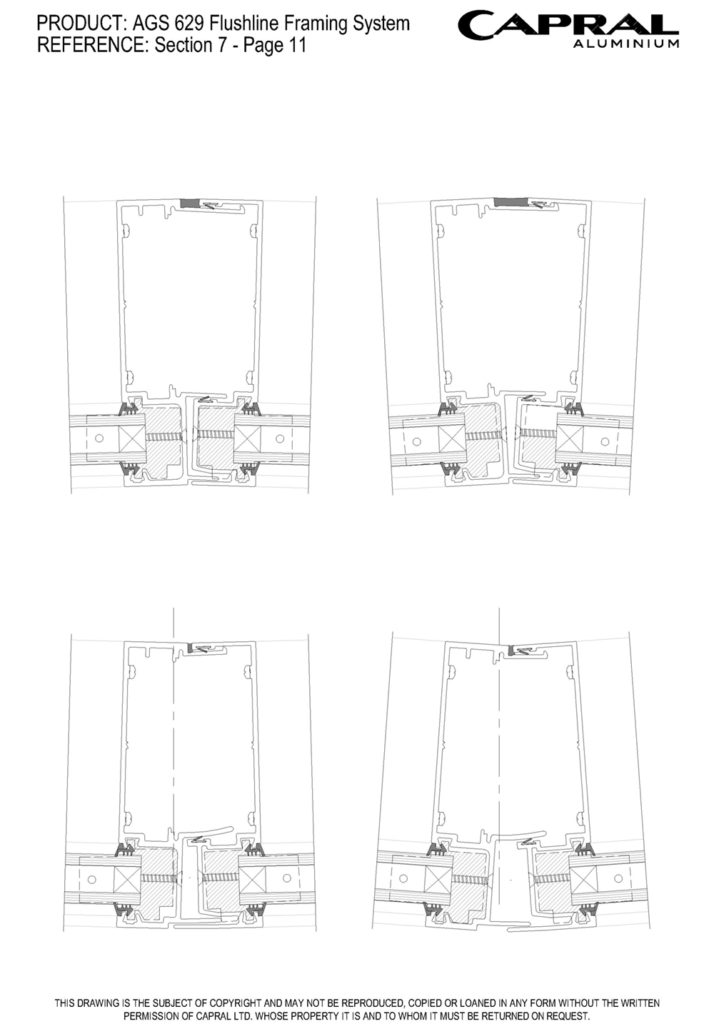

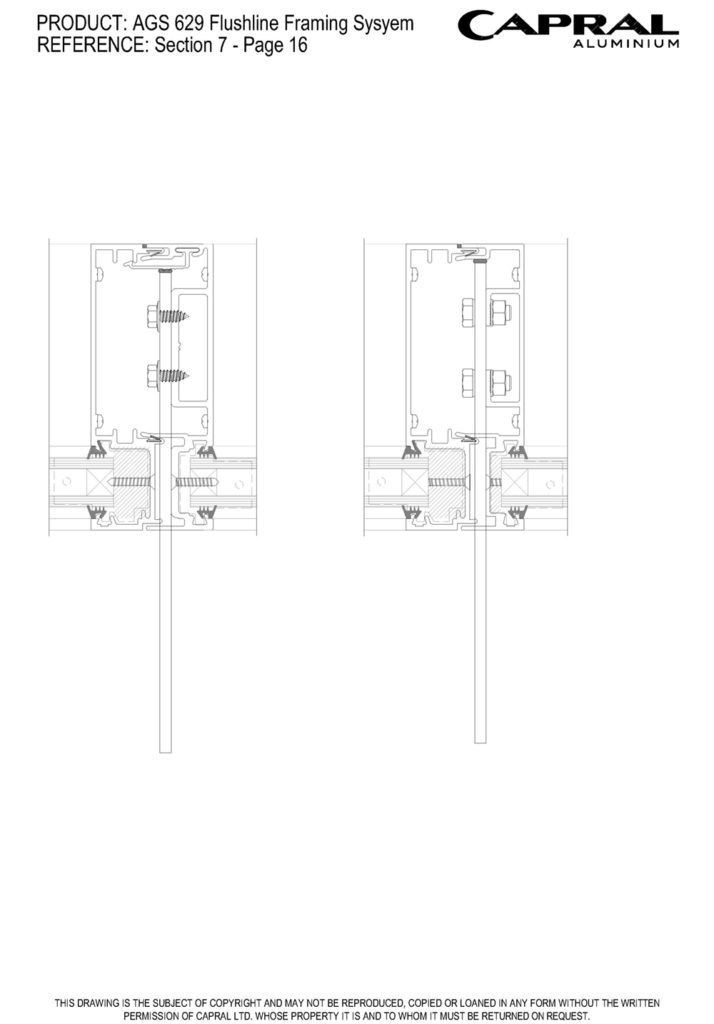

    • Faceted Mullions
    • A wide range of compatible AGS window and door suites are available
    • Supports various glass thicknesses with the use of an adaptor
    • Sub frame including spandrel sub frame available
    • Internal and externally beaded options
    • Double-glazed with adaptors for single & thick glass options

    The AGS 629 150mm double-glazed commercial Flushline framing system has been developed to accommodate both internal and external glazing techniques. Its front glazed arrangement has been designed to maximise internal areas whilst achieving a clean and modern external appearance.
    The AGS 629 Flushline system is available in double-glazed or single-glazed with adaptors, incorporates optional structurally glazed mullion profiles and is compatible with several operable door and window options.

    Download Brochure

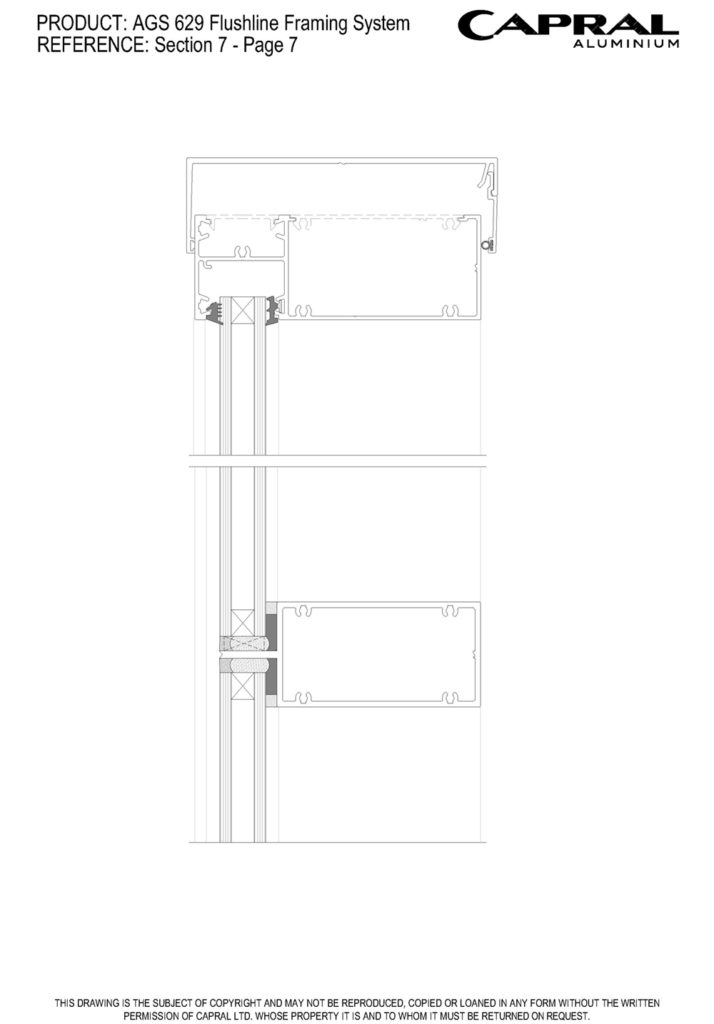

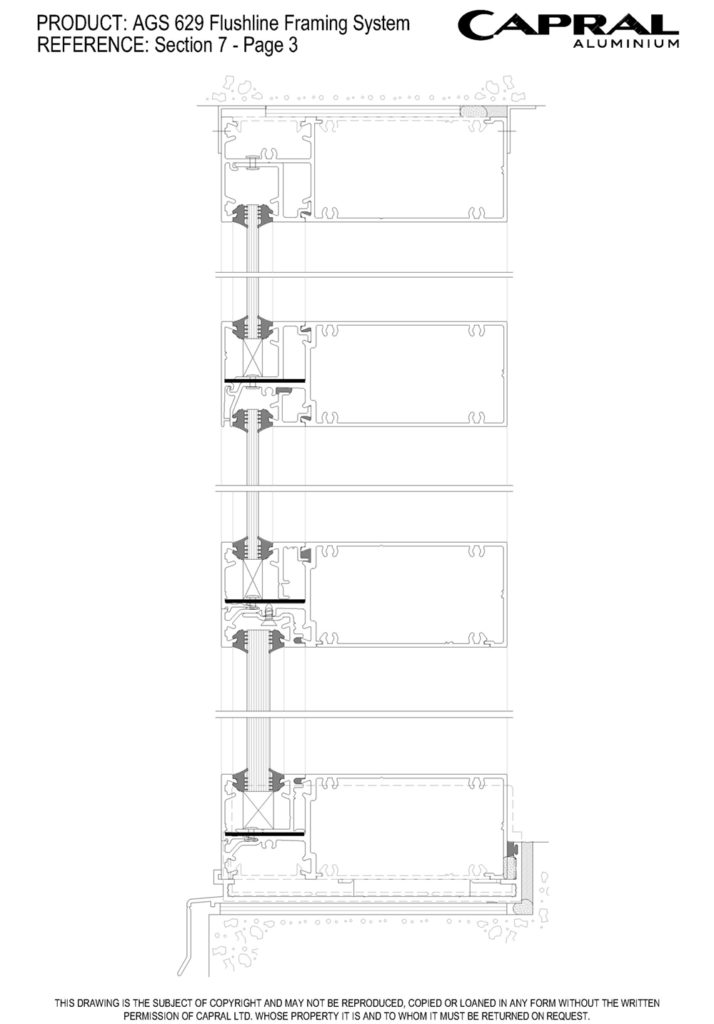

    Details

    Product Specs
    Configurations
    Arrangements

    Maximum Product Sizes

    Panel Height (mm) 5000
    Panel Width (mm) 2400

    Frame Dimensions (mm)

    Frame depth (mm) 150
    Face Width (mm) 55

    Acoustic Rating

    Rw (C;Ctr) 40 (-2;-6)

    Maximum Product Performance

    SLS (Pa) 4500
    ULS (Pa) 15000
    WATER (Pa) 1200

    Glazing Details

    Single Glazed 5 - 12
    Double Glazed 22 - 29
    Thick Glazed 12 - 18

    Single and thick glazed option use glazing adaptors

    Energy Performance

    Uw Range 2.50 - 6.25
    SHGC Range 0.13 - 0.71
    Tvw Range 0.00 - 0.72
    Air infiltration 0.27 - 0.27
    WERS Rating
    Commercial

    Downloads

    Technical Documents, CAD & Revit
    Other
    Technical Manuals
    Technical Manual AGS 629 Flushline
    Technical Manual AGS Sub Frames
    Wall Charts
    Extrusion Wall Chart AGS 150mm Flushline Framing Systems
    Extrusion Wall Chart AGS Speciality Sub Frames
    Extrusion Wall Chart AGS Sub Framing
    BIM Files
    Revit AGS Flushline Framing
    Revit Capral Subframes
    CAD Files
    CAD Files AGS 629 Flushline
    CAD Files AGS Sub Frames
    CAD Wall Chart AGS Flushline Framing
    CAD Wall Chart AGS Sub Framing
    Bulletins
    PB468 - AGS Commercial Sub Frames – Sub Sill Splice Plate
    PB343 - AGS Flushline Relaunch
    Other
    Capral AGS 629 Flushline Brochure Specification AGS 629 Flushline Capral Installation Details
    NATSPEC Branded Work Section
    Environmental Protection Declaration (EPDs)
    EPD-IES-0031050:001 LocAl Version: 1 (2026-05-28)
    EPD-IES-0032247:001 LocAl SG Version: 1 (2026-06-12)
