AGS Commercial 619 Single Glazed (150mm)
Flushline AGS619 is the new name for the product formerly known as Flushline 419SG 150mm x 50mm. The AGS 619 Flushline offers a clean and modern external appearance.
Certified
Rated
Key features
- 150x50mm single-glazed frame
- It suits most commercial or architectural applications

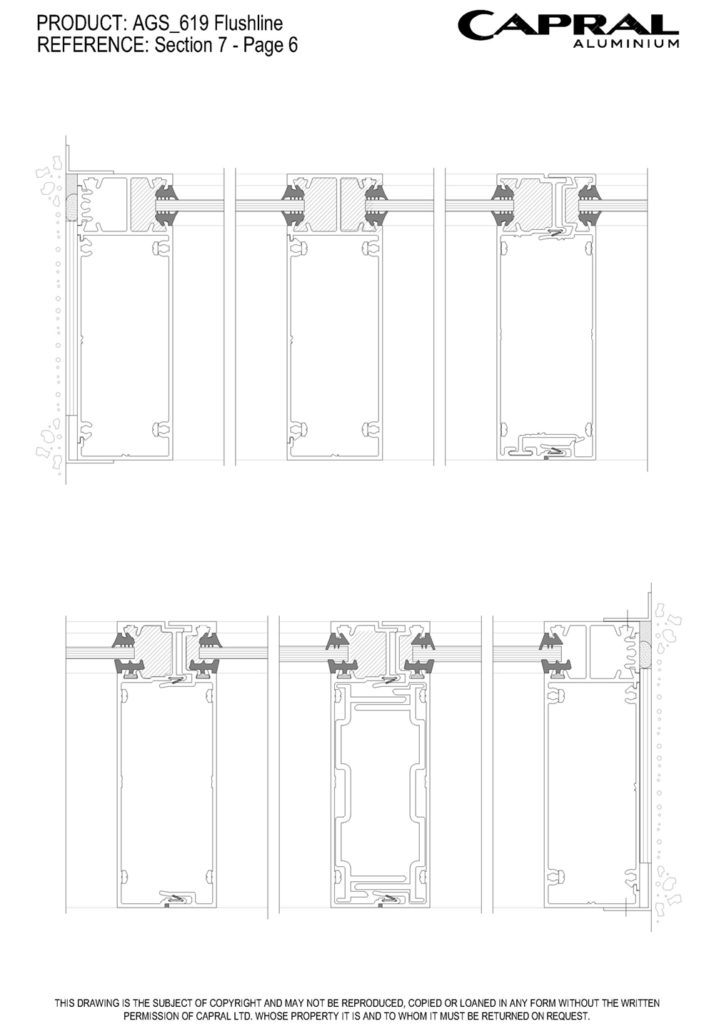

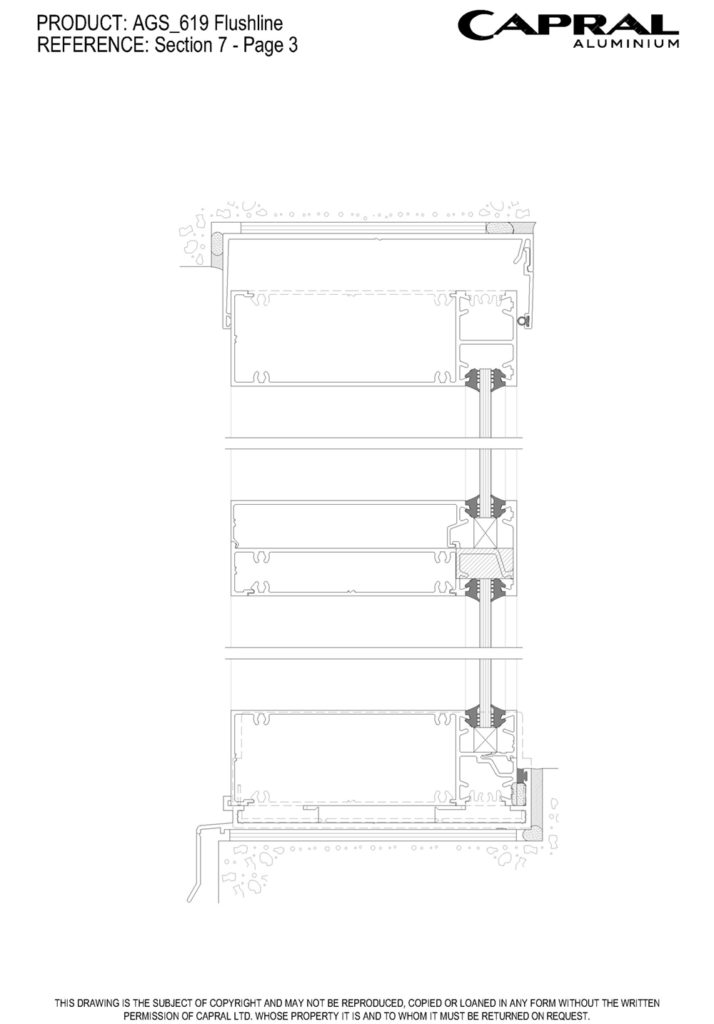

- Reverse installations possible
- Forward-positioned glazing pocket for the flush external finish

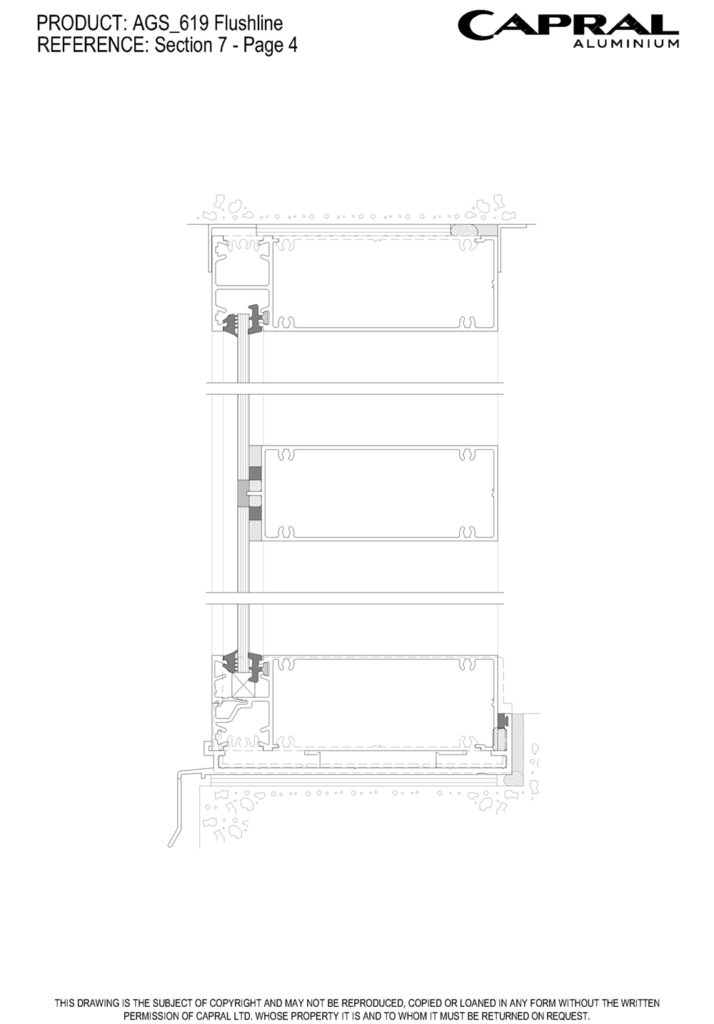

- Structurally glazed mullion options
- A wide range of compatible AGS window and door suites are available
- Spandrel subframe
- Subframe options
- Internal and external beaded options

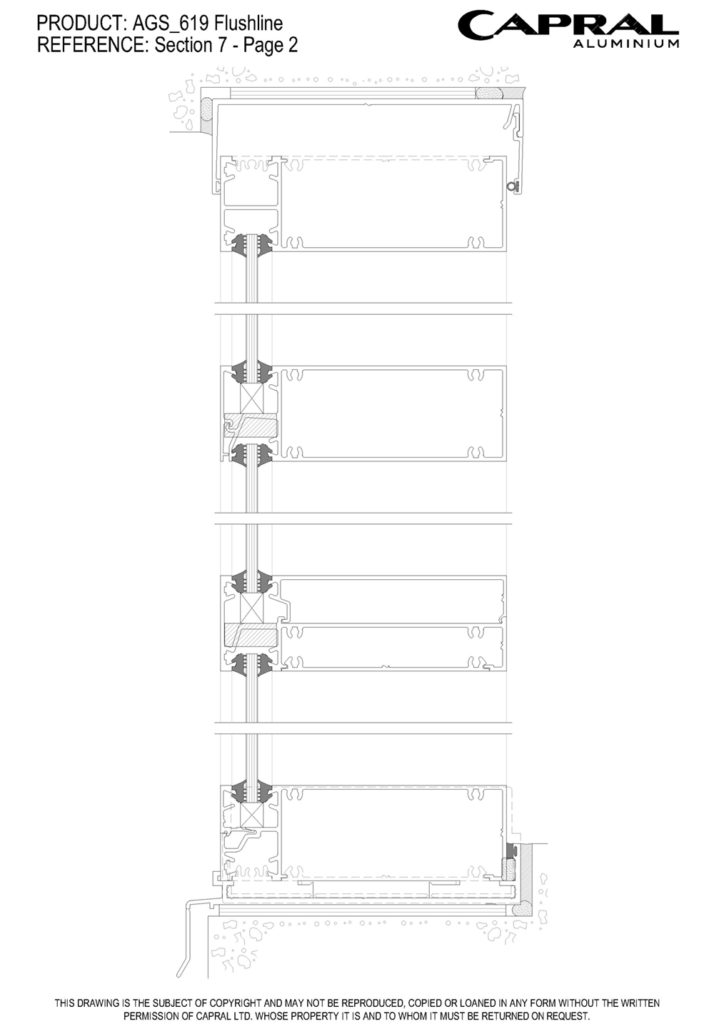

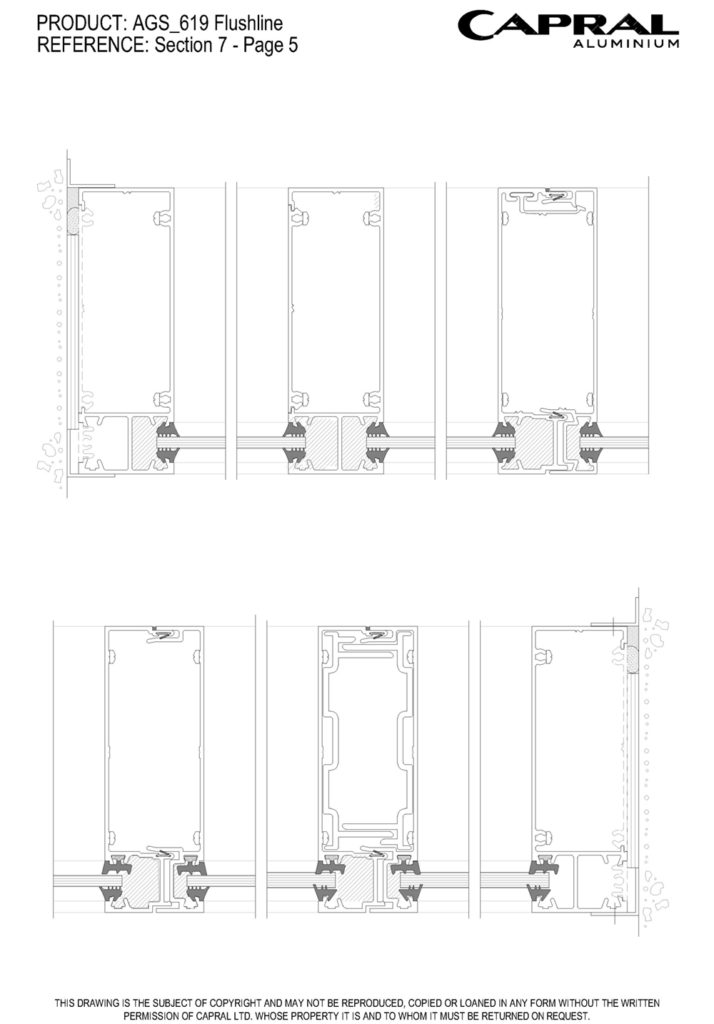

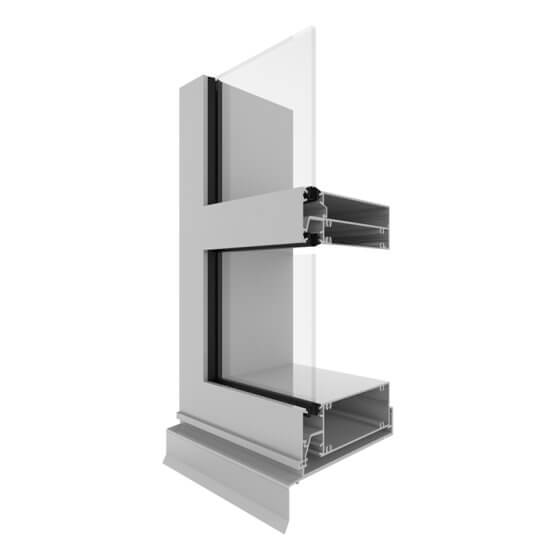

The AGS 619 Flushline is a 150mm, single-glazed, flush-glazed framing system offering a clean and modern external appearance.
The 150mm frame provides additional strength and a striking internal aesthetic popular in commercial office buildings and multi-story apartments. The forward-positioned glazing pocket creates a flush external or internal finish.
The AGS 619 Flushline can incorporate structurally glazed mullion and/or transom profiles and is compatible with several operable door and window options.
Details
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
5000
Panel Width (mm)
2400
Frame Dimensions
Frame depth (mm)
150
Face Width (mm)
50
Acoustic Rating
Rw (C;Ctr)
35 (-1;-3)
Maximum Product Performance
SLS (Pa)
5700
ULS (Pa)
11100
WATER (Pa)
1200
*Acoustic opinion based on AGS 419 Flushline results
Glazing Details
Single Glazed
5 - 12
Energy Performance
Uw Range
4.11 - 6.32
SHGC Range
0.23 - 0.75
Tvw Range
0.08 - 0.80
Air infiltration
0.08 - 0.08
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual AGS 619 Flushline
Technical Manual AGS Sub Frames
Wall Charts
Extrusion Wall Chart AGS 150mm Flushline Framing Systems
Extrusion Wall Chart AGS Speciality Sub Frames
Extrusion Wall Chart AGS Sub Framing
CAD Files
CAD Files AGS 619 Flushline
CAD Files AGS Sub Frames
CAD Wall Chart AGS Flushline Framing
CAD Wall Chart AGS Sub Framing
Bulletins
PB343 - AGS Flushline Relaunch
Other
NATSPEC Branded Work SectionCompatible Products
AGS Commercial 50 Awning SashThe AGS 50 Series window is a high-performance commercial awning window compatible with AGS framing.
AGS Commercial 950 Sliding WindowThe AGS 950 Sliding Window system has been engineered to deliver high strength and performance. It has been tested to cyclonic requirements and can have large sash sizes and numerous configurations.
Artisan 998 Tilt-and-Turn WindowThe Artisan Architectural Tilt & Turn is a multi-functional window and is compatible with the AGS Flushline range of commercial framing products.
Artisan 999 Auto Strut WindowThe Artisan Architectural Automated Strut window is ideal in servery applications with large sashes that open fully to a 90 degree angle.
AGS Commercial 35 Hook Hinge Awning SashThis AGS Commercial Awning Window with Hook Hinge is an operable window sash available for use with AGS commercial framing.
AGS Commercial 35 Awning SashThis AGS Commercial Awning Window is an operable window sash available for use with AGS commercial framing.
AGS Commercial 35 Casement SashThis AGS Commercial Casement Window is an operable window sash available for use with AGS commercial framing.
AGS Commercial 50 Casement SashThe AGS 50 Series window is a high-performance commercial casement window compatible with AGS framing.
AGS Glazing AdaptorsCapral offers a wide range of adaptors that provide glazing options for existing and new structures.
AGS 419 & 619 Flushline Acoustic FramingThe AGS 419 & 619 Flushline Acoustic framing systems have been developed to provide a product where acoustic performance is paramount.
More products from this range
AGS Commercial CW116 116mm Curtain WallThe Capral CW116 Curtain Wall system has been designed as an economical, four-sided, structurally glazed system suitable for small to mid-sized projects. An evolution of the highly successful CW175 Curtain Wall system, the CW116 shares several of its extrusions and design features.
AGS 419 & 619 Flushline Acoustic FramingThe AGS 419 & 619 Flushline Acoustic framing systems have been developed to provide a product where acoustic performance is paramount.
AGS Commercial 50 Awning SashThe AGS 50 Series window is a high-performance commercial awning window compatible with AGS framing.
AGS Commercial 1029 Flushline Double Glazed (250mm)Flushline AGS1029 is the new name for the product formerly known as Flushline419DG 250mm * 55mm
AGS Commercial 900 High Performance Sliding DoorA true commercial sliding door designed for high-traffic areas delivering bold panel sizes and exceptional performance.
Extruded LouvreAn extensive range of extruded louvre blades are available from Capral to cater for various ventilation, shading and aesthetic requirements
AGS Commercial CW175 175mm Curtain WallThe CW175 is targeted at projects where large expanses of glass or high wind loads are demanded
AGS Commercial 225 Pivot DoorThe AGS 225 Pivot Door is a 46mm pocket glazed commercial door panel capable of delivering flexibility, performance and ease of assembly in mind.
Not quite what you’re looking for? Consider...
AGS Commercial 429 Flushline Double Glazed (100mm)Flushline AGS429 is the new name for the product formerly known as Flushline 419DG 100mm x 55mm. This commercial framing system has been developed to accommodate internal and external glazing techniques.
AGS 419 & 619 Flushline Acoustic FramingThe AGS 419 & 619 Flushline Acoustic framing systems have been developed to provide a product where acoustic performance is paramount.
AGS Commercial 419 Flushline Single Glazed (100mm)The AGS 419 Flushline is a 100mm, single glazed, flush-glazed framing system offering a clean and modern external appearance.
AGS Commercial 1029 Flushline Double Glazed (250mm)Flushline AGS1029 is the new name for the product formerly known as Flushline419DG 250mm * 55mm
AGS Commercial 629 Flushline Double Glazed (150mm)Flushline AGS629 is the new name for the product formerly known as Flushline 419DG 150mm x 55mm. This system was developed to accommodate both internal and external glazing.
AGS Commercial 659 Flushline Wide Pocket (150mm)The AGS 659 150mm wide glazed commercial Flushline framing system has been developed to accommodate both internal and external glazing techniques.
Projects that use this system

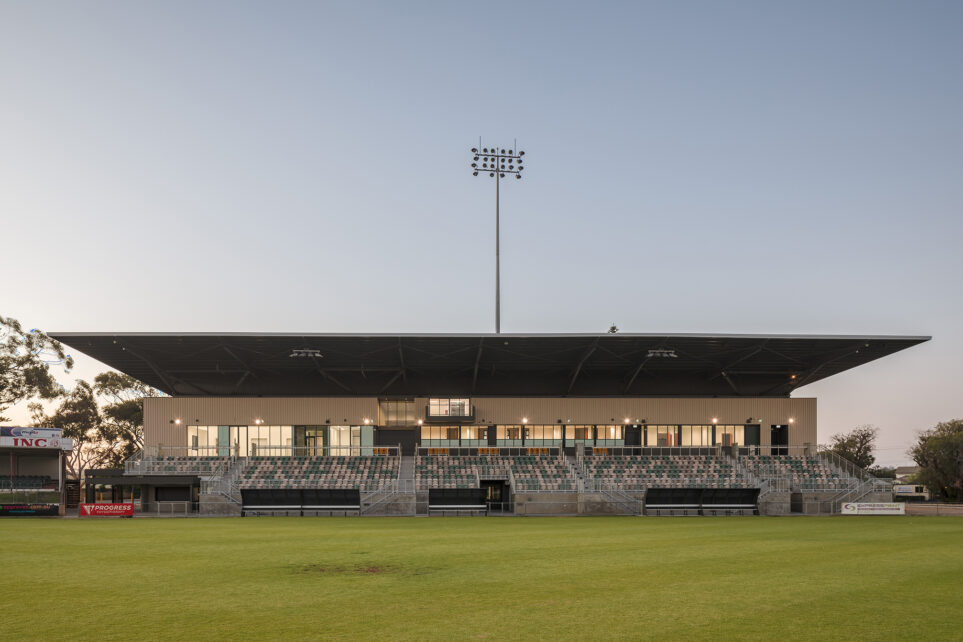

LGA WA Delivers Clear Views at Hands Oval Stadium with Capral Framing Systems
The redevelopment of Hands Oval Stadium in Bunbury features Capral aluminium window and framing systems fabricated by LGA WA to deliver clear sightlines, natural ventilation and acoustic performance.
Stadium
AT238 Adelaide Terrace, Perth
Located in the heart of Perth's historical hub is Perth's newest luxury apartment living complex. All Capral framing elements were locally supplied, resulting in confidence in supply and greater flexibility during construction. In this prestigious apartment development, Capral’s advanced framing systems have proved a decisive element.
Apartments and Multi-residential Buildings Efficiency and Comfort

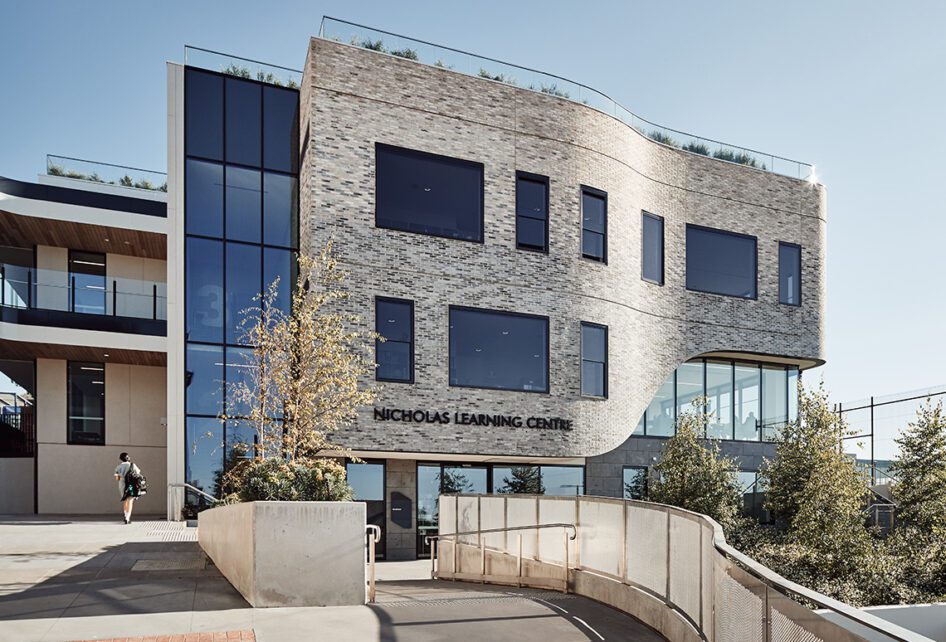

MLC Nicholas Learning Centre
