    AGS Commercial 50 Awning Sash

    The AGS 50 Series window is a high-performance commercial awning window compatible with AGS framing.

    Download Brochure WERS Rating
    Residential Commercial
    Declare Label
    Certified
    Acoustic
    Rated
    Automation
    Image Gallery Key Features Details Downloads Compatible Products More Products
    Jump to:
    Select

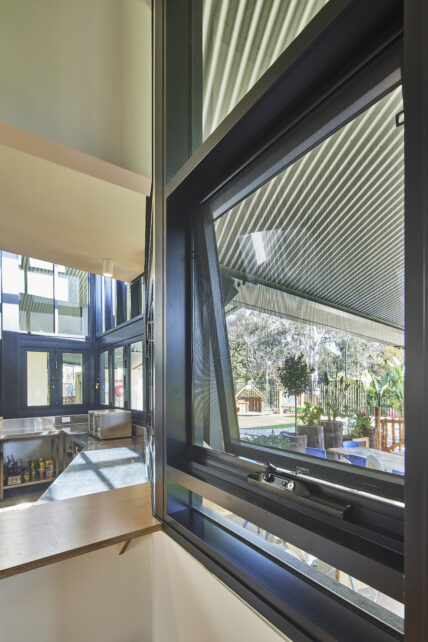

    outside close us of capral aluminium window system
    Capral's Door shown in the north sydney pool
    careel head road avalong nsw capral aluminium windows and doors
    Boon Residence | Capral Aluminium Pool Area
    outside close us of capral aluminium window system
    Capral's Door shown in the north sydney pool
    careel head road avalong nsw capral aluminium windows and doors
    Boon Residence | Capral Aluminium Pool Area
    Key features
    • Range of framing options
    • Single, thick and double-glazing options
    • Incorporates rain-screen design principles for improved performance
    • A high degree of design flexibility
    • Compatible with a range of AGS Commercial and Artisan Architectural suites

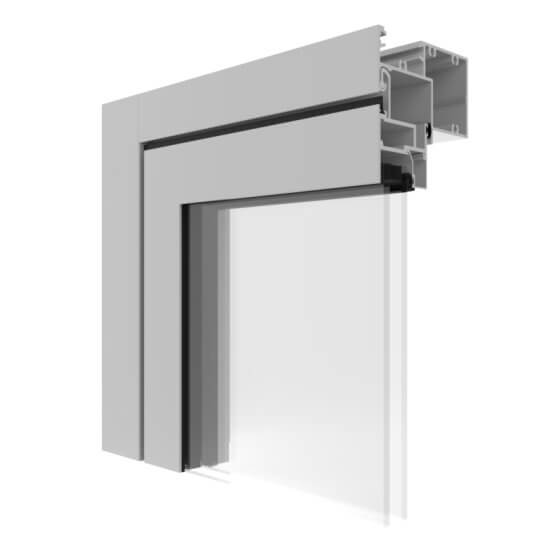

    The AGS 50 Series window is a high-performance commercial awning window compatible with AGS framing systems.
    The AGS 50 Series window may be fabricated into several different frame types, allowing for various applications.
    The 50 Series window accepts thick and double-glazing options up to 38mm for enhanced thermal comfort and performance.

    Download Brochure

    Details

    Product Specs

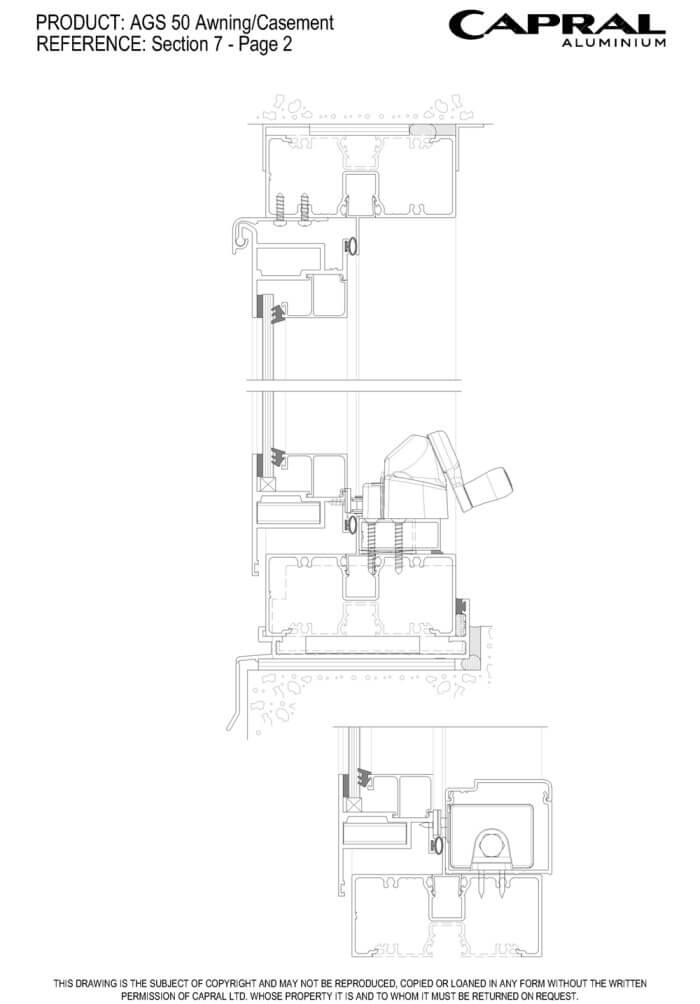

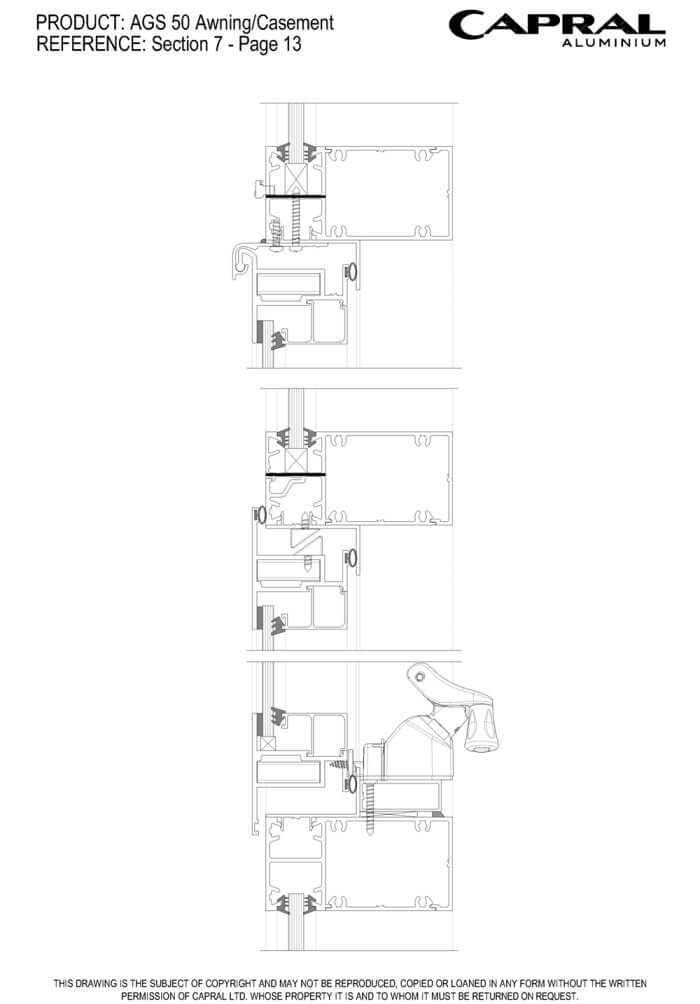

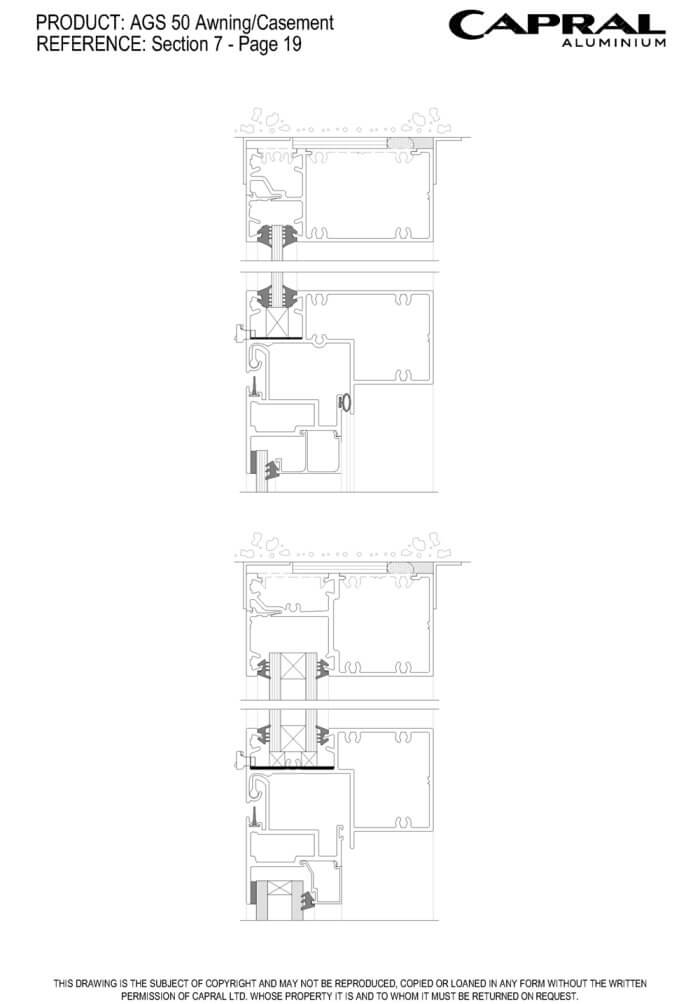

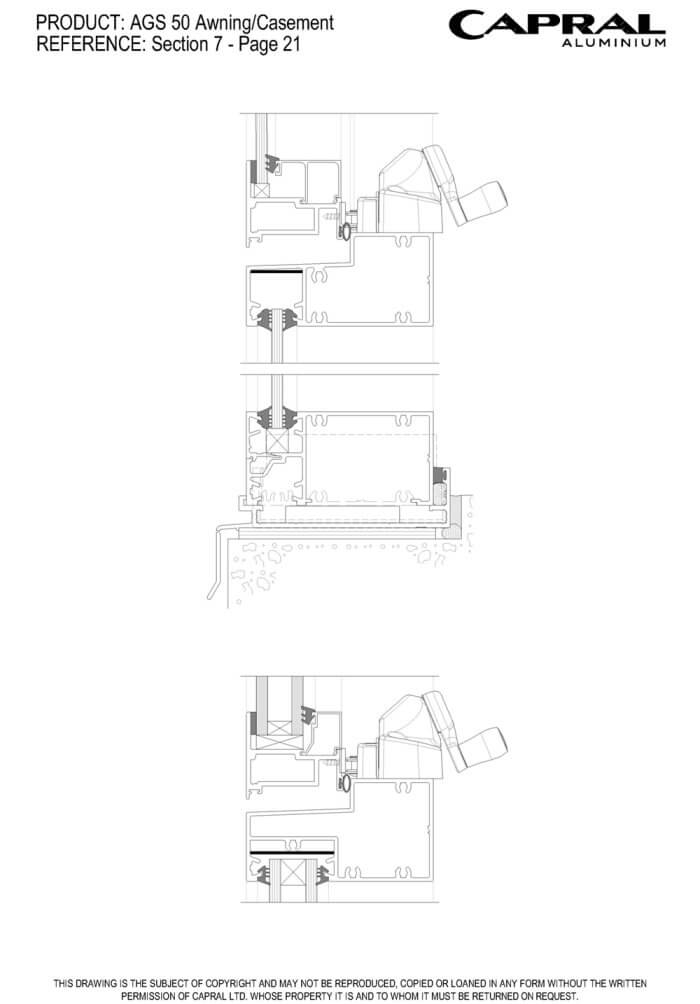

    Configurations
    Arrangements

    Maximum Product Sizes

    Panel Height (mm) 1800
    Panel Width (mm) 1500
    Panel Weight (kg) 60
    Panel Area (m2) 2.7

    Hinge Sash dimensions shown. Refer to the technical manual for stay sash limitations

    Frame Dimensions

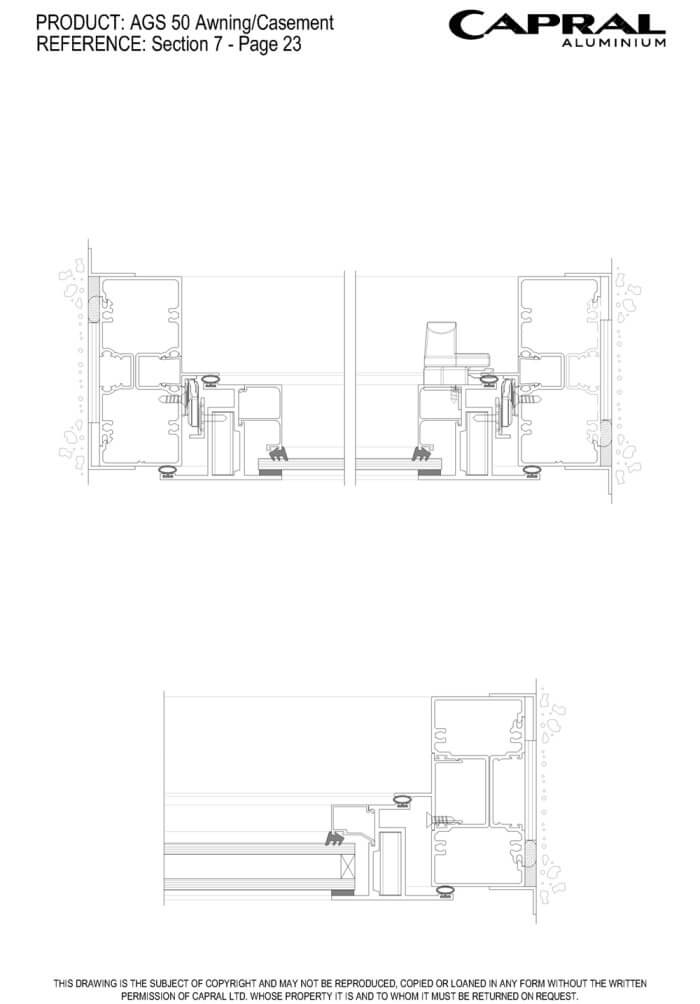

    Narrowline 76, 101.6, or 150

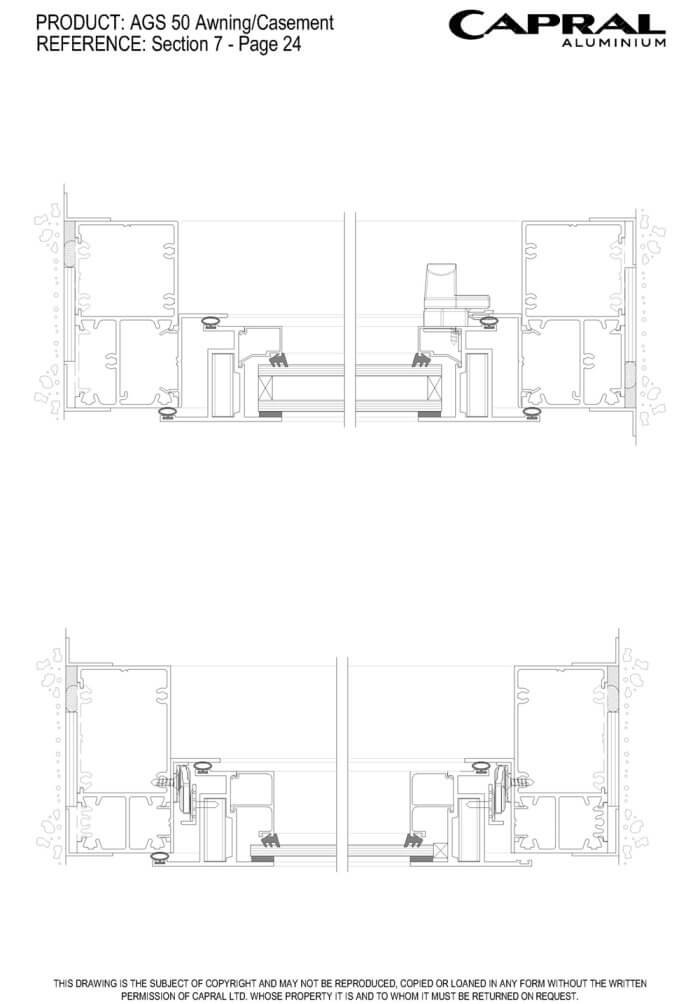

    Flushline 100, 150 or 250

    Acoustic Rating

    Rw (C;Ctr) 41 (-1;-5)

    Maximum Product Performance

    SLS (Pa) 1750
    ULS (Pa) 3750
    WATER (Pa) 1000

    Glazing Details

    Single Glazed 4 - 12
    Double Glazed 24 - 40

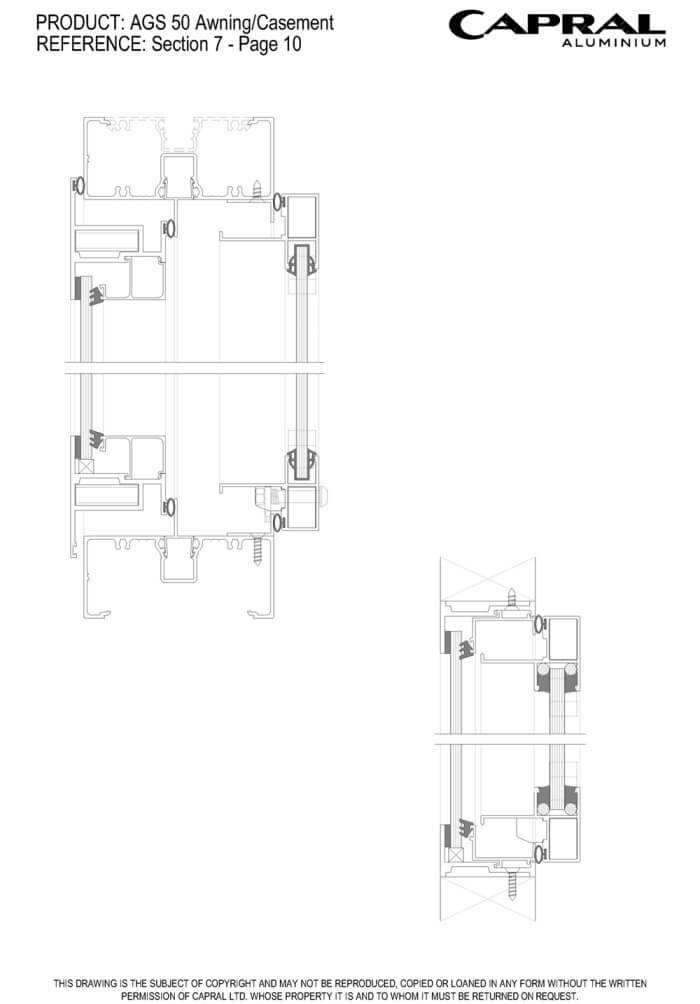

    Single glazed Jockey Sash option available accepting 5mm & 6mm glass

    Energy Performance

    Uw Range 4.24 - 6.95
    SHGC Range 0.15 - 0.51
    Tvw Range 0.05 - 0.50
    Air infiltration 0.56 - 0.56
    WERS Rating
    Residential Commercial

    Downloads

    Technical Documents, CAD & Revit
    Other
    Technical Manuals
    Technical Manual AGS 50 Awning & Casement Window
    Technical Manual AGS Sub Frames
    Wall Charts
    Extrusion Wall Chart AGS Projecting Windows
    Extrusion Wall Chart AGS Speciality Sub Frames
    Extrusion Wall Chart AGS Sub Framing
    Extrusion Wall Chart Capral Screening
    BIM Files
    Revit AGS Commercial 50 Awning Sash
    Revit Capral Subframes
    CAD Files

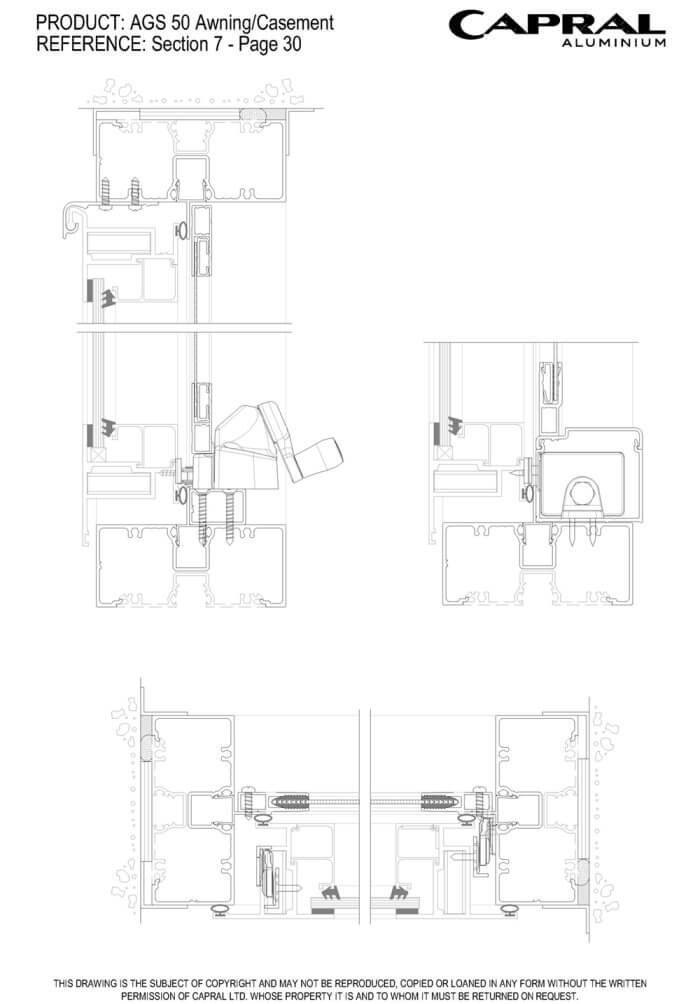

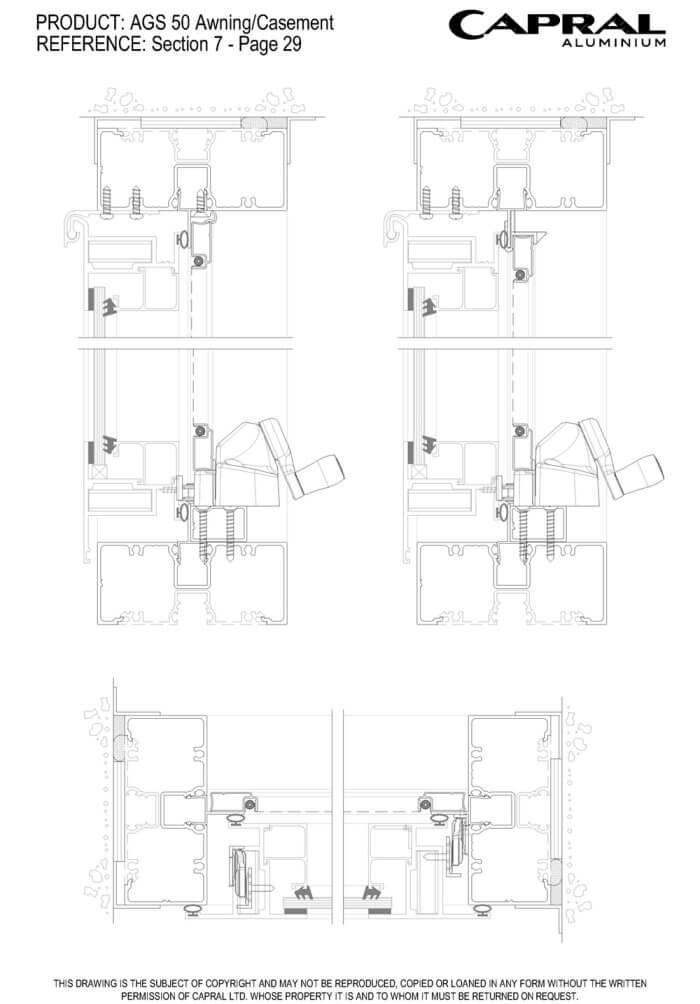

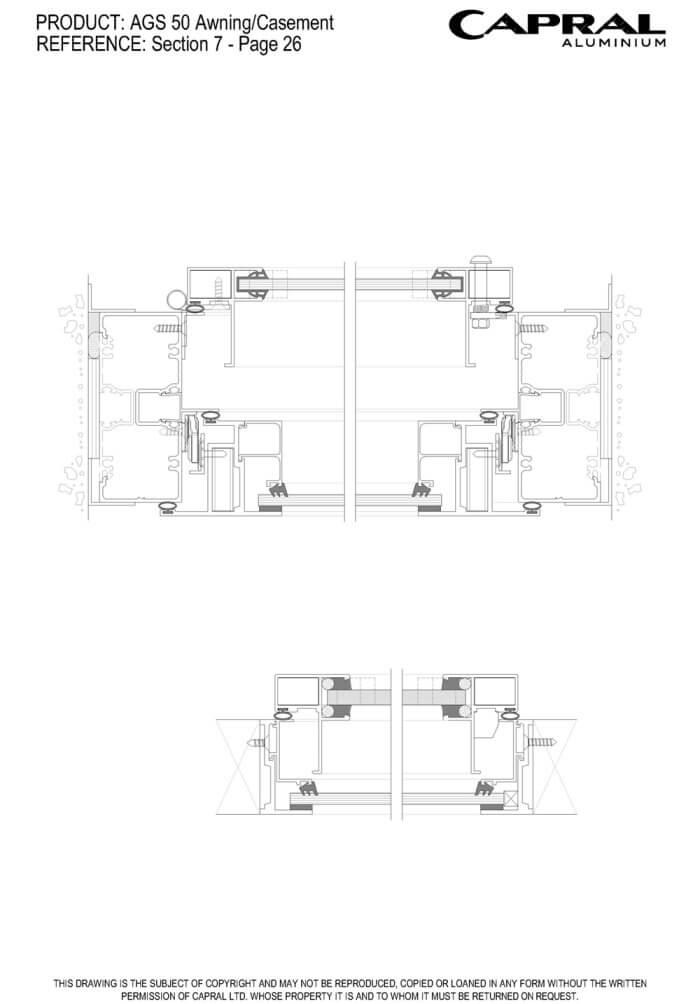

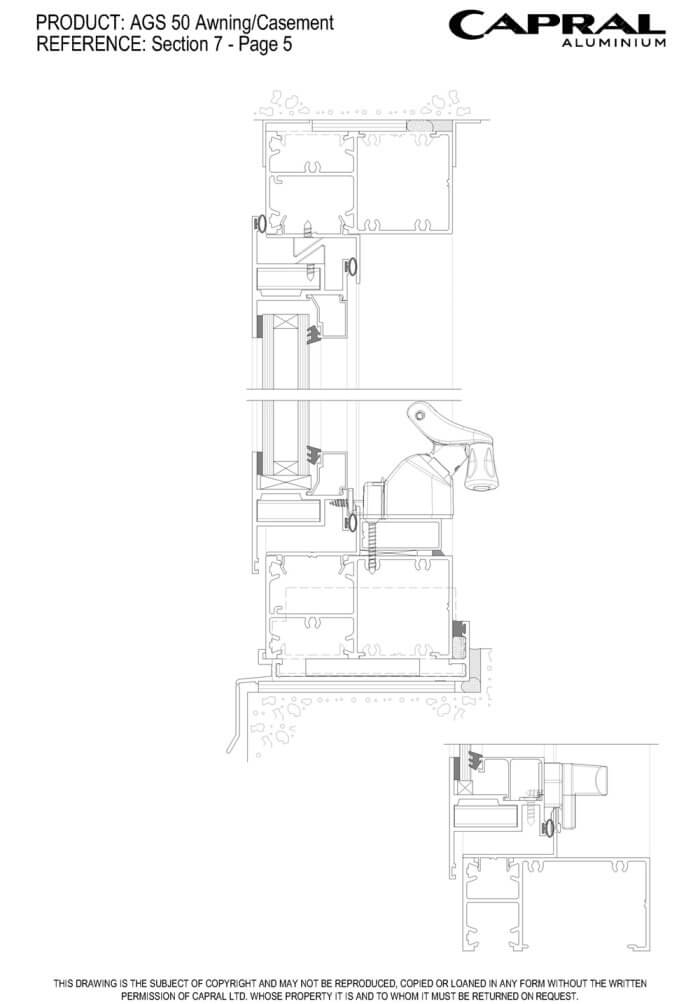

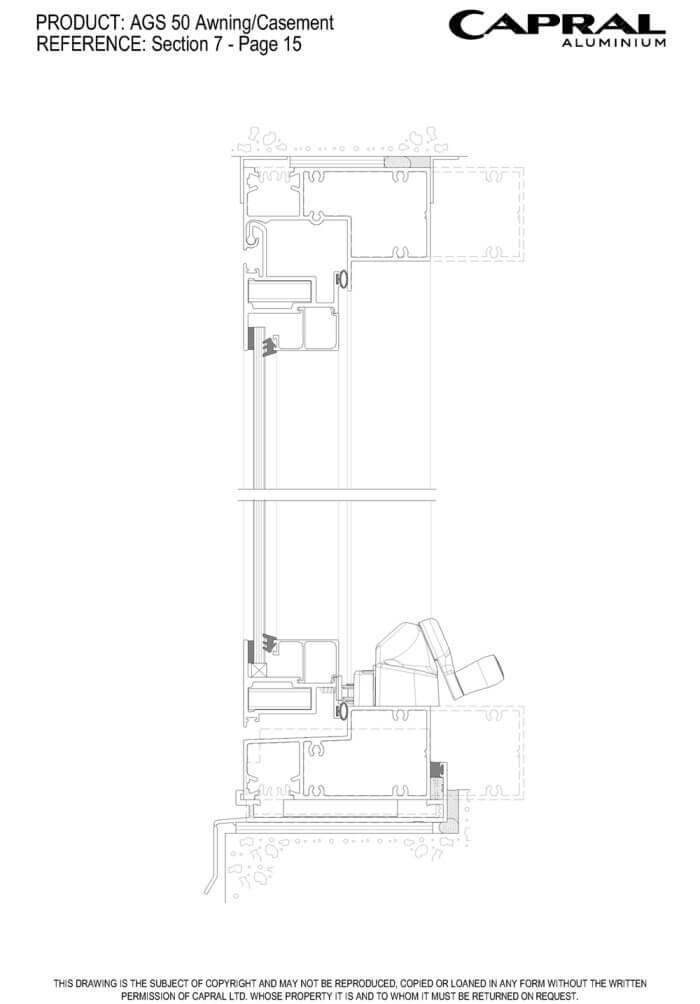

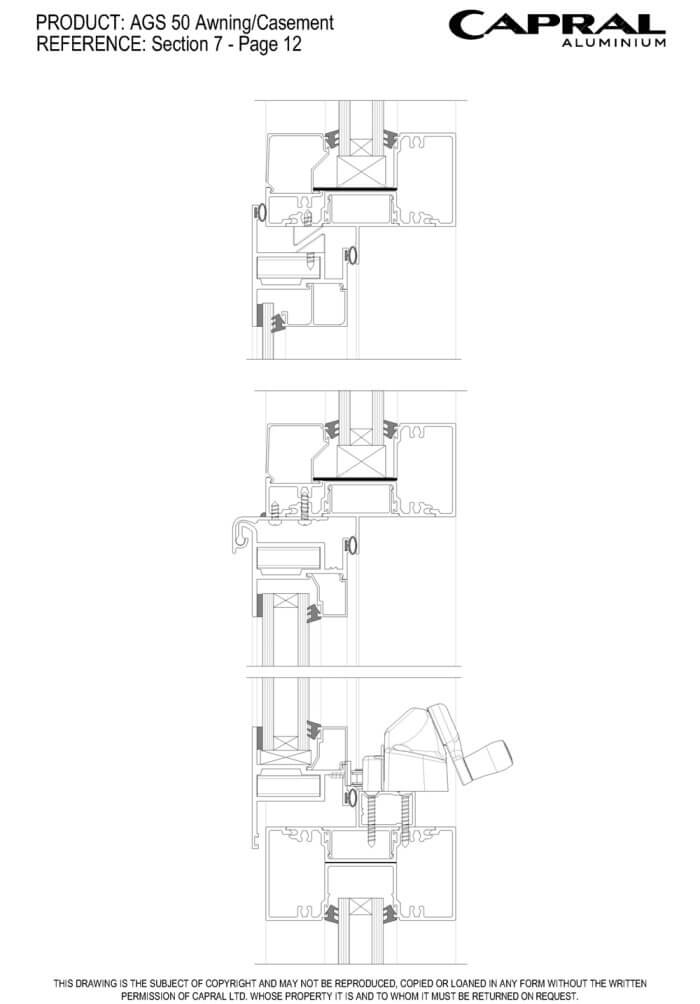

    CAD Files AGS 50 Awning & Casement Window
    CAD Files AGS Sub Frames
    CAD Files Capral Screening
    CAD Wall Chart AGS Sub Framing
    CAD Wall Chart Capral Screening
    Bulletins
    PB421-Hook Hinge End Cap - AGS 35 and AGS 50
    PB20210202 - February Documentation Updates
    Other
    Capral_ArchitecturalSeries_Whitepaper Capral AGS 50 Awning Window Brochure Capral AGS 50 Awning Window Technical Manual Specification AGS 50 Awning & Casement Window Capral Installation Details
    NATSPEC Branded Work Section
    Environmental Protection Declaration (EPDs)
    EPD-IES-0031050:001 LocAl Version: 1 (2026-05-28)
