AGS Commercial 499 Strut Window

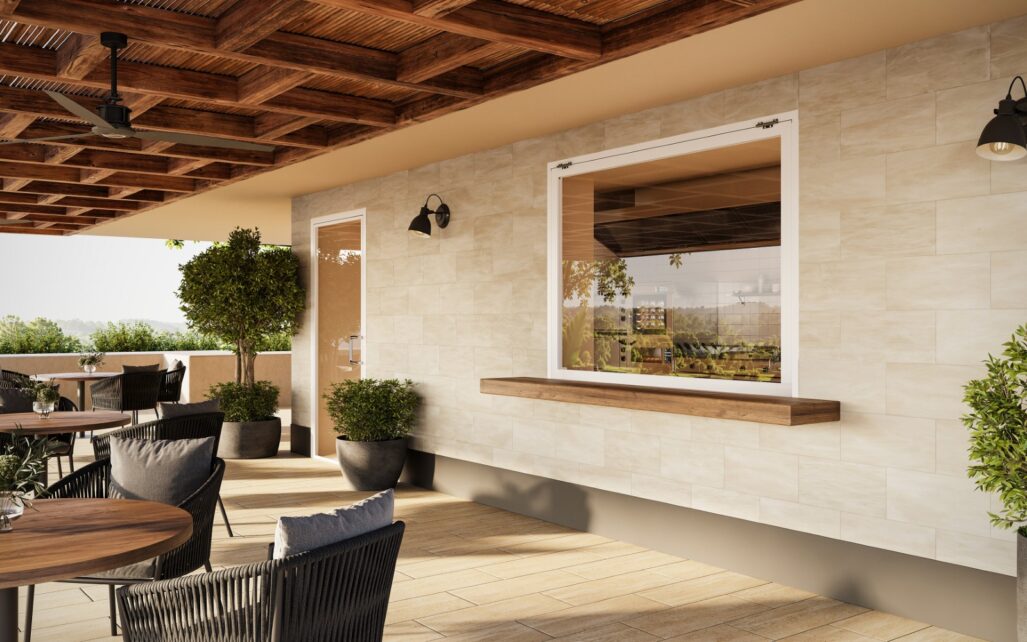

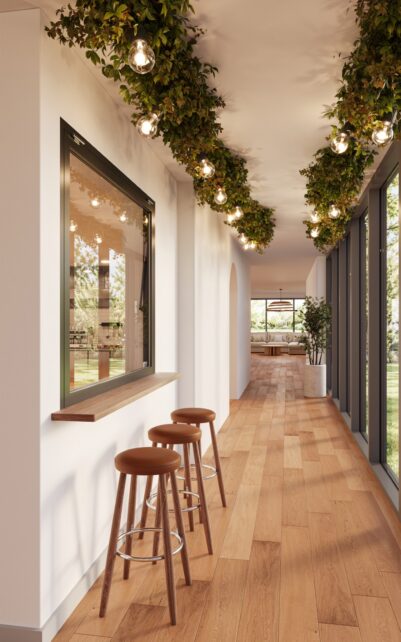

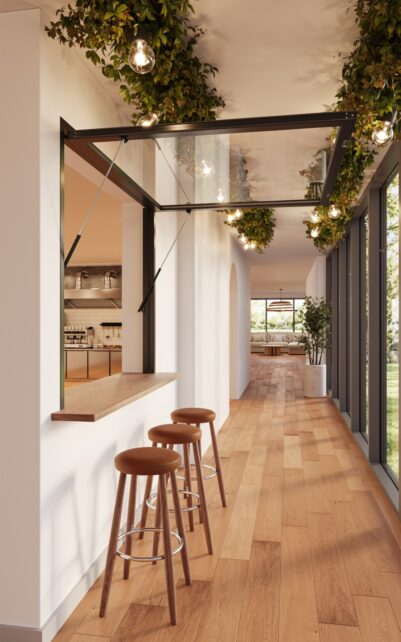

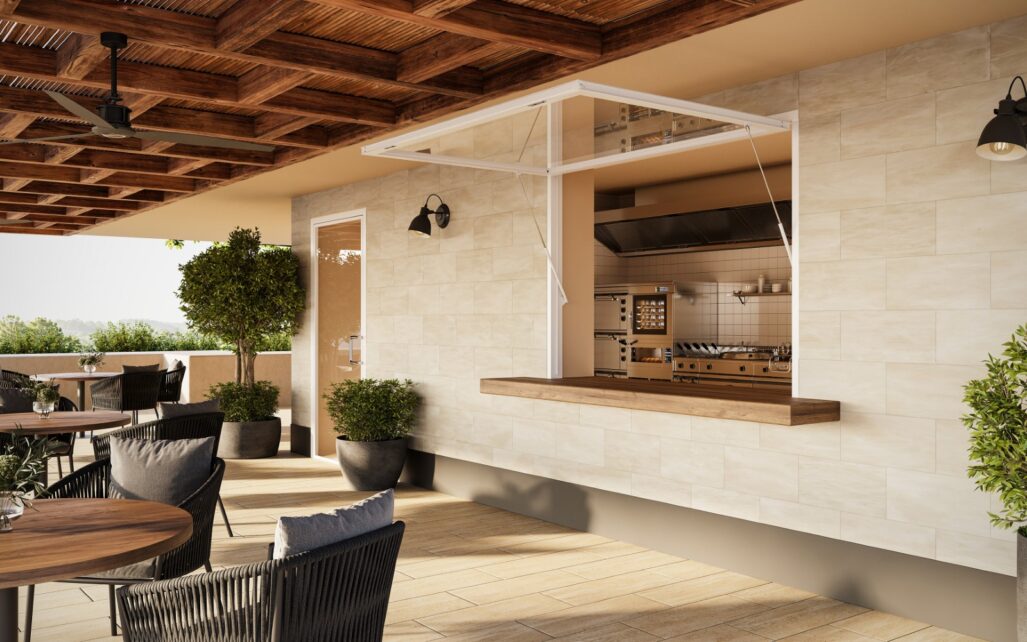

The AGS 499 Gas Strut Window is ideal in servery applications, designed to maximise functionality, airflow and convenience.
Key features
- Can be fully integrated with the AGS 400 & 425 Narrowline Framing Systems

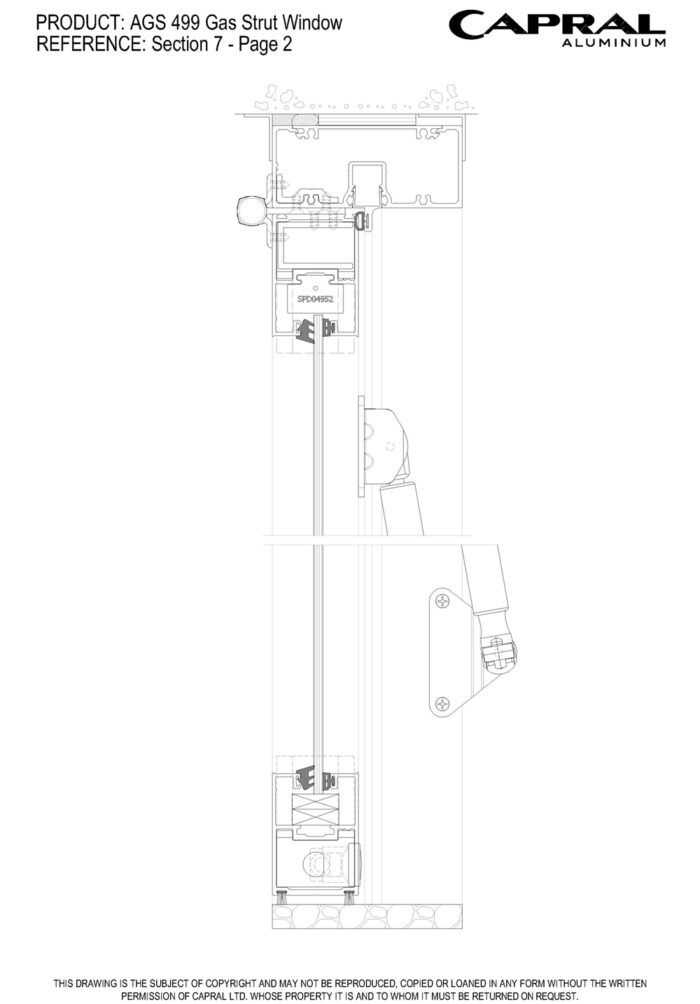

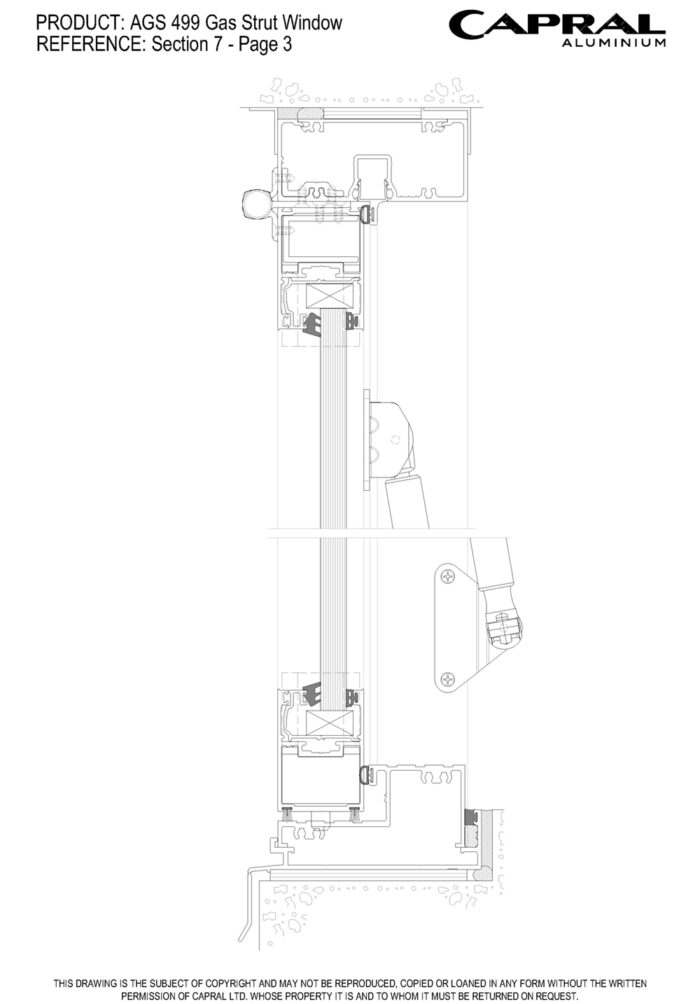

- Configurable with a water rated threshold or non-water rated sill-less design

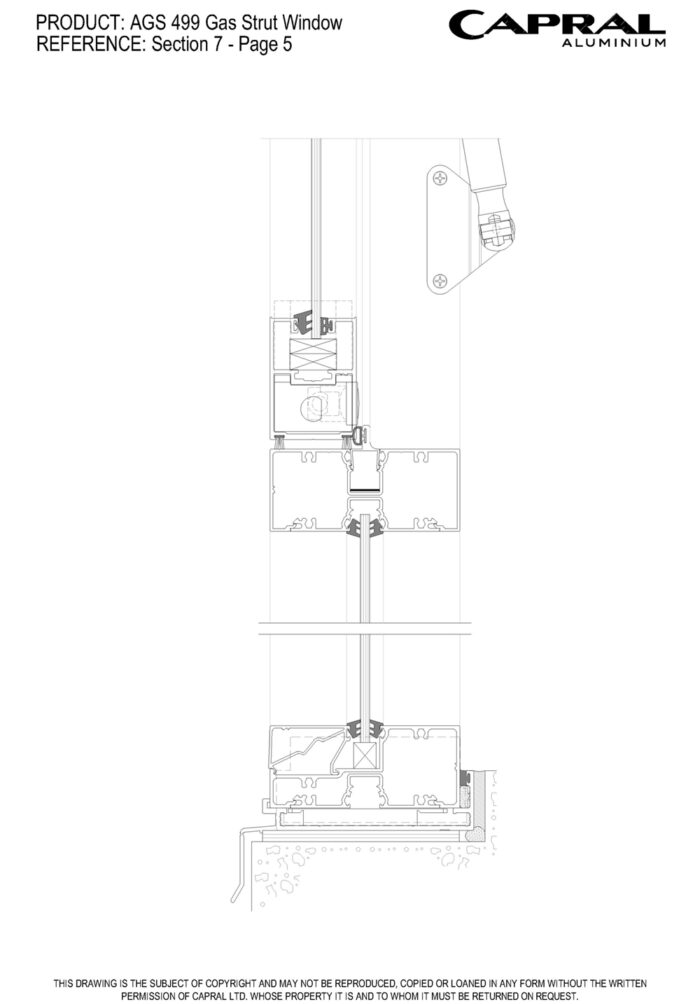

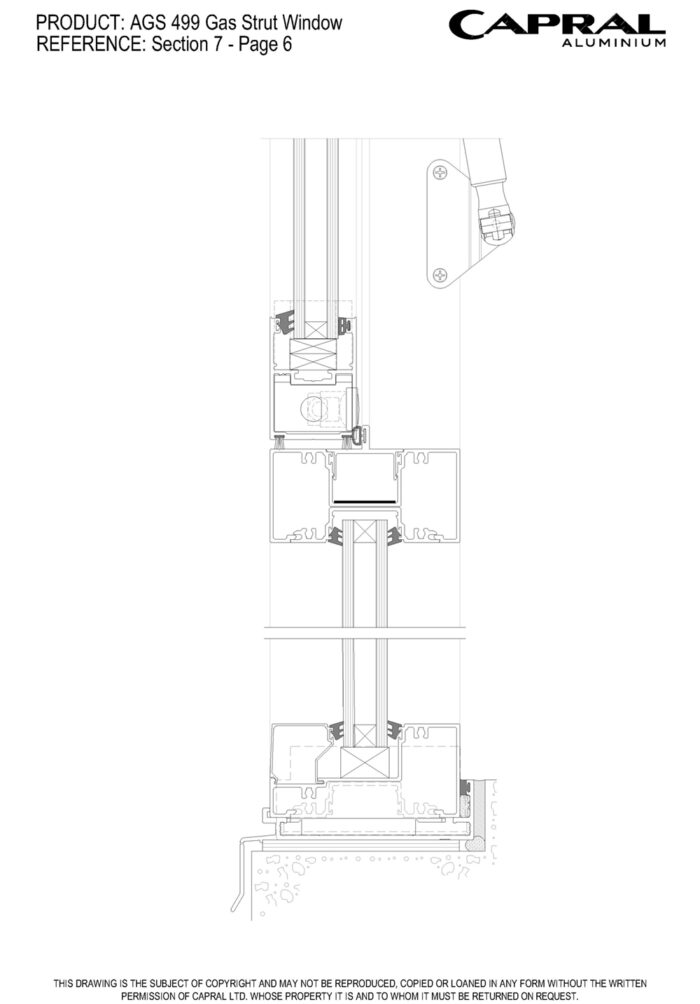

- Low lights or side lights available

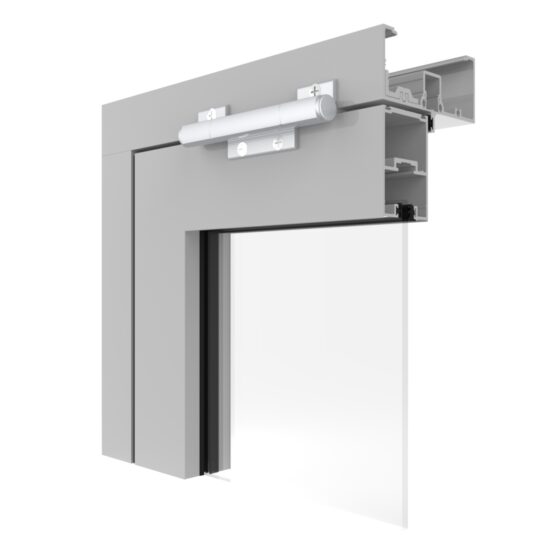

- Mitred corners result in a visually clean operable sash with no unsightly voids for spiders
- Compatible with Capral’s Caprice Flushbolts
The AGS 499 Gas Strut Window is ideal in servery applications, designed to maximise functionality, airflow and convenience. Its clean mitred corners provide a stylish finish while ensuring no creepy crawlies can take residence in the frame.
The AGS Gas Strut Window is configurable with or without a sill and can be fully integrated with the AGS 400 & 425 Narrowline Framing Systems.
Details
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
1500
Panel Width (mm)
2100
Panel Weight (kg)
75
Frame Dimensions (mm)
Frame depth (mm)
101.6
Maximum Product Performance
SLS (Pa)
1000
ULS (Pa)
6000
WATER (Pa)
450*
*Water rating with Threshold Sill only
Glazing Details
Single Glazed
4 - 12
Double Glazed
19 - 31
Thick Glazed
14 - 18
Energy Performance
Uw Range
5.3 - 6.5
SHGC Range
0.33 - 0.52
Tvw Range
0.23 - 0.52
Air infiltration
0.09 - 0.09
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual AGS 499 Gas Strut Window
Technical Manual AGS Sub Frames
Wall Charts
Extrusion Wall Chart AGS Projecting Windows
Extrusion Wall Chart AGS Speciality Sub Frames
Extrusion Wall Chart AGS Sub Framing
CAD Files
CAD Files AGS 499 Gas Strut Window
CAD Files AGS Sub Frames
CAD Wall Chart AGS Sub Framing
CAD Wall Chart Capral Screening
Bulletins
PB412 - AGS 499 Gas Strut Window
