AGS Commercial 450 Narrowline Wide Pocket (101.6mm)

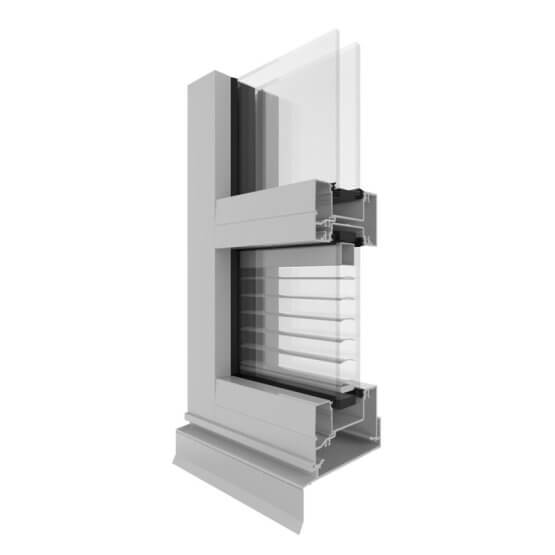

The AGS 450 Narrowline has been designed with extra wide glazing pockets to accept double-glazed units with internal Venetian blinds
Certified
Tested
Key features
- Dedicated wide pocket double-glazed 101.6mm x 55mm centre-glazed frame

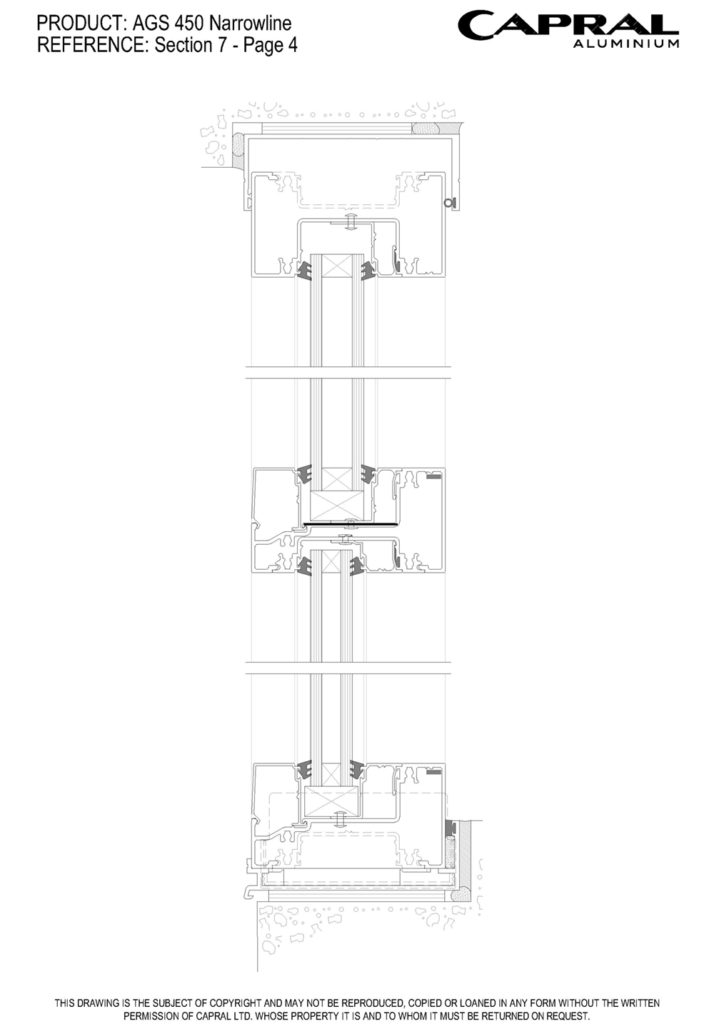

- The glazing pocket accepts 31 to 44mm glass or 12 to 31mm using inlay beads
- Ideal for health projects where double glazed Venetians have been specified
- Suits most commercial or architectural applications requiring improved thermal characteristics
- Captive glazing wedge options for more accessible on-site glazing
- Supports various glass thicknesses with the use of an adaptor
- Sub-frame options
- Compatible door and window suites are available
- Internal and externally beaded options
The AGS 450 Narrowline has been designed with extra wide glazing pockets to accept double-glazed units with internal Venetian blinds commonly used in health projects, extra thick glazing specified due to impact requirements or triple glazing for increased energy efficiency requirements.
Accepting glazing up to an impressive 44mm wide or down to a standard 12mm with the addition of inlay beads, the AGS 450 Narrowline offers excellent flexibility if necessary.

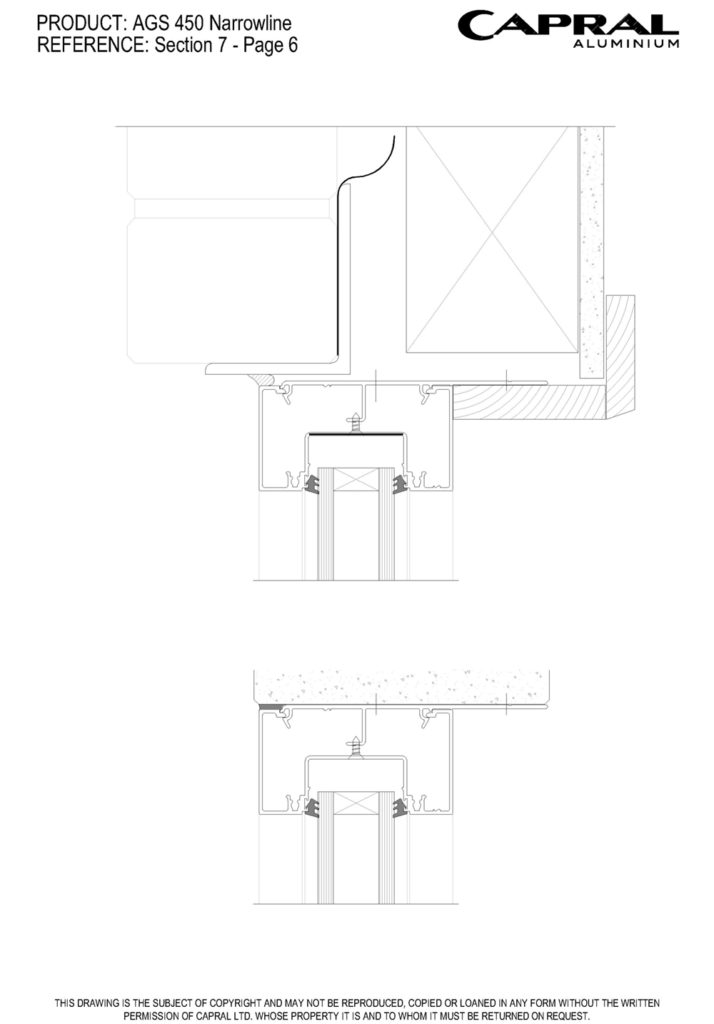

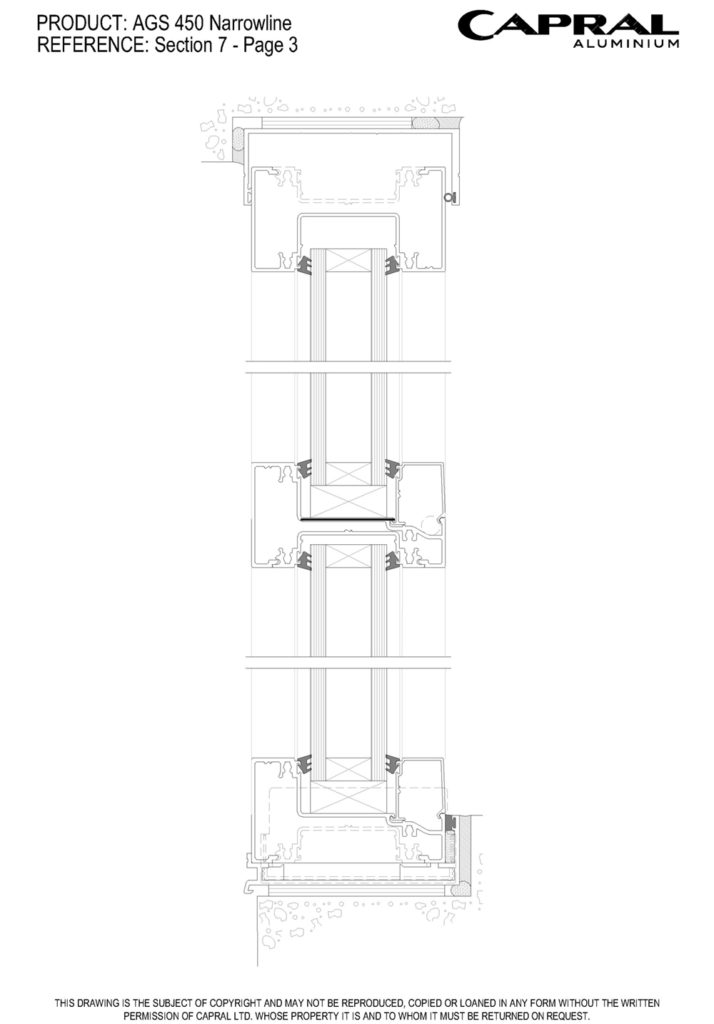

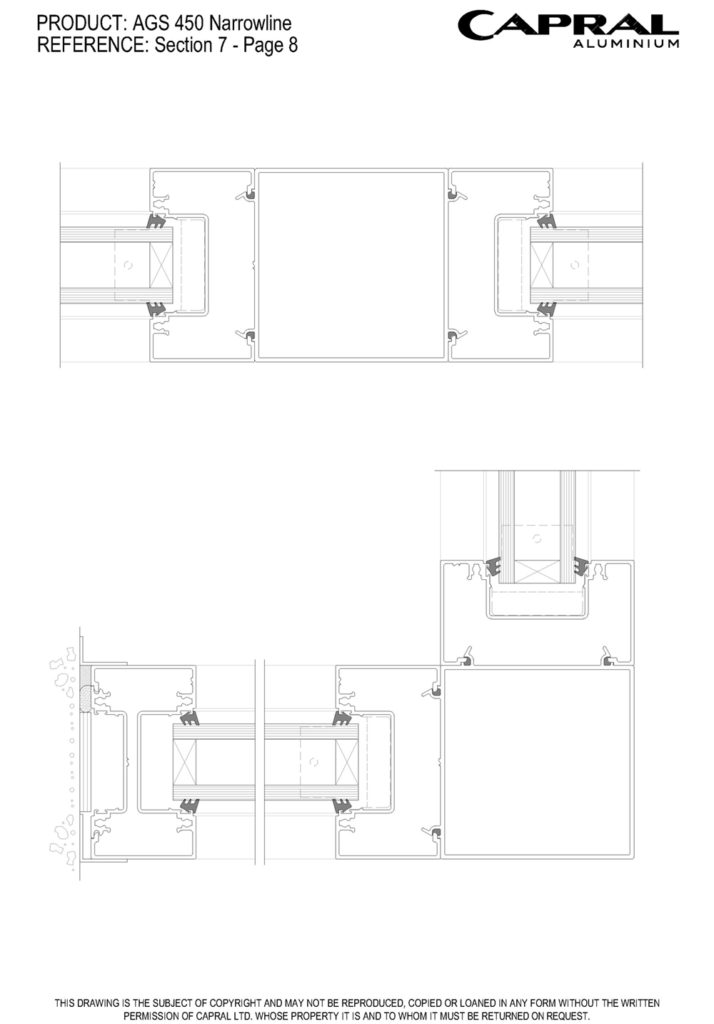

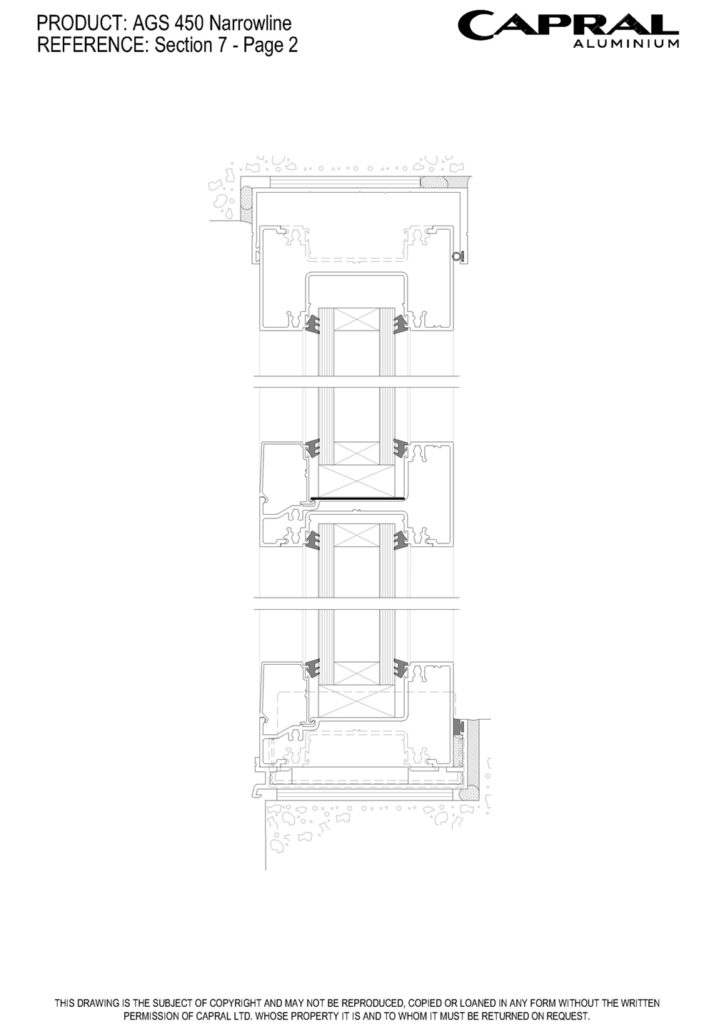

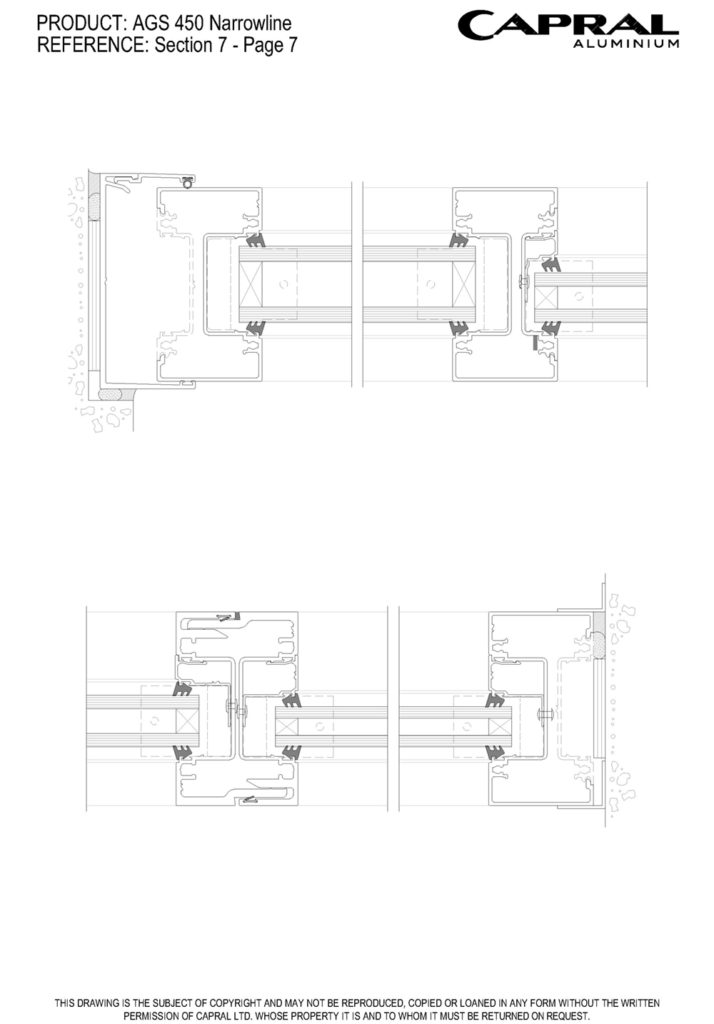

Details
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
4000
Panel Width (mm)
2400
Frame Dimensions
Frame depth (mm)
101.6
Face Width (mm)
55
Maximum Product Performance
SLS (Pa)
4500
ULS (Pa)
10000
WATER (Pa)
900
Glazing Details
Double Glazed
18 - 44
Thick Glazed
12 - 18
12mm - 31mm glazing is with the use of adaptors
Energy Performance
Uw Range
1.73 - 3.47
SHGC Range
0.12 - 0.58
Tvw Range
0.05 - 0.71
Air infiltration
0.2 - 0.2
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual AGS 450 Narrowline
Technical Manual AGS Sub Frames
Wall Charts
Extrusion Wall Chart AGS Narrowline Framing Systems
Extrusion Wall Chart AGS Speciality Sub Frames
Extrusion Wall Chart AGS Sub Framing
Revit AGS Narrowline Framing
CAD Files
CAD Files AGS 450 Narrowline
CAD Files AGS Sub Frames
CAD Wall Chart AGS Narrowline Framing
CAD Wall Chart AGS Sub Framing
Bulletins
PB467 - Head Flashings
PB337 - AGS Narrowline Relaunch
PB257 - 9mm Glazing Wedge
Other
Capral_ArchitecturalSeries_Whitepaper
Capral AGS 450 Narrowline Brochure
Specification AGS 450 Narrowline
Capral Installation Details
Environmental Protection Declaration (EPDs)
Compatible Products
Artisan 996 Folding DoorThe Artisan aluminium folding door incorporates a technologically advanced folding door system that surpasses that of ordinary aluminium folding doors.
Artisan 996 Quik Folding DoorThe Artisan Architectural Quik Folding Door has smooth top rolling panels and allows for convenient use of floor space - open wide for uninhibited access when entertaining and close for protection from the elements.
AGS Commercial 50 Awning SashThe AGS 50 Series window is a high-performance commercial awning window compatible with AGS framing.
AGS Commercial 35 Awning SashThis AGS Commercial Awning Window is an operable window sash available for use with AGS commercial framing.
AGS Commercial 35 Casement SashThis AGS Commercial Casement Window is an operable window sash available for use with AGS commercial framing.
AGS Commercial 50 Casement SashThe AGS 50 Series window is a high-performance commercial casement window compatible with AGS framing.
AGS Commercial 900 High Performance Sliding DoorA true commercial sliding door designed for high-traffic areas delivering bold panel sizes and exceptional performance.
AGS Commercial Louvre AdaptorThe AGS Commercial Louvre Adaptor gives you the flexibility you need to create a high-performance louvre window with a clean architectural finish.
More products from this range
AGS Commercial 619 Single Glazed (150mm)Flushline AGS619 is the new name for the product formerly known as Flushline 419SG 150mm x 50mm. The AGS 619 Flushline offers a clean and modern external appearance.
AGS Commercial 380 Sliding Window (76mm)The AGS 380 Sliding Window incorporates the features and flexibility of a residential window system into the commercial grade AGS 300/325 Narrowline framing systems.
AGS Commercial 429 Flushline Double Glazed (100mm)Flushline AGS429 is the new name for the product formerly known as Flushline 419DG 100mm x 55mm. This commercial framing system has been developed to accommodate internal and external glazing techniques.
Extruded LouvreAn extensive range of extruded louvre blades are available from Capral to cater for various ventilation, shading and aesthetic requirements
AGS Commercial 600 Narrowline Single Glazed (150mm)The AGS 600 Narrowline offers an increased level of structural Performance than the AGS 400 Narrowline with its bolder 150mm frame depth and increased 50mm face dimension.
AGS Commercial 419 Flushline Single Glazed (100mm)The AGS 419 Flushline is a 100mm, single glazed, flush-glazed framing system offering a clean and modern external appearance.
AGS 419 & 619 Flushline Acoustic FramingThe AGS 419 & 619 Flushline Acoustic framing systems have been developed to provide a product where acoustic performance is paramount.
AGS Commercial 488 Tilt-and-Turn WindowThe AGS Tilt & Turn window is flexible in form and function and compatible with our AGS Narrowline range of commercial framing products.
Not quite what you’re looking for? Consider...
AGS Commercial 300 Narrowline Single Glazed (76mm)The AGS 300 Narrowline’s slimline frame depth makes it ideal for lowrise commercial applications
AGS Commercial 650 Narrowline Wide Pocket (150mm)The AGS 650 Narrowline framing boasts extra-wide glazing pockets, making it ideal for various applications.
AGS Commercial 425 Narrowline Double Glazed (101.6mm)The AGS 425 Narrowline framing system was developed specifically to cater for the growing requirement for energy-efficient double glazing.
AGS Commercial 600 Narrowline Single Glazed (150mm)The AGS 600 Narrowline offers an increased level of structural Performance than the AGS 400 Narrowline with its bolder 150mm frame depth and increased 50mm face dimension.
AGS Commercial 325 Narrowline Double Glazed (76mm)The AGS 325 Narrowline double-glazed aluminium framing system's slimline frame depth and ability to accommodate a captive glazing wedge make it an economical option for architectural projects.
AGS Commercial 625 Narrowline Double Glazed (150mm)The AGS 625 Narrowline offers an increased level of structural performance than the AGS 425 Narrowline with its bolder 150mm frame depth and increased 50mm face dimension.
SGS Commercial 400 Narrowline Single Glazed (100mm) (QLD Only)The SGS 400 Narrowline framing system redefines the standard for centre-glazed framing.
AGS Commercial 601 Narrowline Offset Single Glazed (150mm)The AGS 601 Narrowline framing system delivers increased structural performance with the 150mm frame depth while maintaining a typical external appearance.
Projects that use this system

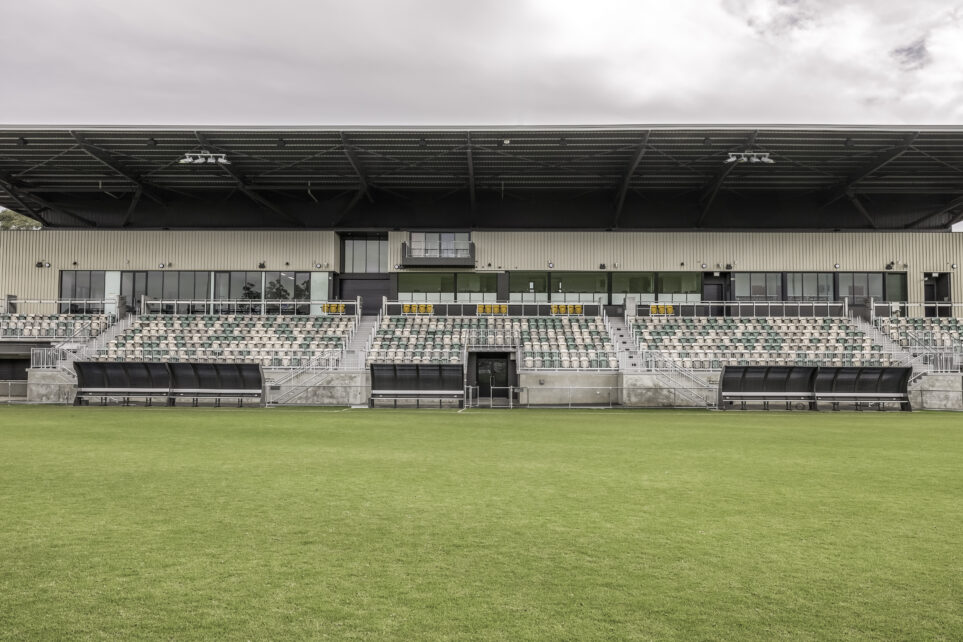

LGA WA Delivers Clear Views at Hands Oval Stadium with Capral Framing Systems
