    Home Our Systems Front Glazed (Flushline) Framing Systems AGS Commercial 419 Flushline Single Glazed (100mm)

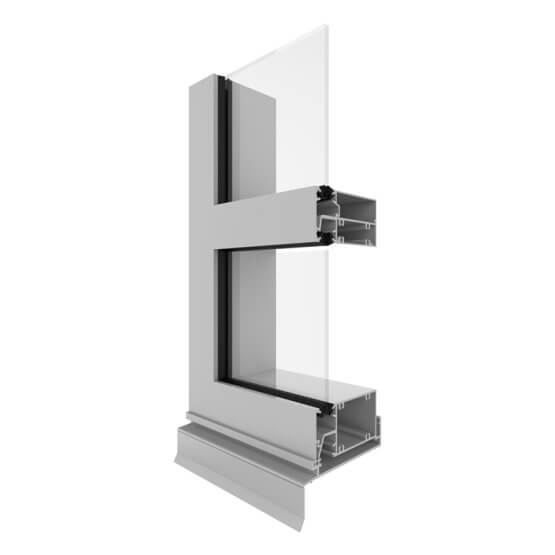

    Capral's AGS Commercial 419 Flushline Slingle Glazed (100mm) Corner Image.
    Commercial

    AGS Commercial 419 Flushline Single Glazed (100mm)

    The AGS 419 Flushline is a 100mm, single glazed, flush-glazed framing system offering a clean and modern external appearance.

    Download Brochure WERS Rating
    Residential Commercial
    Declare Label
    Certified
    Acoustic
    Rated
    Cyclone Impact
    Tested
    BAL 40
    Tested
    Image Gallery Key Features Details Downloads Compatible Products More Products
    Jump to:
    Select
    Shoreline Residence lounge/ living 4oom 419 flushline single glazed
    Bruce Gordon Centre St George Main Entrance Featuring AGS 629 Flushline Double Glazed (150mm) Framing System

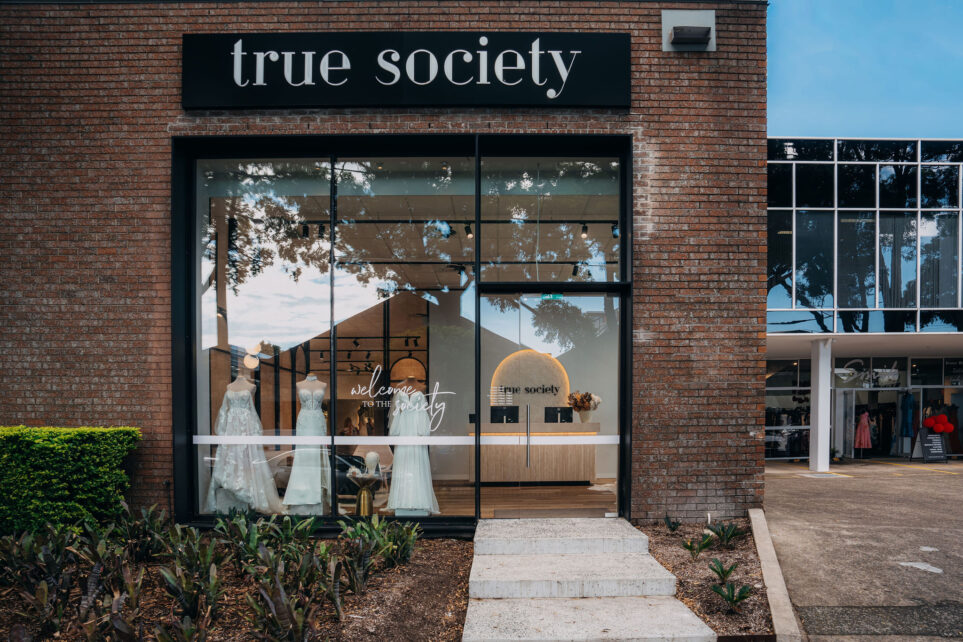

    Caprals 419 framing system shown at the front of a boutique with the external hood added

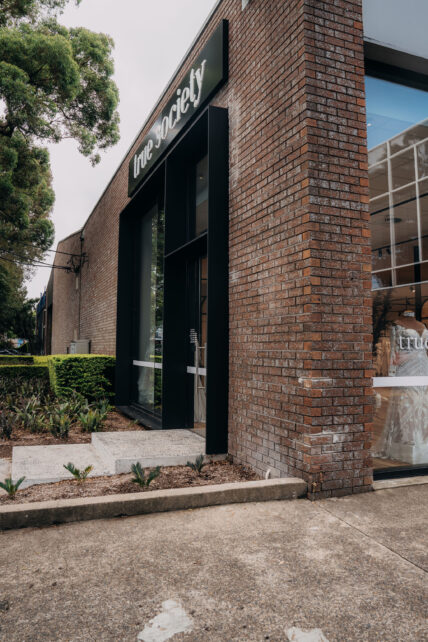

    Caprals 419 framing system shown at the front of a boutique with the external hood added

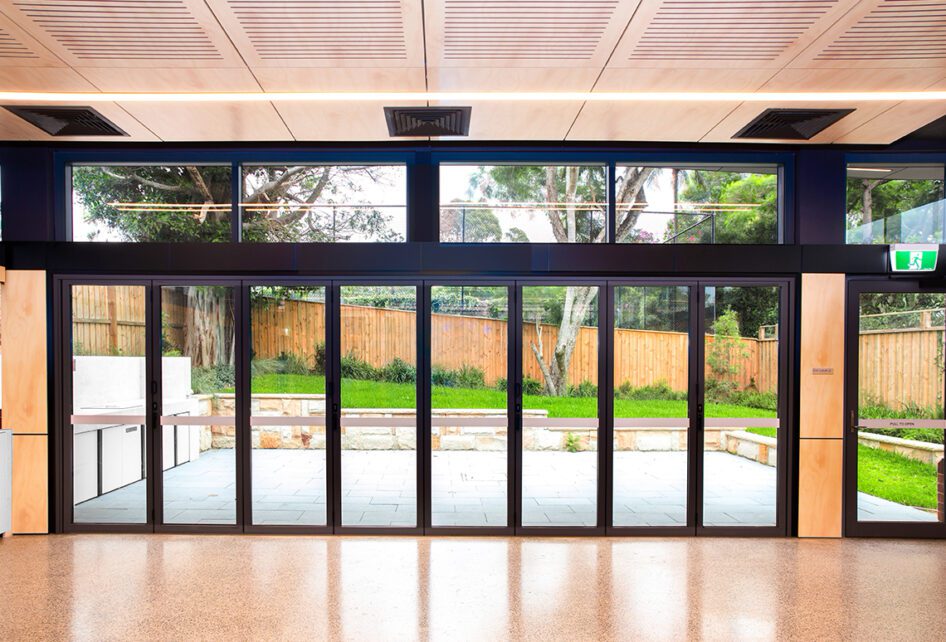

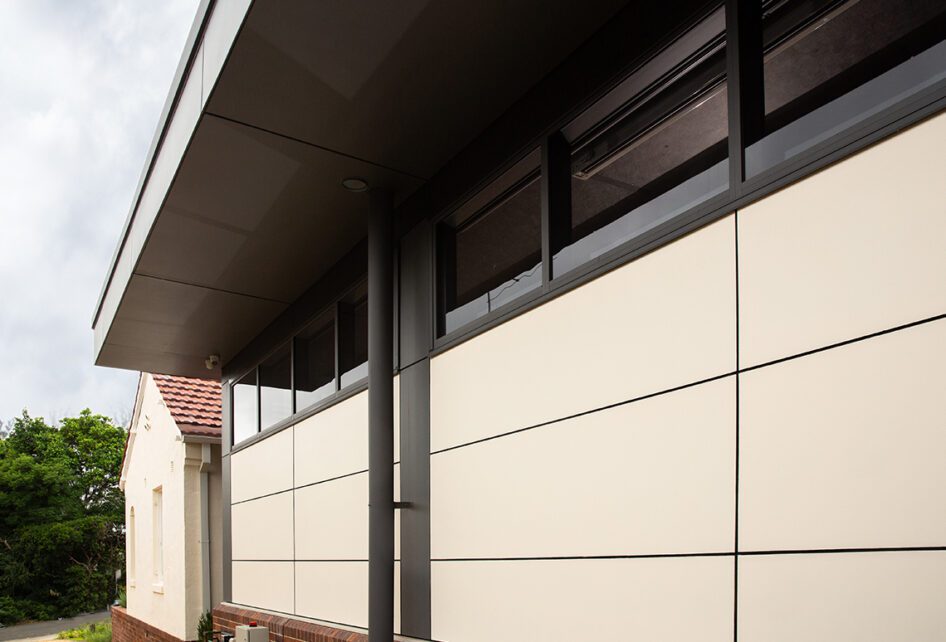

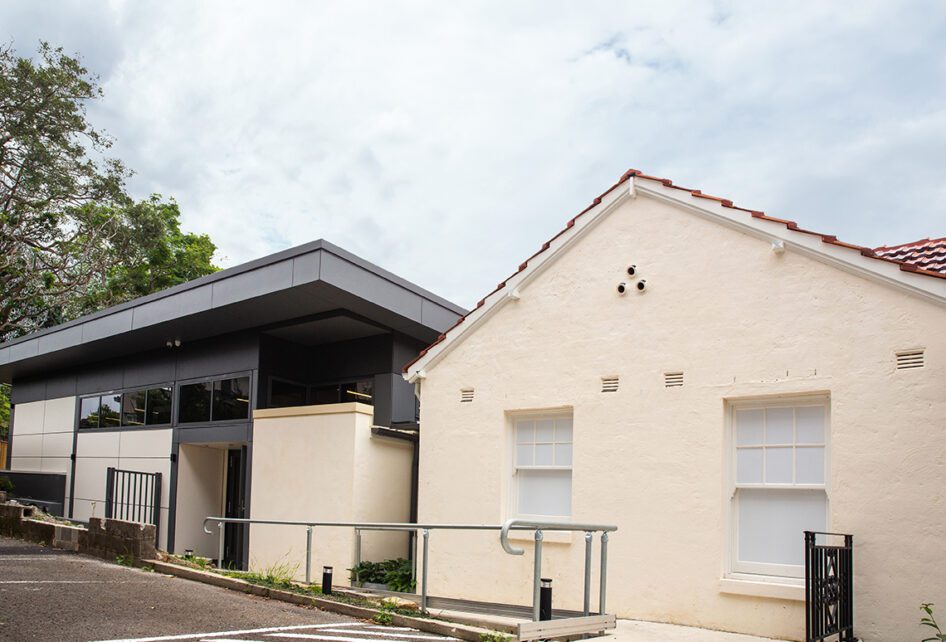

    Gordan Baptist Church featuring Capral and Schuco systems
    Gordan Baptist Church featuring Capral and Schuco systems
    Gordan Baptist Church featuring Capral and Schuco systems

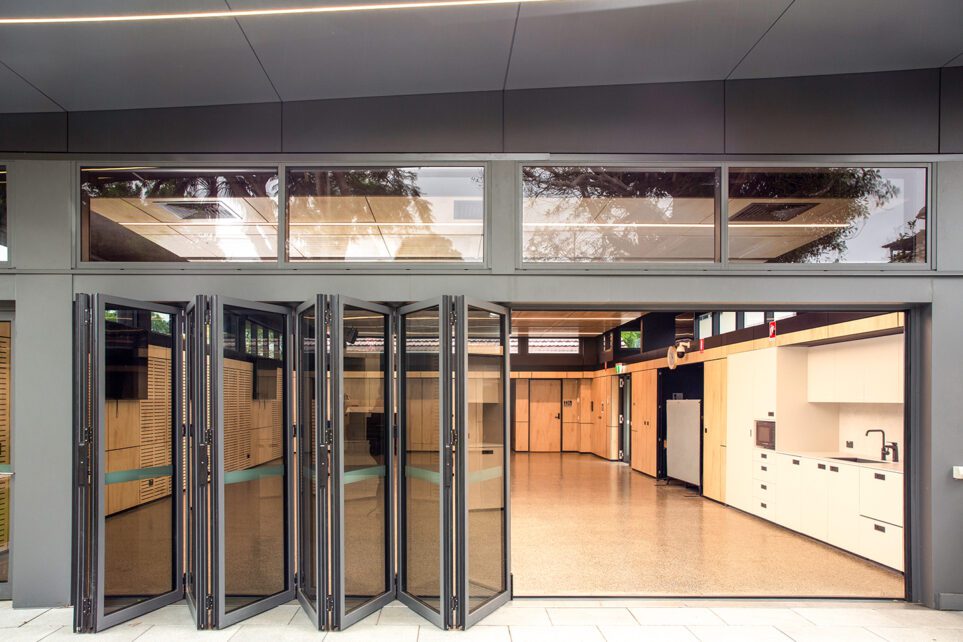

    Capral's Project Gordon Baptist Church using Capral window and building systems.

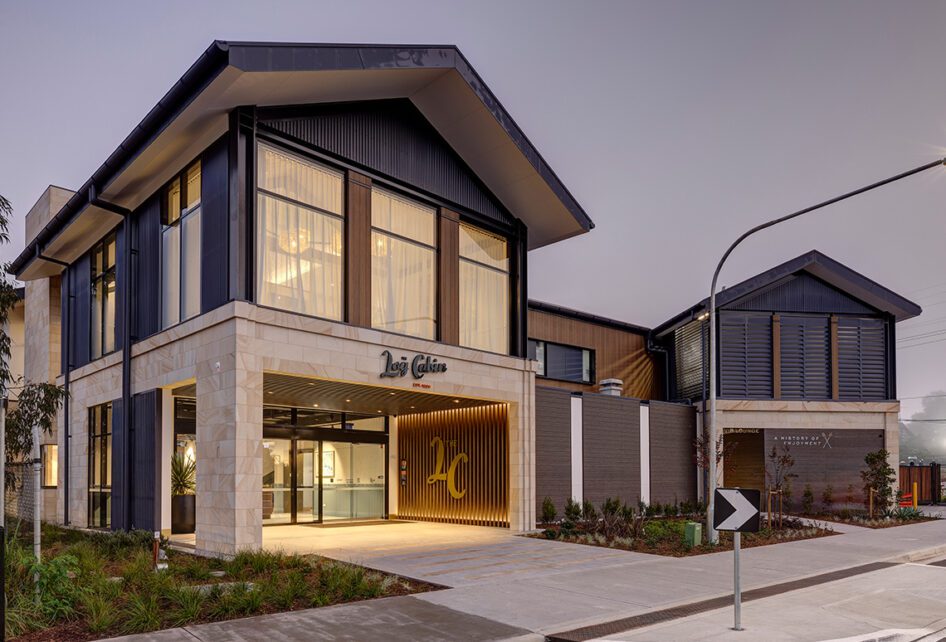

    Capral's Project Rebuilding The Log Cabin Hotel Penrith using Capral window and building systems.

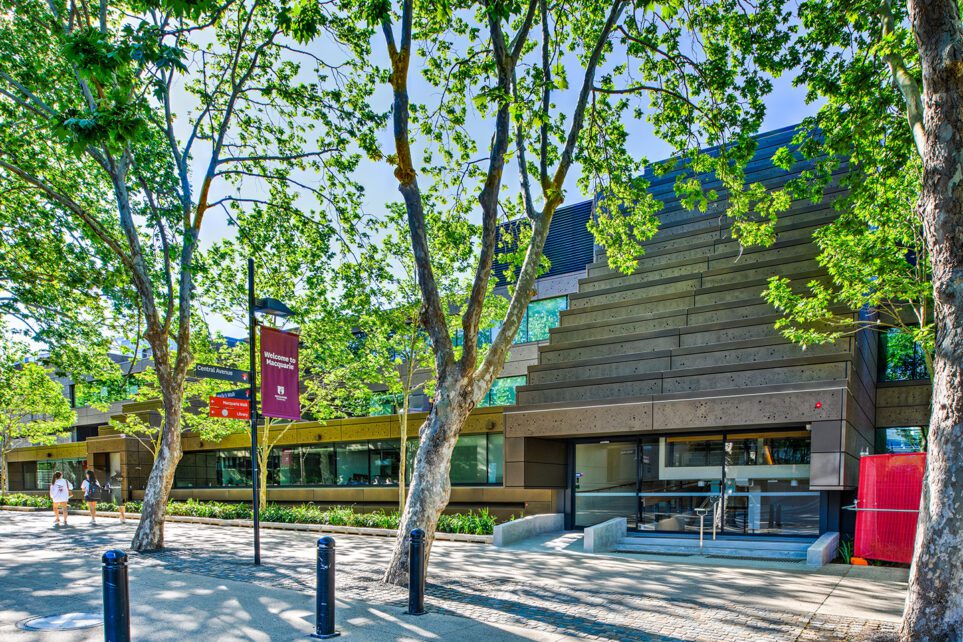

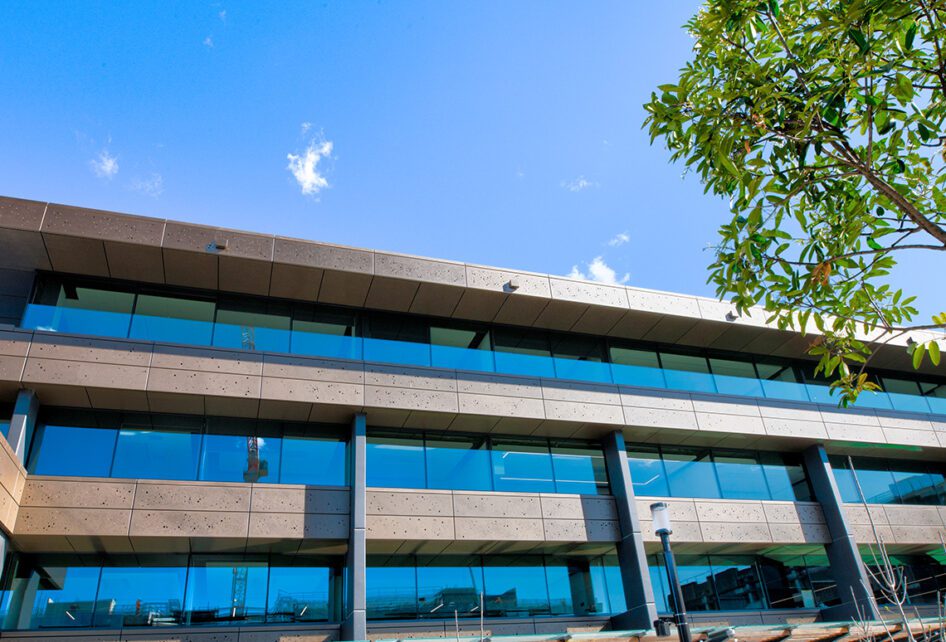

    Capral's Project Macquaire University's Lincoln Building using Capral window and building systems.
    Capral's Project Macquaire University's Lincoln Building using Capral window and building systems.

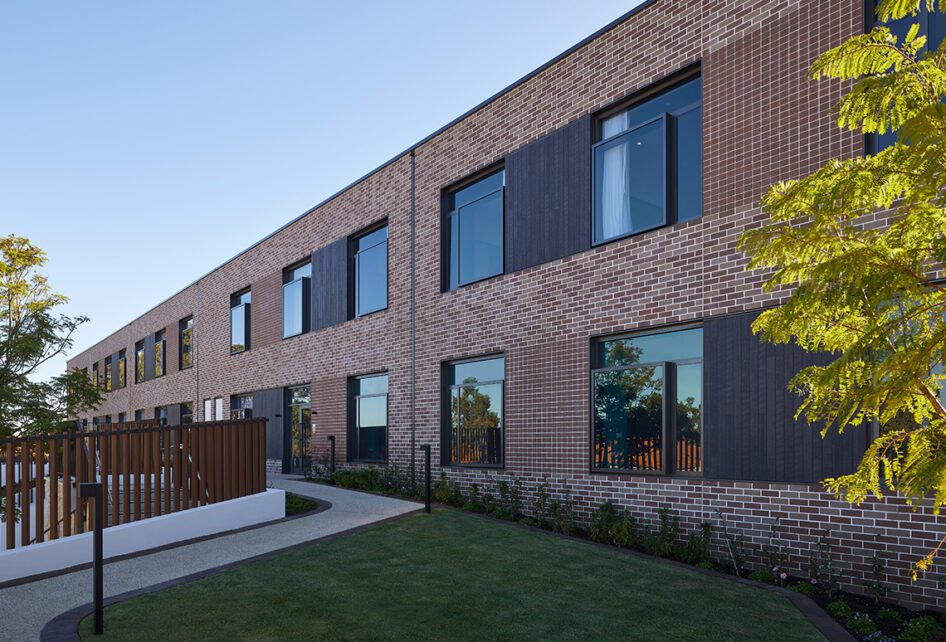

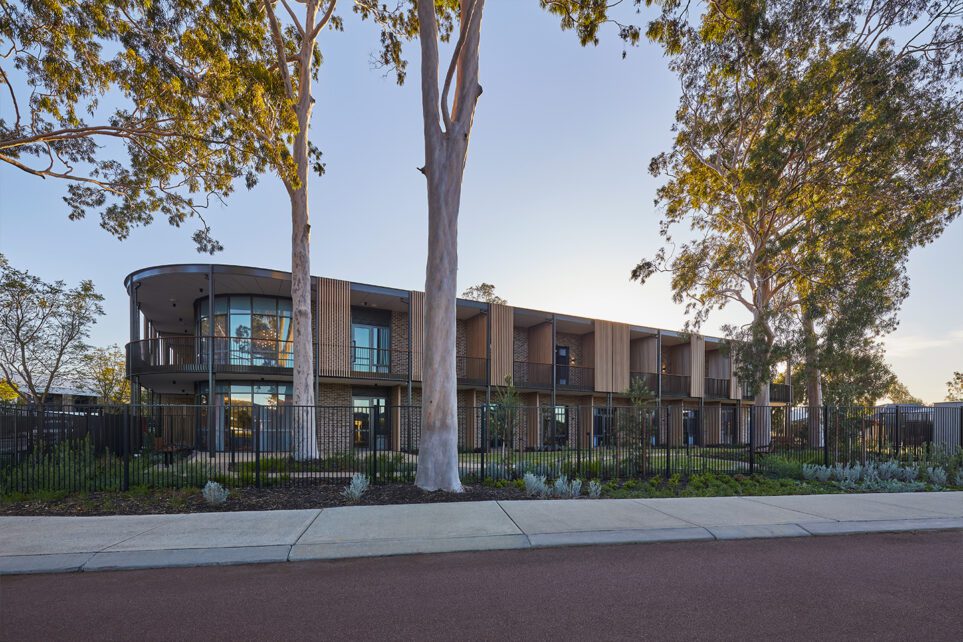

    Capral's Project Karingal Green using Capral window and building systems.
    Capral's Project Karingal Green using Capral window and building systems.

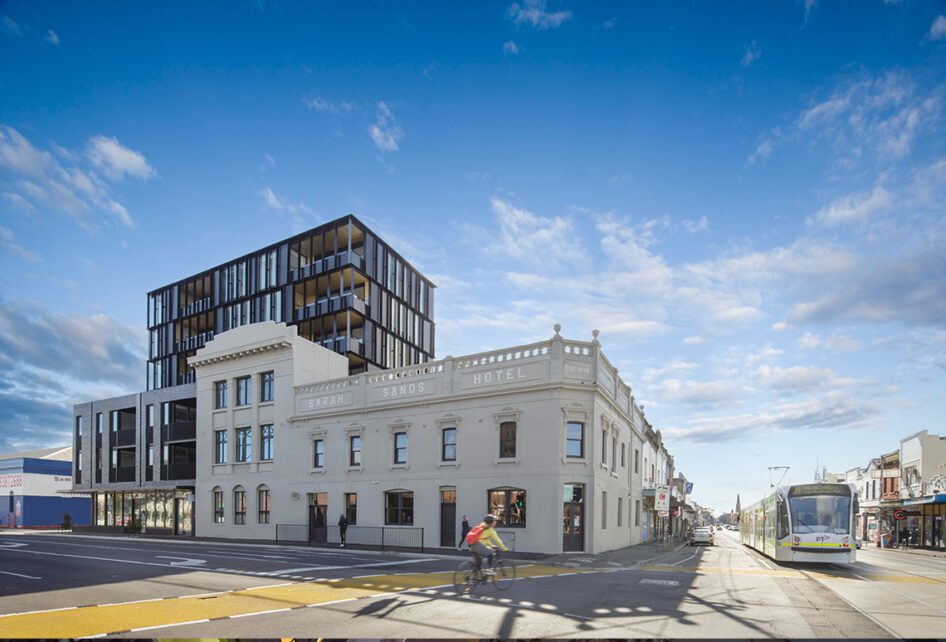

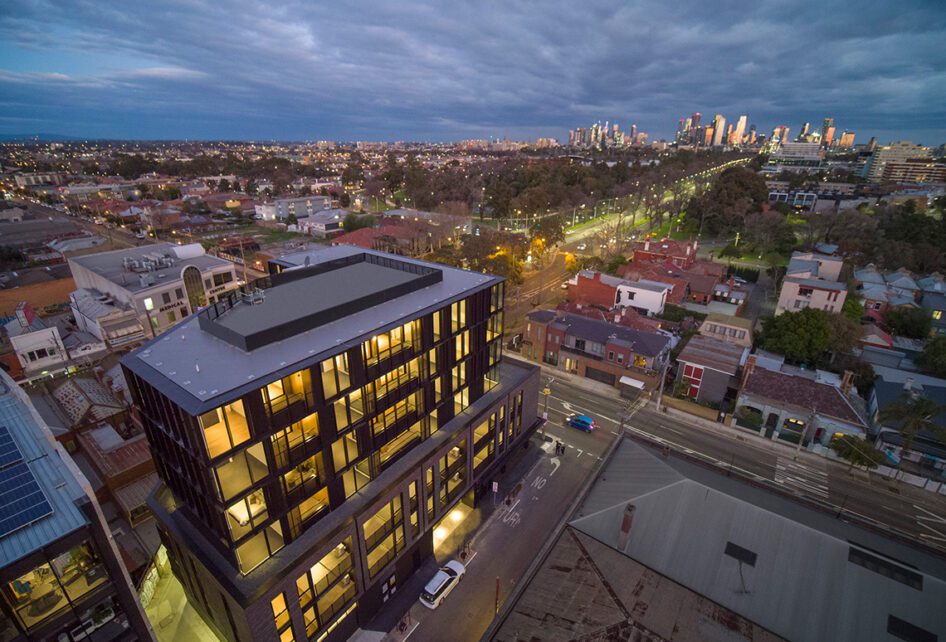

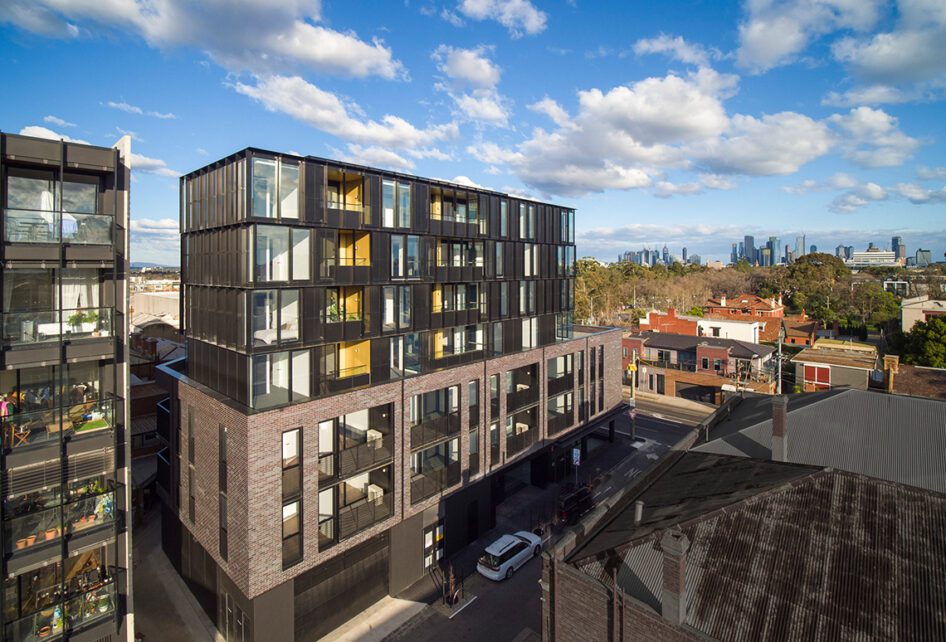

    Capral's Project Sarah Sands using Capral window and building systems.
    Capral's Project Sarah Sands using Capral window and building systems.
    Capral's Project Sarah Sands using Capral window and building systems.

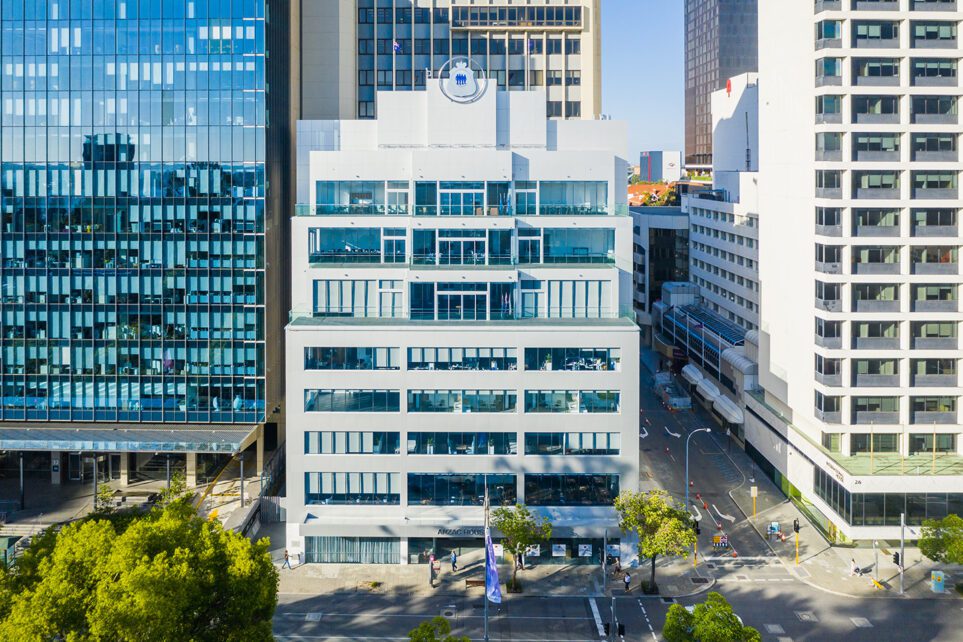

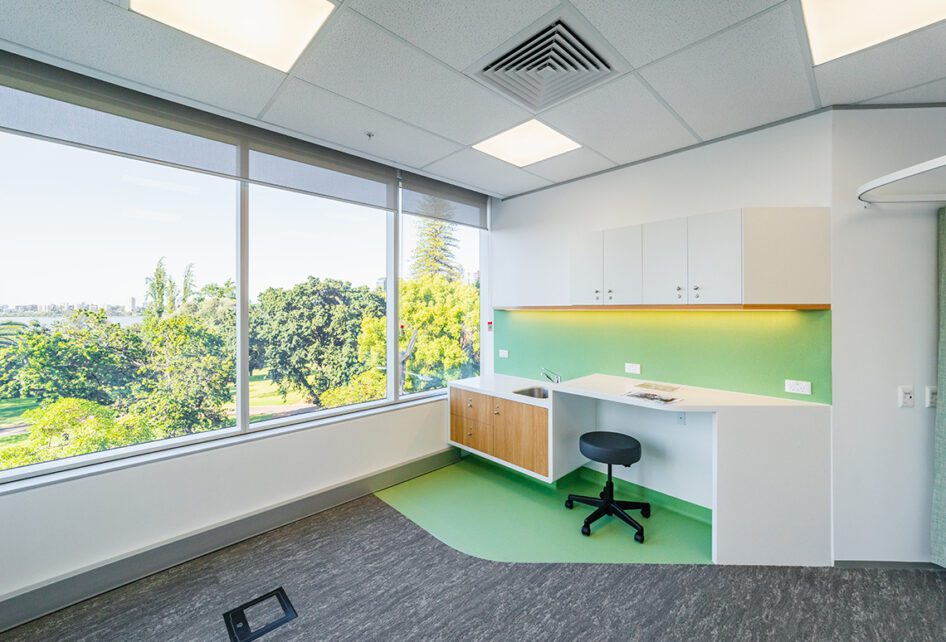

    Capral's Project Perth RSL Offices using Capral window and building systems.
    Capral's Project Perth RSL Offices using Capral window and building systems.
    Capral's Project Perth RSL Offices using Capral window and building systems.
    Capral's Project Perth RSL Offices using Capral window and building systems.

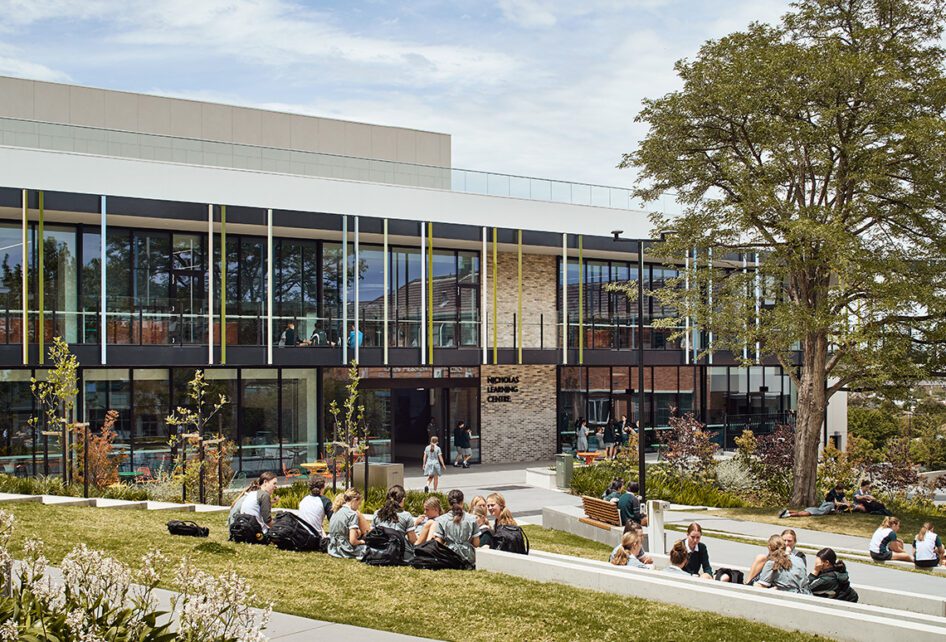

    Capral's Project MLC Nicholas Learning Centre using Capral window and building systems.
    Capral's Project MLC Nicholas Learning Centre using Capral window and building systems.

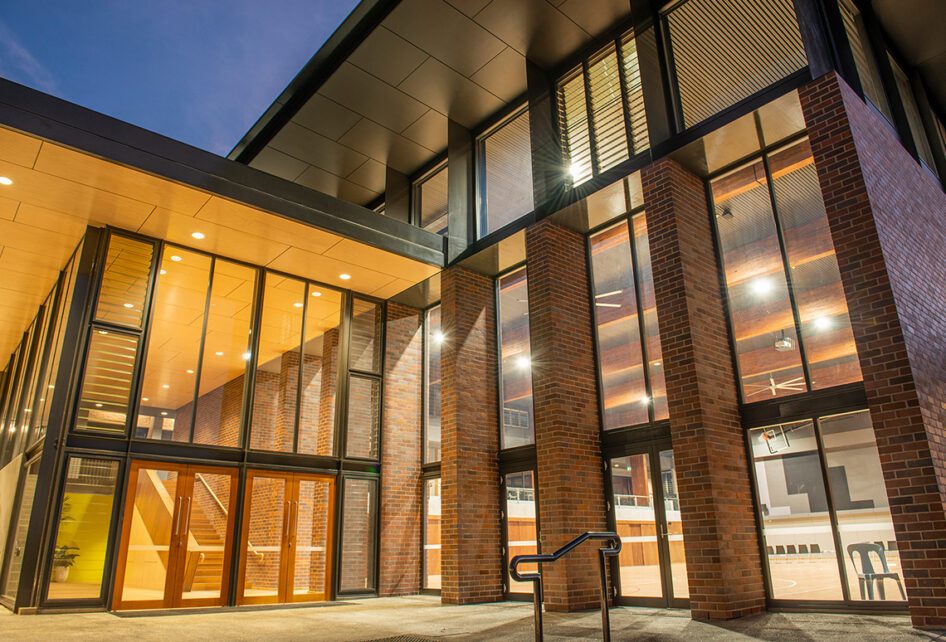

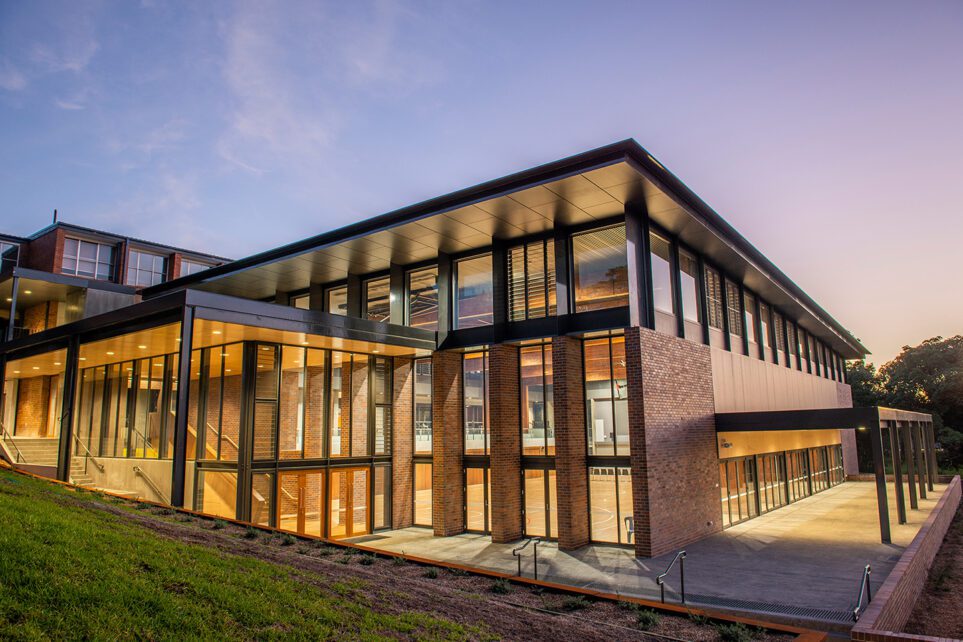

    Capral's Project San Clemente High School using Capral window and building systems.
    Capral's Project San Clemente High School using Capral window and building systems.

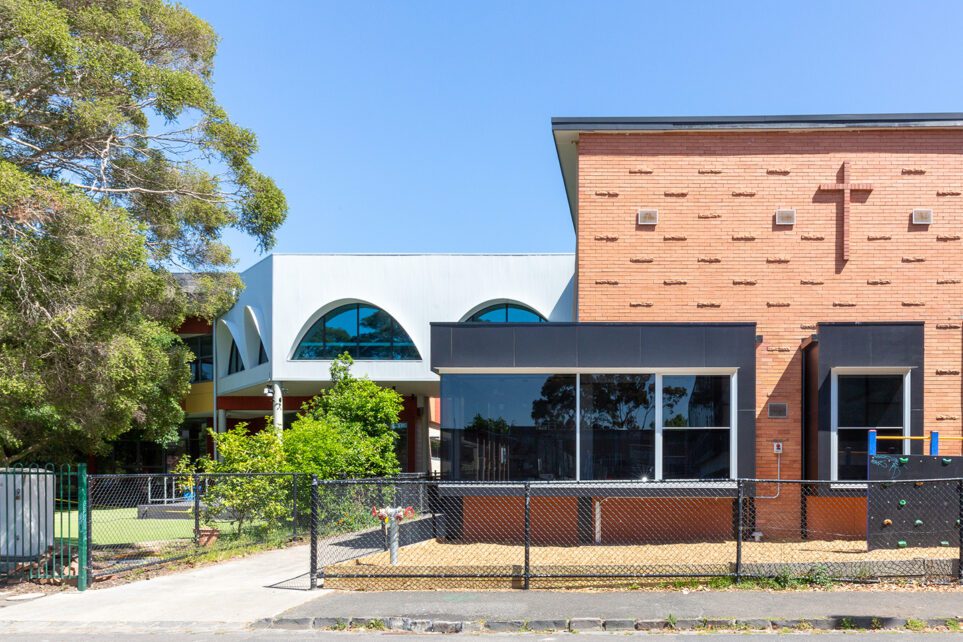

    Capral's Project St James Catholic Primary School using Capral window and building systems.

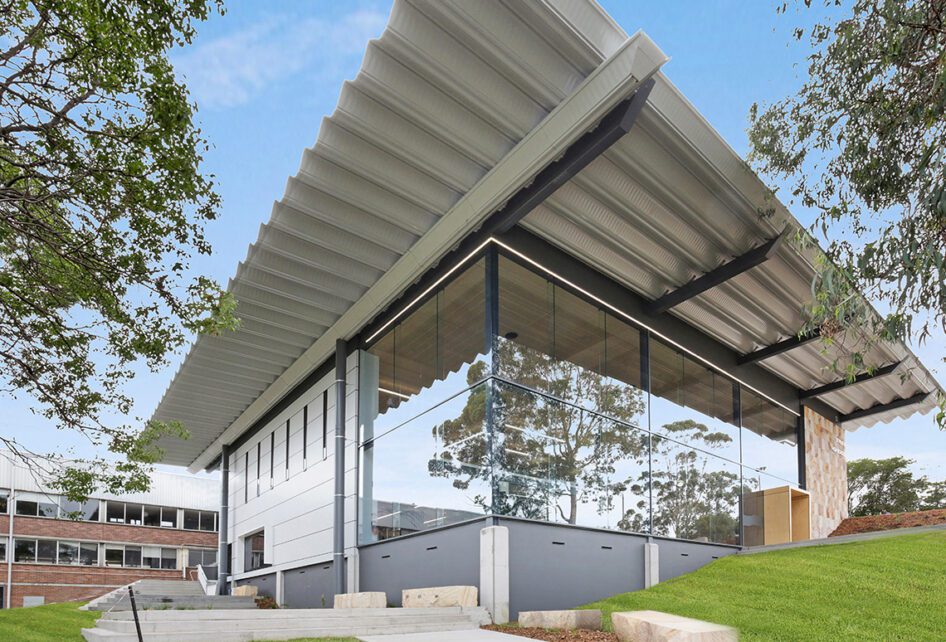

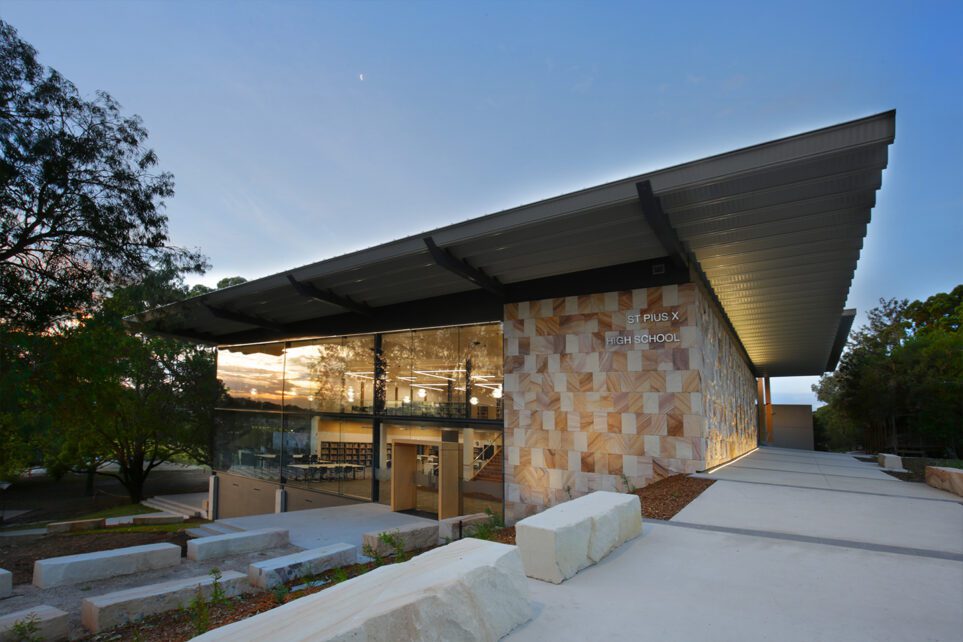

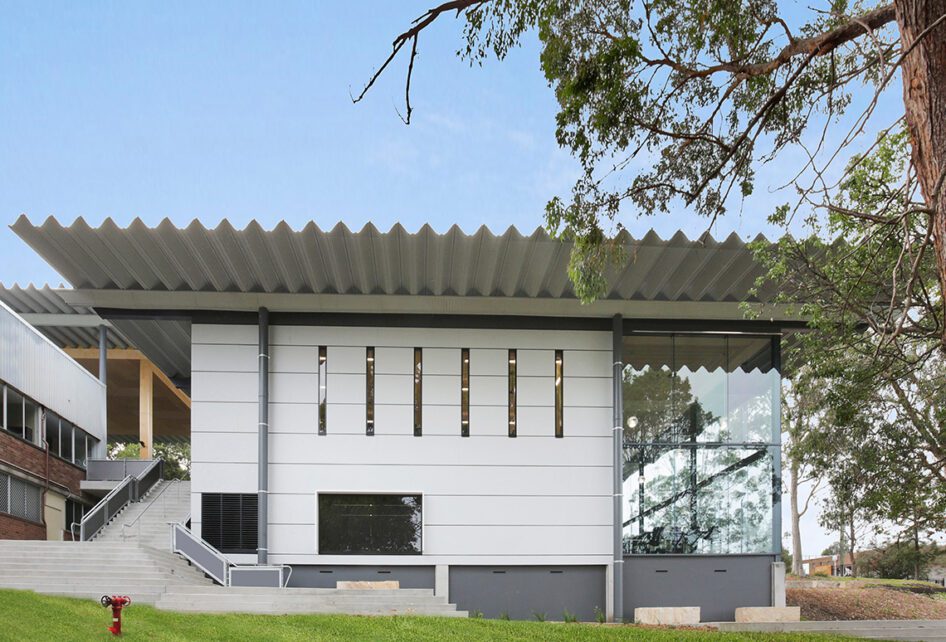

    Capral's Project St Pius X High School using Capral window and building systems.
    Capral's Project St Pius X High School using Capral window and building systems.
    Capral's Project St Pius X High School using Capral window and building systems.

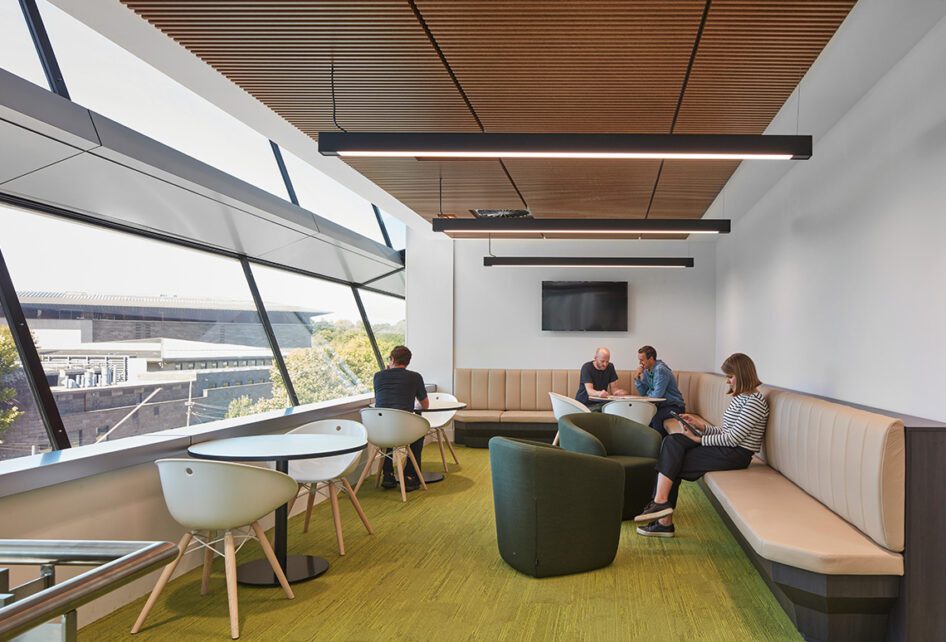

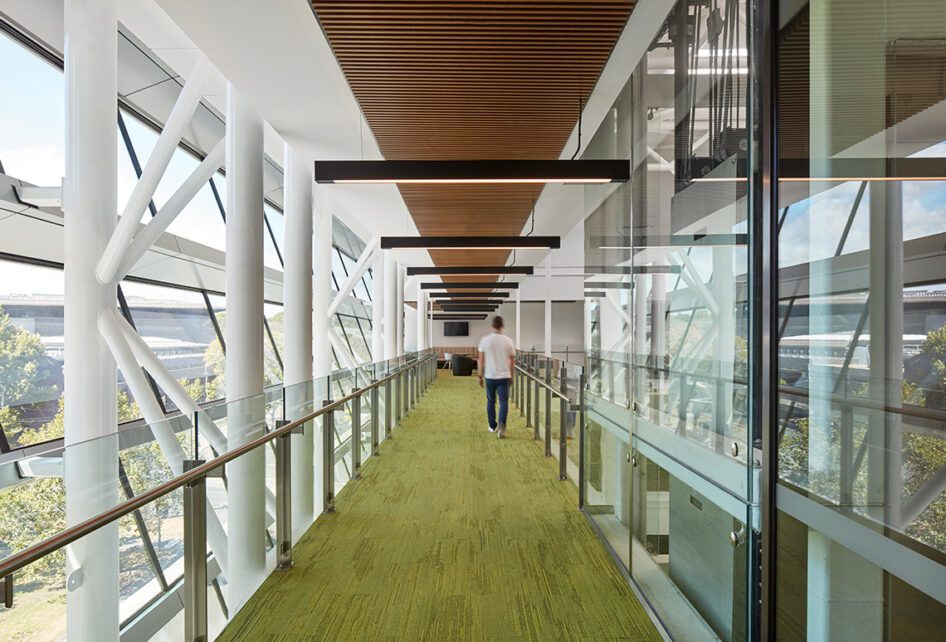

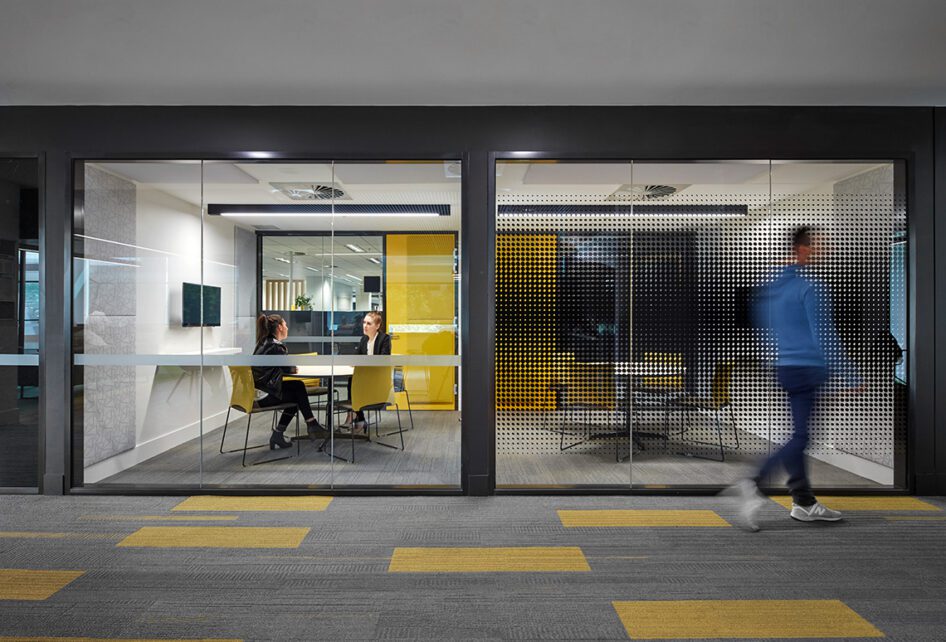

    Capral's Project ABC Melbourne Office using Capral window and building systems.
    Capral's Project ABC Melbourne Office using Capral window and building systems.
    Capral's Project ABC Melbourne Office using Capral window and building systems.
    Capral's Project ABC Melbourne Office using Capral window and building systems.

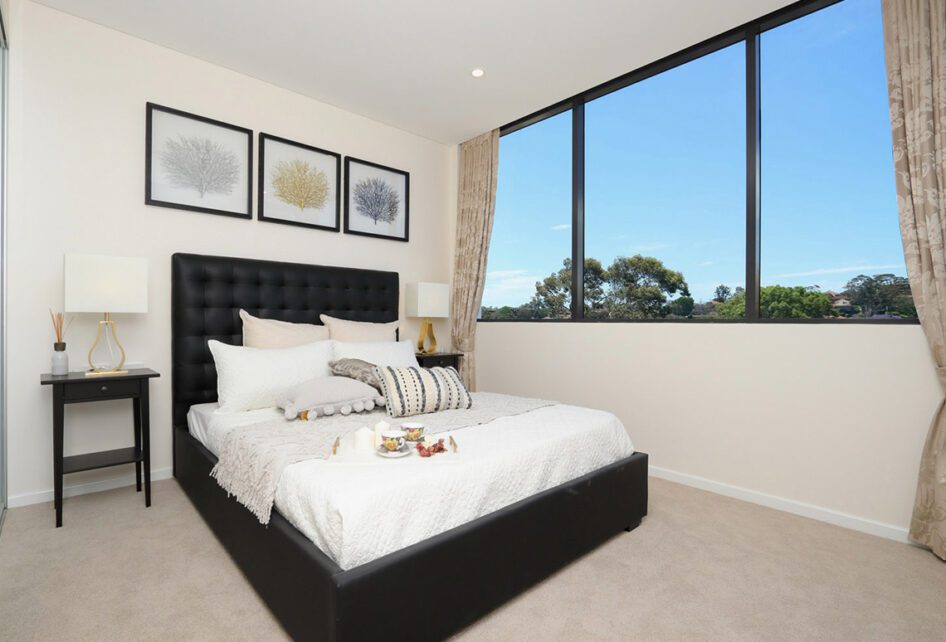

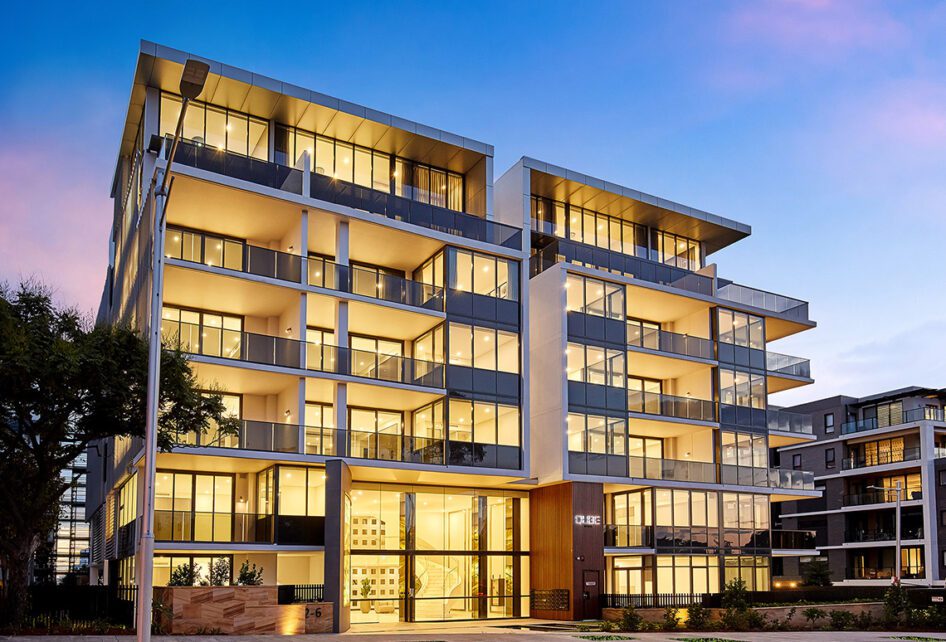

    Capral's Project Qube Apartment Complex using Capral window and building systems.
    Capral's Project Qube Apartment Complex using Capral window and building systems.
    Capral's Project Qube Apartment Complex using Capral window and building systems.

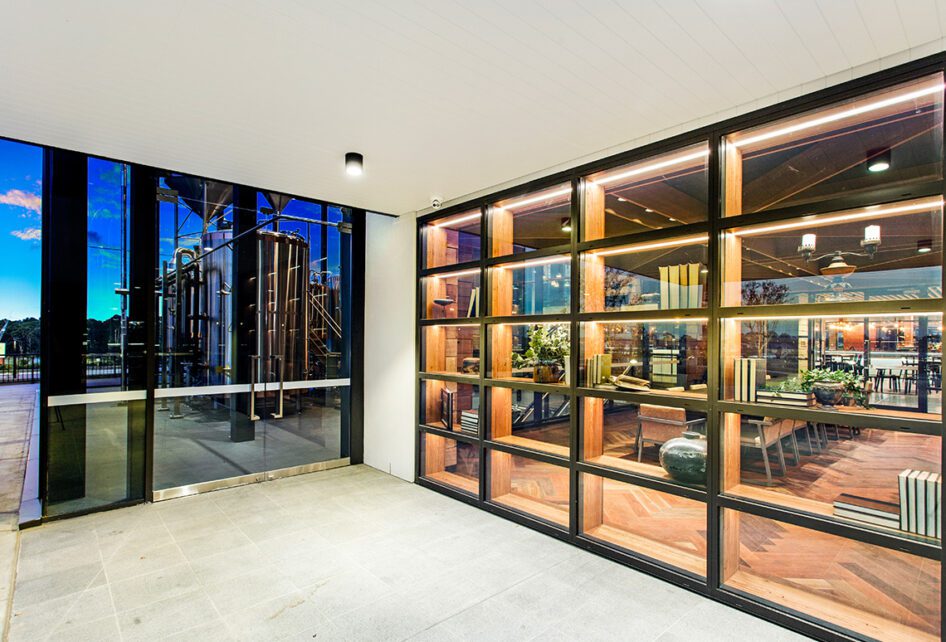

    Capral's Project Marsden Brewhouse using Capral window and building systems.

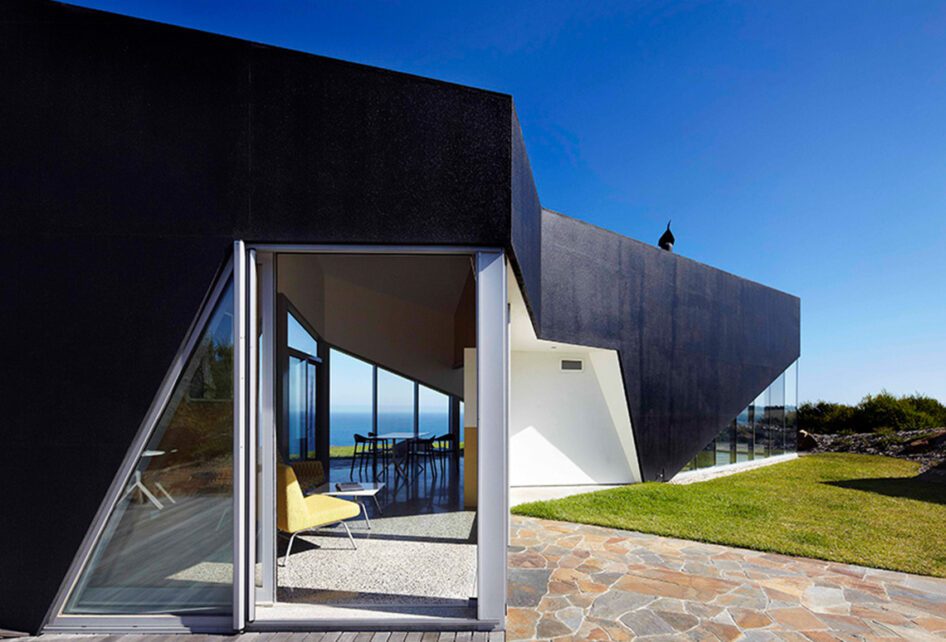

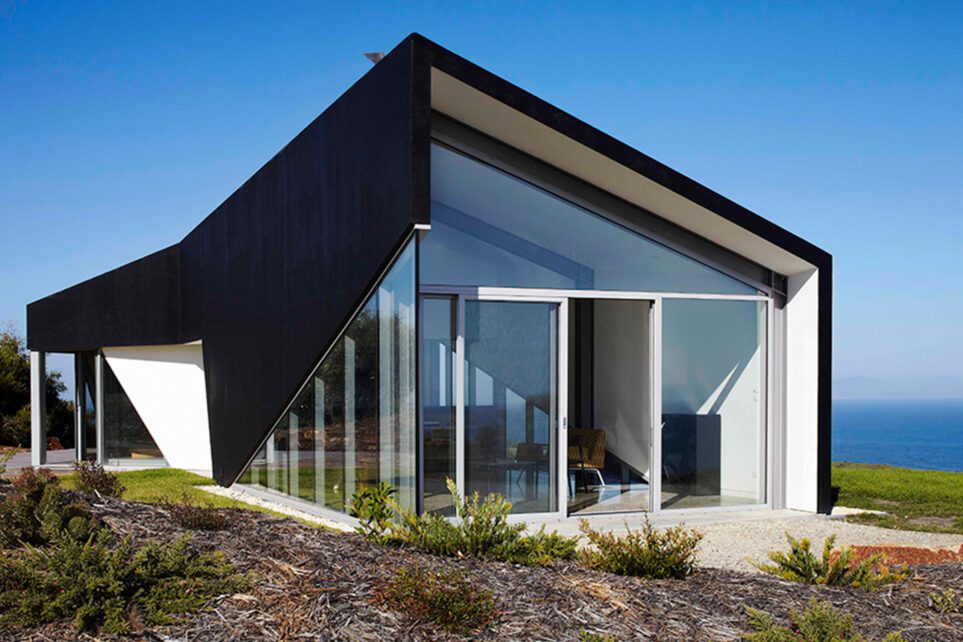

    Capral's Project Scape House using Capral window and building systems.
    Capral's Project Scape House using Capral window and building systems.
    Capral's Project Scape House using Capral window and building systems.
    Capral's Project Scape House using Capral window and building systems.

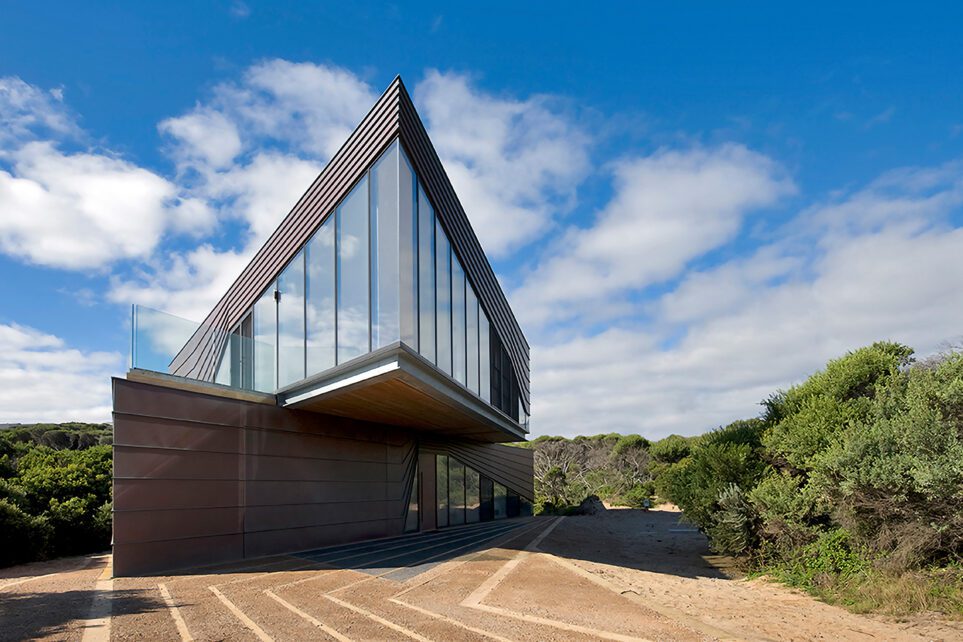

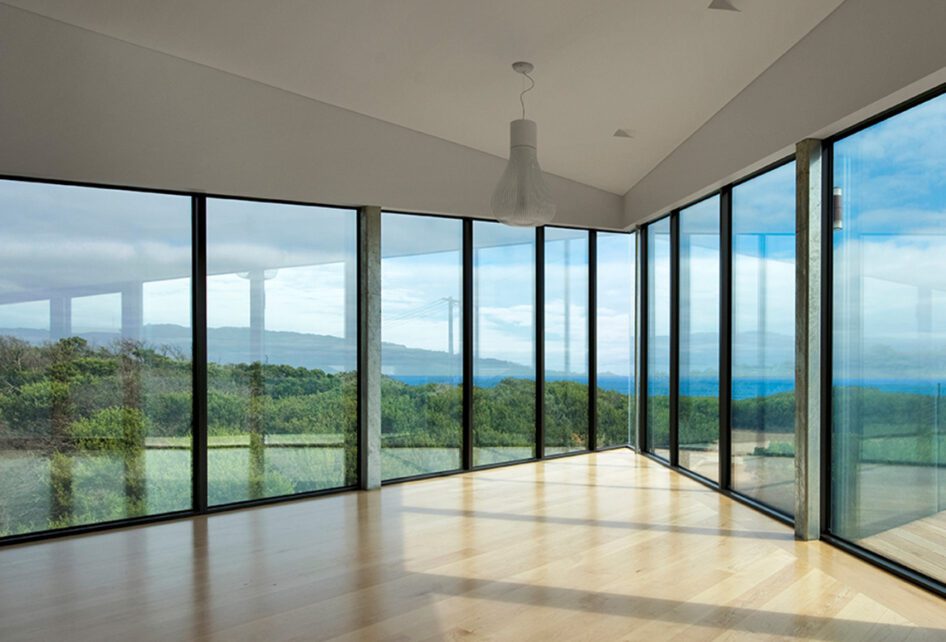

    Capral's Project Paradise Drive using Capral window and building systems.
    Capral's Project Paradise Drive using Capral window and building systems.
    Shoreline Residence lounge/ living 4oom 419 flushline single glazed
    Bruce Gordon Centre St George Main Entrance Featuring AGS 629 Flushline Double Glazed (150mm) Framing System
    Caprals 419 framing system shown at the front of a boutique with the external hood added
    Caprals 419 framing system shown at the front of a boutique with the external hood added
    Gordan Baptist Church featuring Capral and Schuco systems
    Gordan Baptist Church featuring Capral and Schuco systems
    Gordan Baptist Church featuring Capral and Schuco systems
    Capral's Project Gordon Baptist Church using Capral window and building systems.
    Capral's Project Rebuilding The Log Cabin Hotel Penrith using Capral window and building systems.
    Capral's Project Macquaire University's Lincoln Building using Capral window and building systems.
    Capral's Project Macquaire University's Lincoln Building using Capral window and building systems.
    Capral's Project Karingal Green using Capral window and building systems.
    Capral's Project Karingal Green using Capral window and building systems.
    Capral's Project Sarah Sands using Capral window and building systems.
    Capral's Project Sarah Sands using Capral window and building systems.
    Capral's Project Sarah Sands using Capral window and building systems.
    Capral's Project Perth RSL Offices using Capral window and building systems.
    Capral's Project Perth RSL Offices using Capral window and building systems.
    Capral's Project Perth RSL Offices using Capral window and building systems.
    Capral's Project Perth RSL Offices using Capral window and building systems.
    Capral's Project MLC Nicholas Learning Centre using Capral window and building systems.
    Capral's Project MLC Nicholas Learning Centre using Capral window and building systems.
    Capral's Project San Clemente High School using Capral window and building systems.
    Capral's Project San Clemente High School using Capral window and building systems.
    Capral's Project St James Catholic Primary School using Capral window and building systems.
    Capral's Project St Pius X High School using Capral window and building systems.
    Capral's Project St Pius X High School using Capral window and building systems.
    Capral's Project St Pius X High School using Capral window and building systems.
    Capral's Project ABC Melbourne Office using Capral window and building systems.
    Capral's Project ABC Melbourne Office using Capral window and building systems.
    Capral's Project ABC Melbourne Office using Capral window and building systems.
    Capral's Project ABC Melbourne Office using Capral window and building systems.
    Capral's Project Qube Apartment Complex using Capral window and building systems.
    Capral's Project Qube Apartment Complex using Capral window and building systems.
    Capral's Project Qube Apartment Complex using Capral window and building systems.
    Capral's Project Marsden Brewhouse using Capral window and building systems.
    Capral's Project Scape House using Capral window and building systems.
    Capral's Project Scape House using Capral window and building systems.
    Capral's Project Scape House using Capral window and building systems.
    Capral's Project Scape House using Capral window and building systems.
    Capral's Project Paradise Drive using Capral window and building systems.
    Capral's Project Paradise Drive using Capral window and building systems.
    Key features
    • 100x50mm single-glazed frame
    • Suits residential, commercial and architectural applications

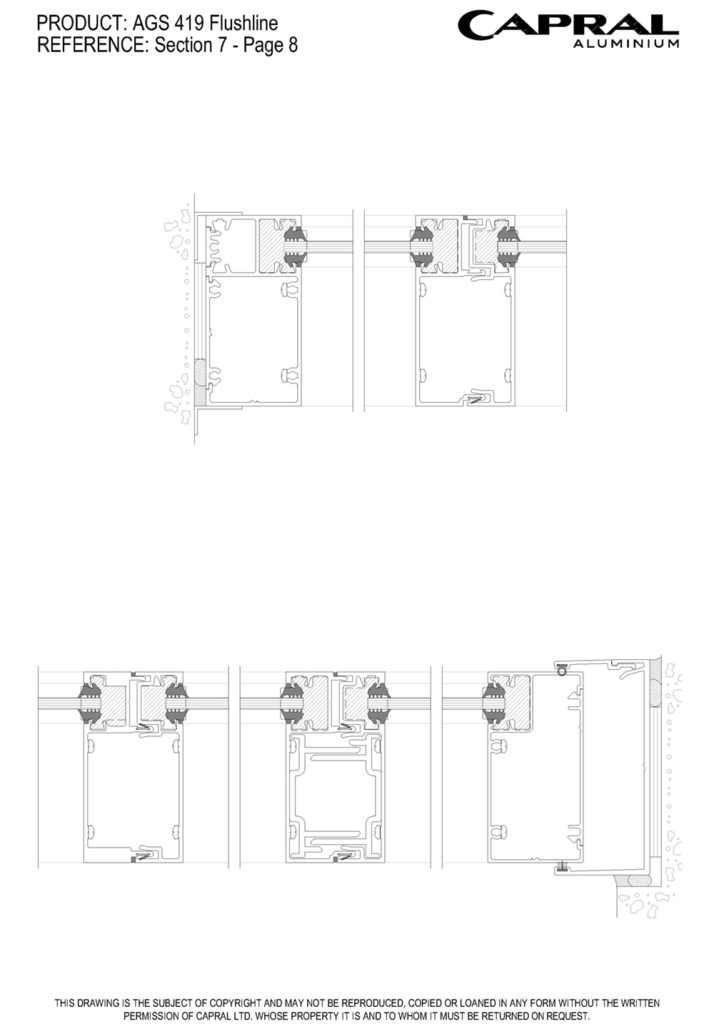

    • Forward-positioned glazing pocket for flush external finish or reverse installation possible
    • for expressed mullions

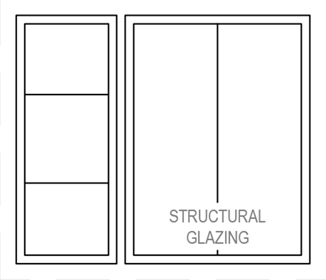

    • Structurally glazed mullion and transom options
    • Compatible door and window suites are available
    • Internal and externally beaded options

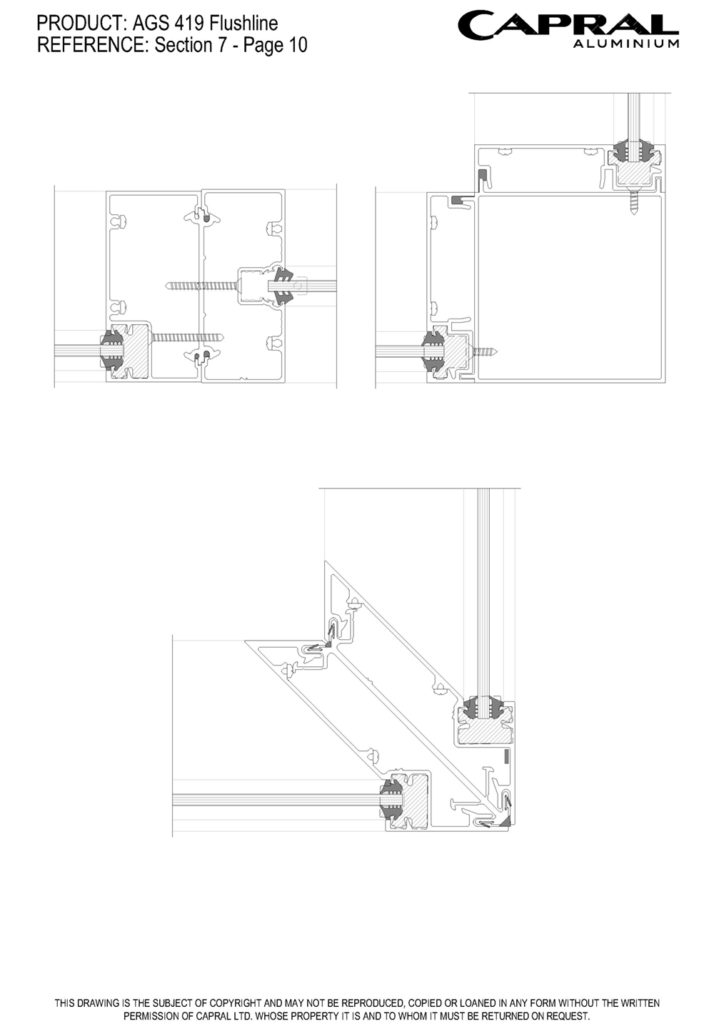

    • Corner mullion and post options
    • Tested for BAL 40 compliance
    • Subframe including spandrel sub frame available

    The AGS 419 Flushline is a 100mm, single-glazed, flush-glazed framing system offering a clean and modern external appearance. Popular on commercial and architectural projects throughout Australia.
    The AGS 419 Flushline can incorporate structurally glazed mullion profiles and offers several operable door and window options.

    Download Brochure

    Details

    Product Specs
    Configurations
    Arrangements

    Maximum Product Sizes

    Panel Height (mm) 3800
    Panel Width (mm) 2400

    Frame Dimensions

    Frame depth (mm) 100
    Face Width (mm) 50

    Acoustic Rating

    Rw (C;Ctr) 37 (0;-2)

    Bushfire Rating

    BAL 40

    Maximum Product Performance

    SLS (Pa) 6000
    ULS (Pa) 9000
    WATER (Pa) 1500

    Glazing Details

    Single Glazed 6 - 12

    Energy Performance

    Uw Range 3.97 - 6.28
    SHGC Range 0.22 - 0.75
    Tvw Range 0.08 - 0.80
    Air infiltration 0.17 - 0.17
    WERS Rating
    Residential Commercial

    Downloads

    Technical Documents, CAD & Revit
    Other
    Technical Manuals
    Technical Manual AGS 419 Flushline
    Technical Manual AGS Sub Frames
    Wall Charts
    Extrusion Wall Chart AGS 100mm & 250mm Flushline Framing Systems
    Extrusion Wall Chart AGS Speciality Sub Frames
    Extrusion Wall Chart AGS Sub Framing
    BIM Files
    Revit AGS Flushline Framing
    Revit Capral Subframes
    CAD Files
    CAD Files AGS 419 Flushline
    CAD Files AGS Sub Frames
    CAD Wall Chart AGS Flushline Framing
    CAD Wall Chart AGS Sub Framing
    Bulletins
    PB468 - AGS Commercial Sub Frames – Sub Sill Splice Plate
    PB463 - AGS Flushline - 90˚ Corner Post for 419 & 429 Framing Systems
    PB343 - AGS Flushline Relaunch
    PB323 - AGS 419 Tall Sub Head Additions
    PB286 - AGS 419 150mm DG Rotation Mullion Release
    PB257 - 9mm Glazing Wedge
    PB266 - Futureline Plastic Pocket Filler
    PB260 - March 2021 Documentation Updates
    PB20210202 - February Documentation Updates
    Other
    Capral_ArchitecturalSeries_Whitepaper Capral AGS 419 Flushline Brochure Specification AGS 419 Flushline Capral Installation Details
    NATSPEC Branded Work Section
    Environmental Protection Declaration (EPDs)
    EPD-IES-0031050:001 LocAl Version: 1 (2026-05-28)
    EPD-IES-0032247:001 LocAl SG Version: 1 (2026-06-12)

    Compatible Products

    Systems
    AGS Commercial 35 Hook Hinge Awning Sash

    This AGS Commercial Awning Window with Hook Hinge is an operable window sash available for use with AGS commercial framing.

    AGS Commercial 50 Awning Sash

    The AGS 50 Series window is a high-performance commercial awning window compatible with AGS framing.

    Capral's AGS Commercial 950 Sliding Window Corner Image. AGS Commercial 950 Sliding Window

    The AGS 950 Sliding Window system has been engineered to deliver high strength and performance. It has been tested to cyclonic requirements and can have large sash sizes and numerous configurations.

    AGS Commercial 488 Tilt-and-Turn Window Corner Image. AGS Commercial 488 Tilt-and-Turn Window

    The AGS Tilt & Turn window is flexible in form and function and compatible with our AGS Narrowline range of commercial framing products.

    AGS Commercial 225 Hinged Door Corner Image. AGS Commercial 225 Hinged Door

    The AGS 225 Hinged Door is a 46mm pocket glazed commercial door panel capable of delivering flexibility, performance and ease of assembly in mind.

    Capral's Artisan 998 Tilt Turn Window Corner Image. Artisan 998 Tilt-and-Turn Window

    The Artisan Architectural Tilt & Turn is a multi-functional window and is compatible with the AGS Flushline range of commercial framing products.

    Capral's AGS Commercial 482 Awning Window Corner Image. AGS Commercial 482 Awning Window

    The 482 Awning Window incorporates the features and flexibility of a residential window system into the commercial grade AGS 400/425 Narrowline framing systems and 100mm Flushline framing systems.

    Capral's AGS Commercial 35 Awning Sash Corner Image. AGS Commercial 35 Awning Sash

    This AGS Commercial Awning Window is an operable window sash available for use with AGS commercial framing.

    Capral's Artisan 992 Awning and Casement Window Corner Image. Artisan 992 Awning Window

    The smooth-opening Artisan Architectural 992 Awning Window is configurable to meet your needs.

    AGS Commercial 35 Casement Sash Corner Image. AGS Commercial 35 Casement Sash

    This AGS Commercial Casement Window is an operable window sash available for use with AGS commercial framing.

    Capral's AGS Commercial 50 Awning Corner Image. AGS Commercial 50 Casement Sash

    The AGS 50 Series window is a high-performance commercial casement window compatible with AGS framing.

    Artisan 992 Casement Window Corner Image. Artisan 992 Casement Window

    The Artisan Architectural 992 Casement Window swings outward with effortless ease and can be tailored to meet your needs.

    More products from this range

    AGS Commercial 499 Strut Window

    The AGS 499 Gas Strut Window is ideal in servery applications, designed to maximise functionality, airflow and convenience.

    AGS Commercial 1029 Flushline (250mm) Corner Image. AGS Commercial 1029 Flushline Double Glazed (250mm)

    Flushline AGS1029 is the new name for the product formerly known as Flushline419DG 250mm * 55mm

    AGS Glazing Adaptors

    Capral offers a wide range of adaptors that provide glazing options for existing and new structures.

    AGS Commercial 400 Narrowline Single Glazed (100mm) Corner Image. AGS Commercial 400 Narrowline Single Glazed (101.6mm)

    The AGS 400 Narrowline framing system has set the standard for centre-glazed framing for over two decades.

    AGS Commercial CW150 150mm Curtain Wall Corner Image. AGS Commercial CW150 150mm Curtain Wall

    The CW150 Curtain Wall has been developed to provide a robust and flexible Curtain Wall solution for small to mid-sized curtain wall projects.

    AGS Commercial 600 Narrowline Single Glazed (150mm) Corner Image. AGS Commercial 600 Narrowline Single Glazed (150mm)

    The AGS 600 Narrowline offers an increased level of structural Performance than the AGS 400 Narrowline with its bolder 150mm frame depth and increased 50mm face dimension.

    Extruded Aluminium Louvre Extruded Louvre

    An extensive range of extruded louvre blades are available from Capral to cater for various ventilation, shading and aesthetic requirements

    AGS Commercial 629 Flushline Double Glazed (150mm) Corner Image. AGS Commercial 629 Flushline Double Glazed (150mm)

    Flushline AGS629 is the new name for the product formerly known as Flushline 419DG 150mm x 55mm. This system was developed to accommodate both internal and external glazing.

    Not quite what you’re looking for? Consider...

    AGS Commercial 629 Flushline Double Glazed (150mm) Corner Image. AGS Commercial 629 Flushline Double Glazed (150mm)

    Flushline AGS629 is the new name for the product formerly known as Flushline 419DG 150mm x 55mm. This system was developed to accommodate both internal and external glazing.

    AGS Commercial 1029 Flushline (250mm) Corner Image. AGS Commercial 1029 Flushline Double Glazed (250mm)

    Flushline AGS1029 is the new name for the product formerly known as Flushline419DG 250mm * 55mm

    AGS Commercial 429 Flushline Double Glazed (100mm) Corner Image. AGS Commercial 429 Flushline Double Glazed (100mm)

    Flushline AGS429 is the new name for the product formerly known as Flushline 419DG 100mm x 55mm. This commercial framing system has been developed to accommodate internal and external glazing techniques.

    AGS 419 & 619 Flushline Acoustic Framing

    The AGS 419 & 619 Flushline Acoustic framing systems have been developed to provide a product where acoustic performance is paramount.

    AGS Commercial 659 Flushline Wide Pocket (150mm) Corner Image. AGS Commercial 659 Flushline Wide Pocket (150mm)

    The AGS 659 150mm wide glazed commercial Flushline framing system has been developed to accommodate both internal and external glazing techniques.

    AGS Commercial 619 Single Glazed (150mm)

    Flushline AGS619 is the new name for the product formerly known as Flushline 419SG 150mm x 50mm. The AGS 619 Flushline offers a clean and modern external appearance.

    Projects that use this system

    Shoreline Beachside Living: Pacific Coast Facades Brings Coastal Views to Life with Capral Aluminium Systems

    Pacific Coast Facades brings coastal views to life at Shoreline Beachside Living, using Capral aluminium systems to create expansive glazed openings and large sliding doors that connect the apartments with their balconies and Gold Coast surroundings.


    Apartments and Multi-residential Buildings

    DEFS Collie Multipurpose Facility

    The DFES Collie Multipurpose Facility is a purpose-built, sustainable emergency management hub in Western Australia’s South-West.


    Fire Attenuation

    Monterey Community Facility

    The Monterey Community Facility is a testament to excellence in glazing and fenestration, earning recognition for its meticulous craftsmanship and innovative design.


    Aged Care and Community Living
