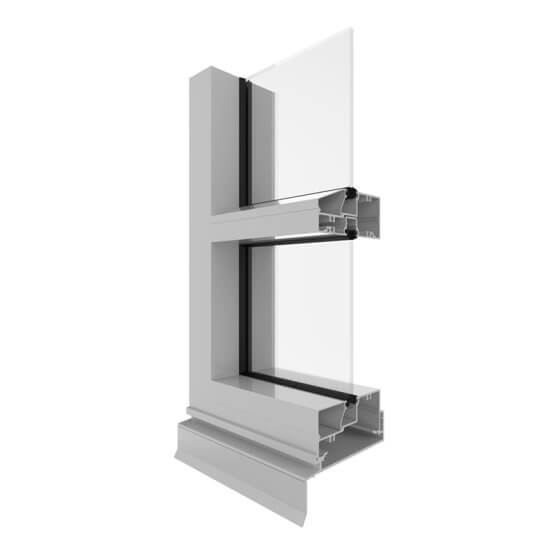

    AGS Commercial 400 Narrowline Single Glazed (100mm) Corner Image.
    Commercial

    AGS Commercial 400 Narrowline Single Glazed (101.6mm)

    The AGS 400 Narrowline framing system has set the standard for centre-glazed framing for over two decades.

    Download Brochure WERS Rating
    Residential Commercial
    Declare Label
    Certified
    Acoustic
    Rated
    BAL 40
    Tested
    Image Gallery Key Features Details Downloads Compatible Products More Products
    Jump to:
    Select

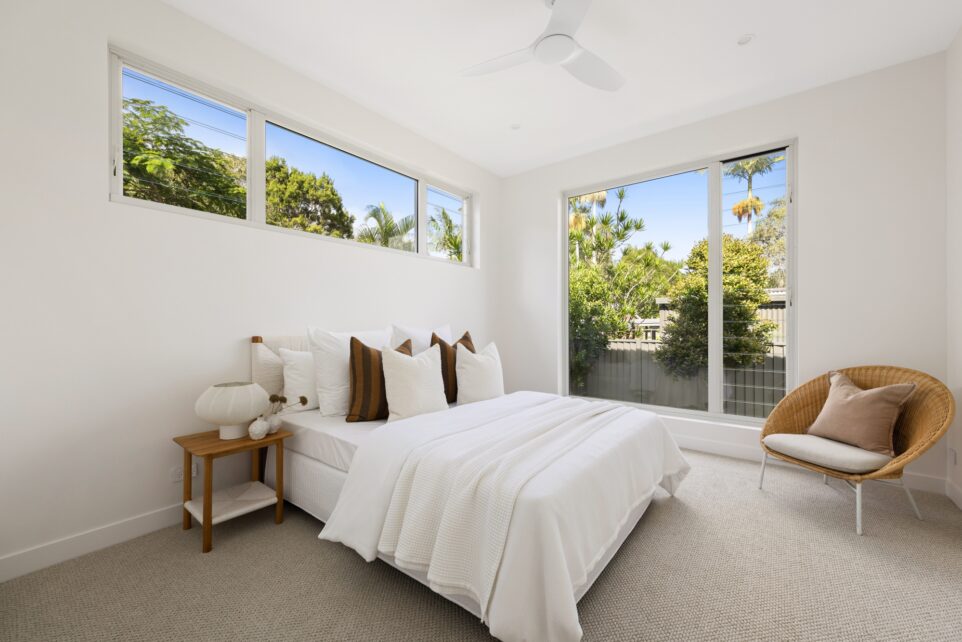

    4 Gosford Court Capral Window and Door Systems

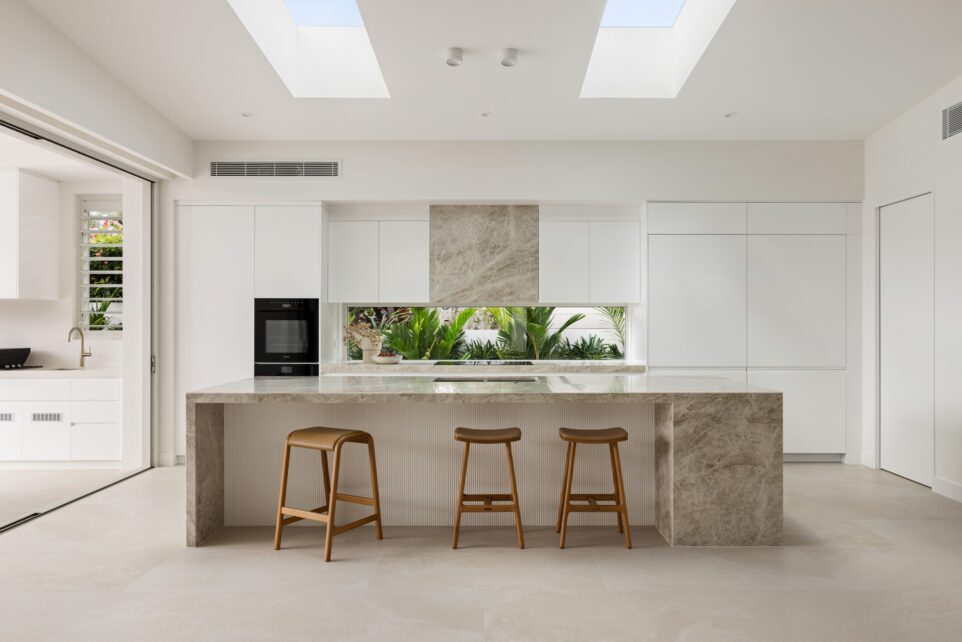

    4 Gosford Court Capral Window and Door Systems
    10 Mawarra St Capral Aluminium
    Grays Point Kitchen/ Dining Room

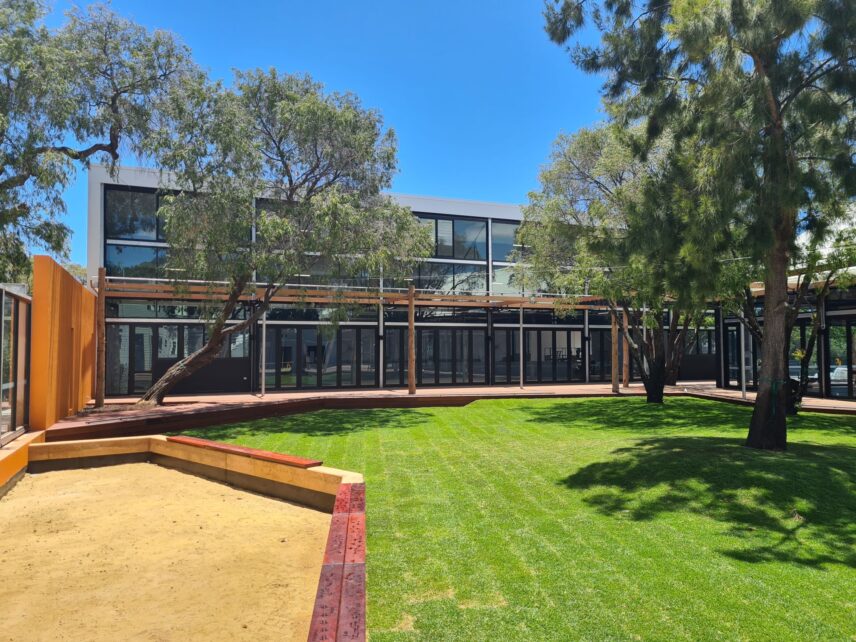

    South Camp Dunn Bay Outdoors
    Capral's Project Esperance TAFE Campus Maximises Light For Learning using Capral window and building systems.
    Capral's Project Esperance TAFE Campus Maximises Light For Learning using Capral window and building systems.
    Capral's Project MLC Nicholas Learning Centre using Capral window and building systems.

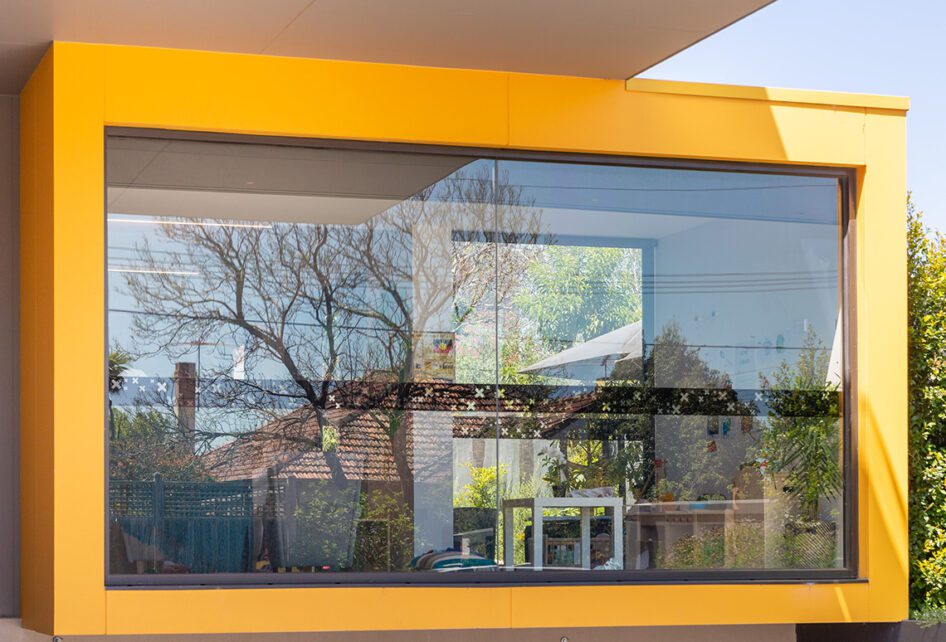

    Capral's Project Our Place Early Learning Centre using Capral window and building systems.
    Capral's Project Our Place Early Learning Centre using Capral window and building systems.

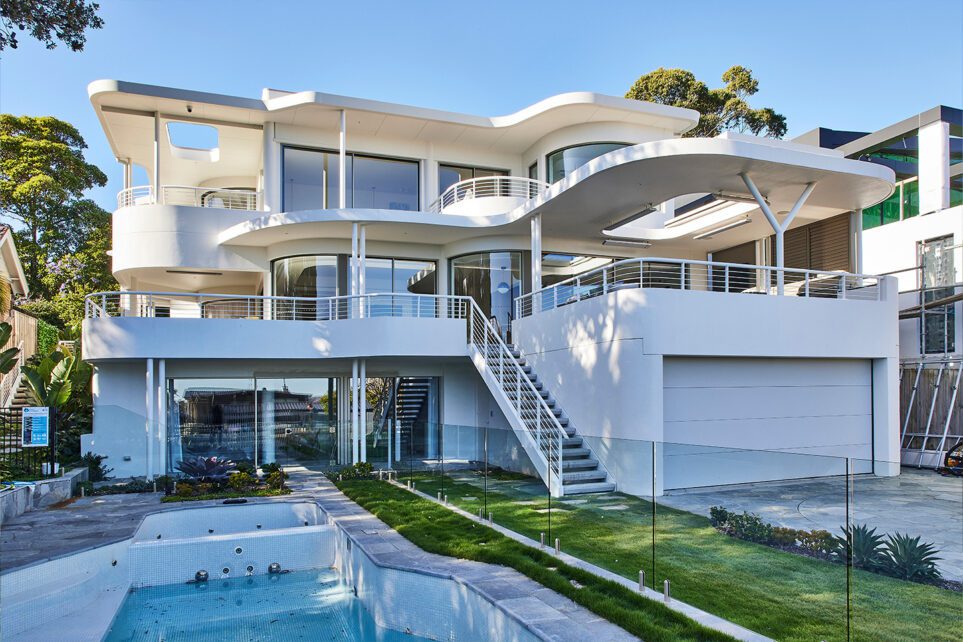

    Capral's Project Mosman Project using Capral window and building systems.
    Capral's Project Mosman Project using Capral window and building systems.
    Capral's Project Mosman Project using Capral window and building systems.

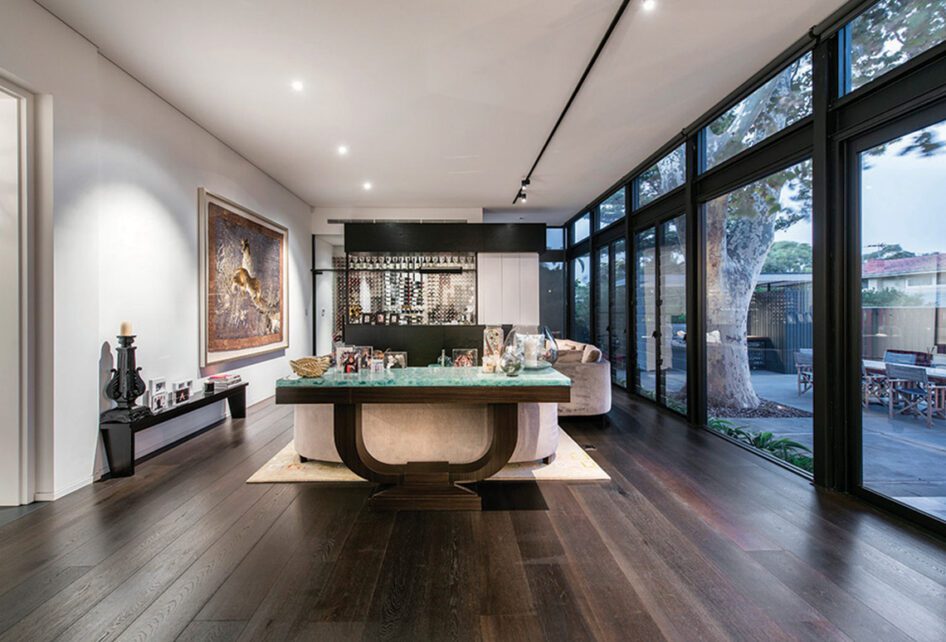

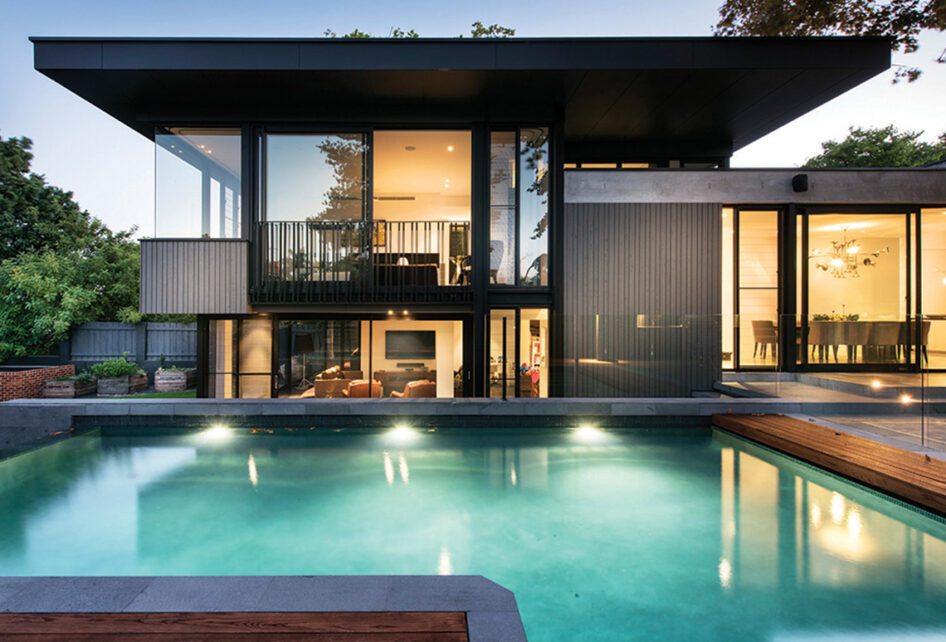

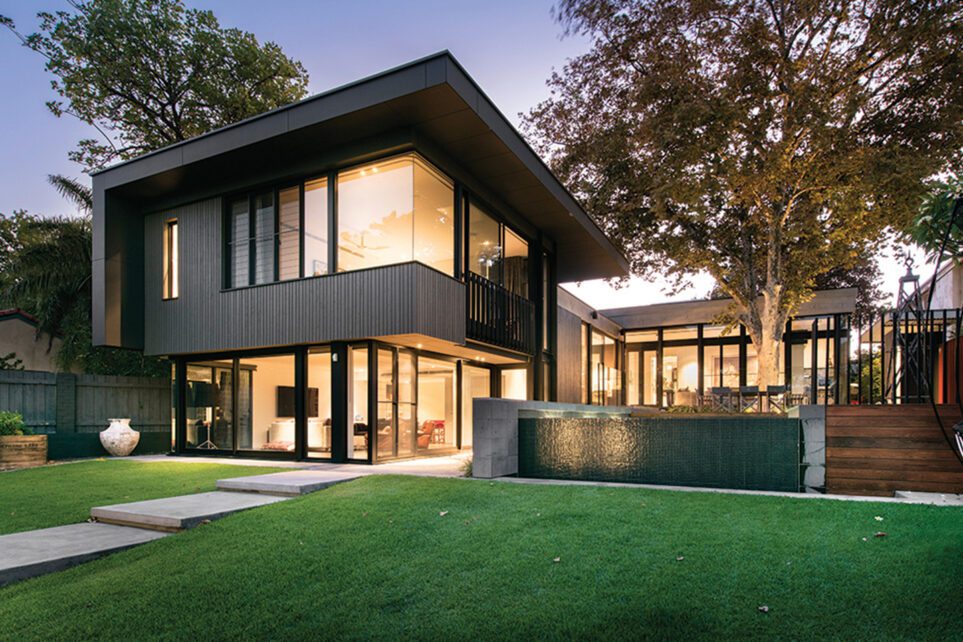

    Capral's Project Peppermint Grove Residence using Capral window and building systems.
    Capral's Project Peppermint Grove Residence using Capral window and building systems.
    Capral's Project Peppermint Grove Residence using Capral window and building systems.

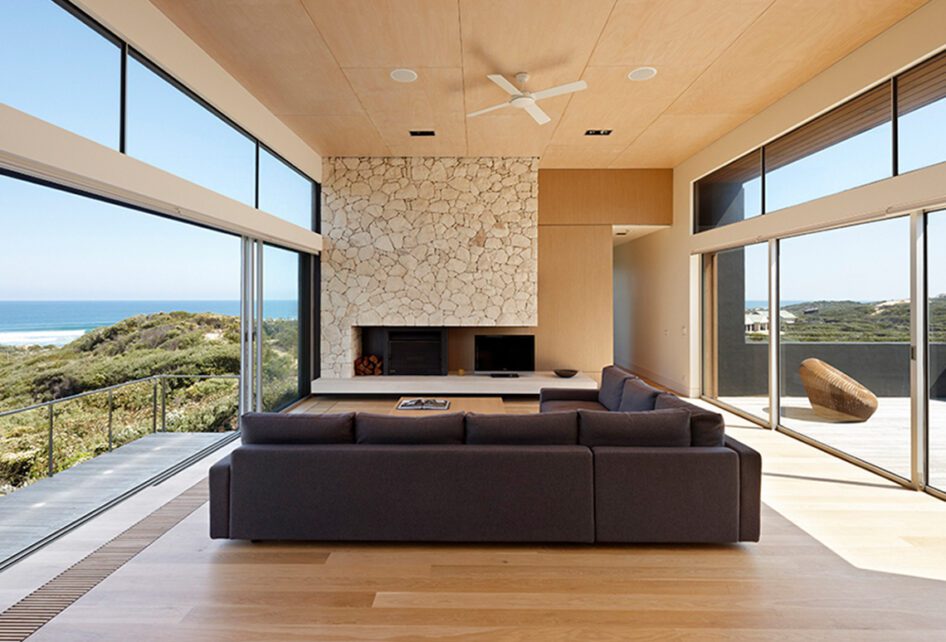

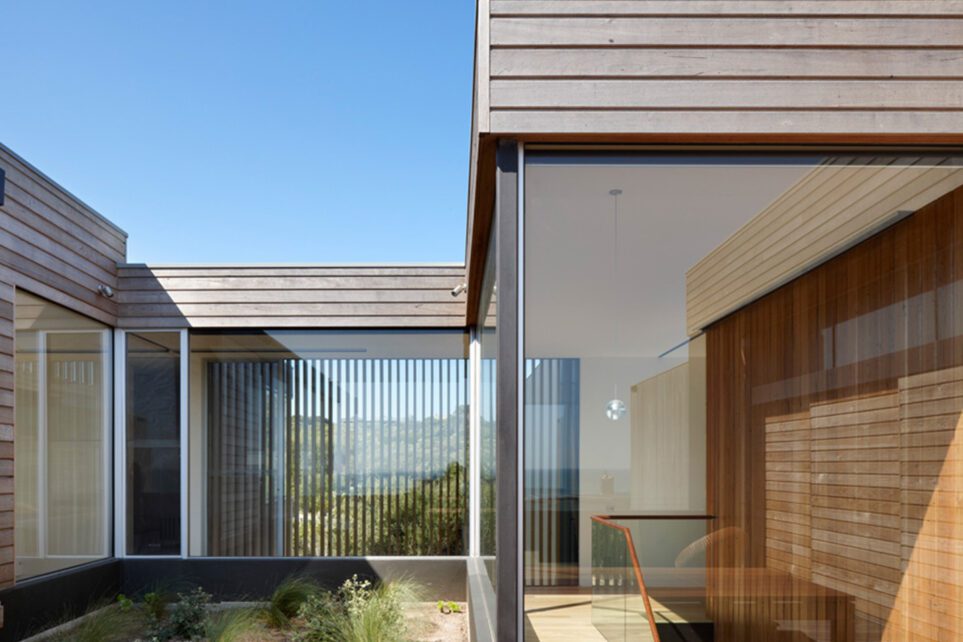

    Capral's Project St. Andrew's Beach House using Capral window and building systems.

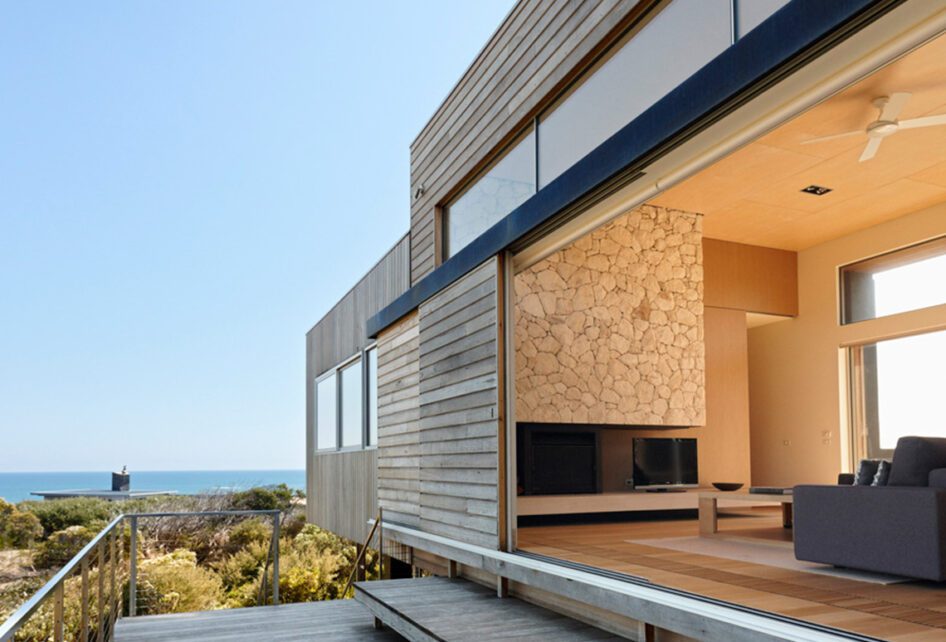

    Capral's Project St. Andrew's Beach House using Capral window and building systems.
    Capral's Project St. Andrew's Beach House using Capral window and building systems.

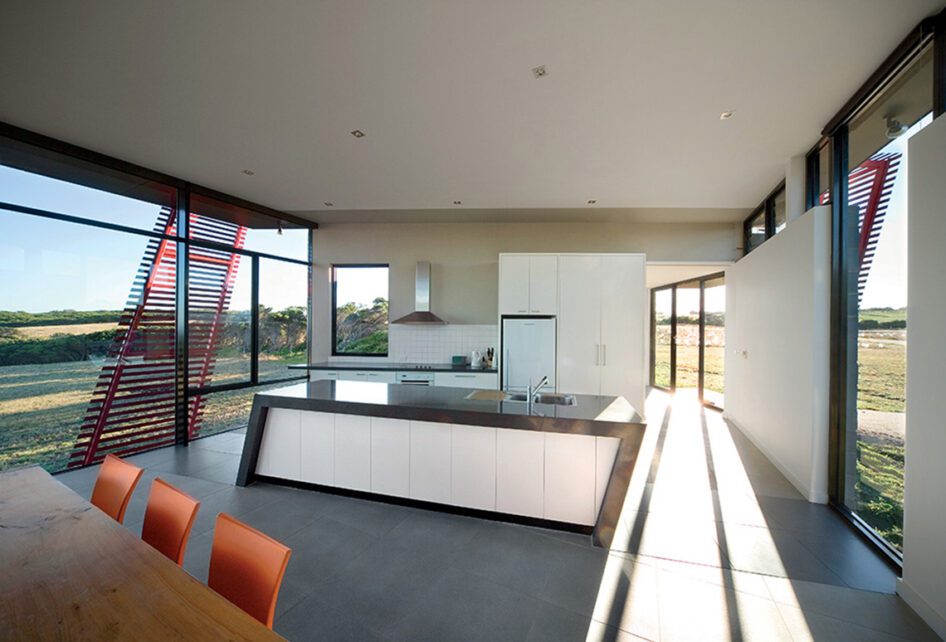

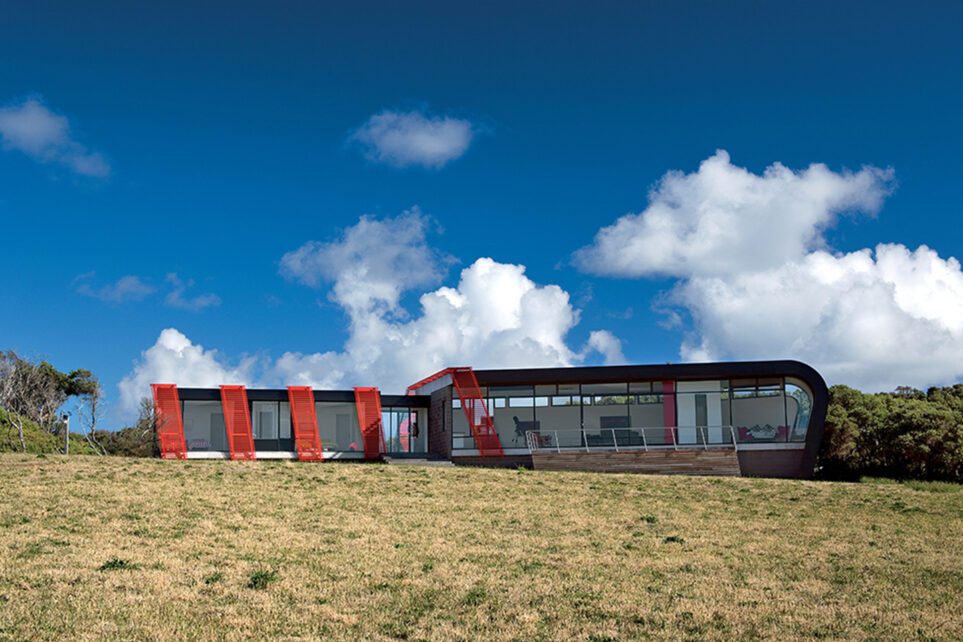

    Capral's Project Cape Escape using Capral window and building systems.
    Capral's Project Cape Escape using Capral window and building systems.
    Capral's Project Cape Escape using Capral window and building systems.
    Capral's Project Cape Escape using Capral window and building systems.
    4 Gosford Court Capral Window and Door Systems
    4 Gosford Court Capral Window and Door Systems
    10 Mawarra St Capral Aluminium
    Grays Point Kitchen/ Dining Room
    South Camp Dunn Bay Outdoors
    Capral's Project Esperance TAFE Campus Maximises Light For Learning using Capral window and building systems.
    Capral's Project Esperance TAFE Campus Maximises Light For Learning using Capral window and building systems.
    Capral's Project MLC Nicholas Learning Centre using Capral window and building systems.
    Capral's Project Our Place Early Learning Centre using Capral window and building systems.
    Capral's Project Our Place Early Learning Centre using Capral window and building systems.
    Capral's Project Mosman Project using Capral window and building systems.
    Capral's Project Mosman Project using Capral window and building systems.
    Capral's Project Mosman Project using Capral window and building systems.
    Capral's Project Peppermint Grove Residence using Capral window and building systems.
    Capral's Project Peppermint Grove Residence using Capral window and building systems.
    Capral's Project Peppermint Grove Residence using Capral window and building systems.
    Capral's Project St. Andrew's Beach House using Capral window and building systems.
    Capral's Project St. Andrew's Beach House using Capral window and building systems.
    Capral's Project St. Andrew's Beach House using Capral window and building systems.
    Capral's Project Cape Escape using Capral window and building systems.
    Capral's Project Cape Escape using Capral window and building systems.
    Capral's Project Cape Escape using Capral window and building systems.
    Capral's Project Cape Escape using Capral window and building systems.
    Key features
    • 101.6mm x 44mm centre glazed framing system
    • Supports single glazing
    • Captive glazing wedge options for more accessible on-site glazing
    • Flexible design with a wide range of mullion and transom options
    • Sub-frame options
    • Compatible door and window suites are available
    • Internal and externally beaded options

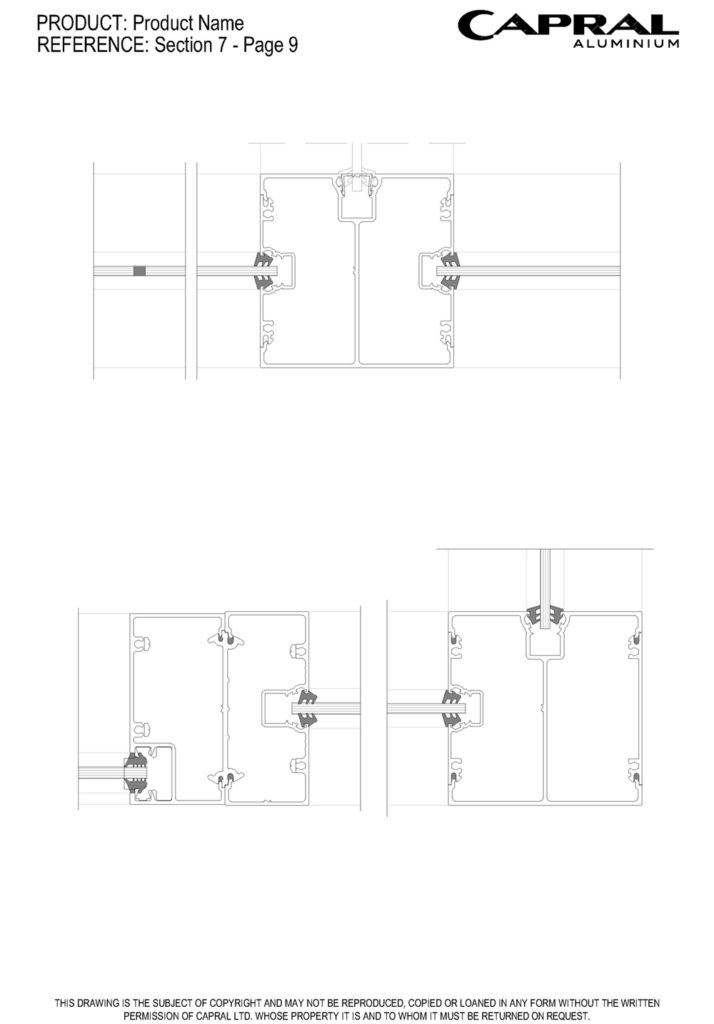

    • Dedicated corner posts
    • Tested for BAL 40 compliance

    The AGS 400 Narrowline framing system has set the standard for centre-glazed framing for over two decades. With an aesthetically balanced look and the option of bevelled or square finishes, the AGS 400 Narrowline is the most versatile and adaptable framing system in the range.
    With many compatible window and door suites, the AGS 400 Narrowline offers enormous design flexibility, making this product ideal for commercial or residential projects requiring a bold modern look and high levels of structural performance.

    Download Brochure

    Details

    Product Specs

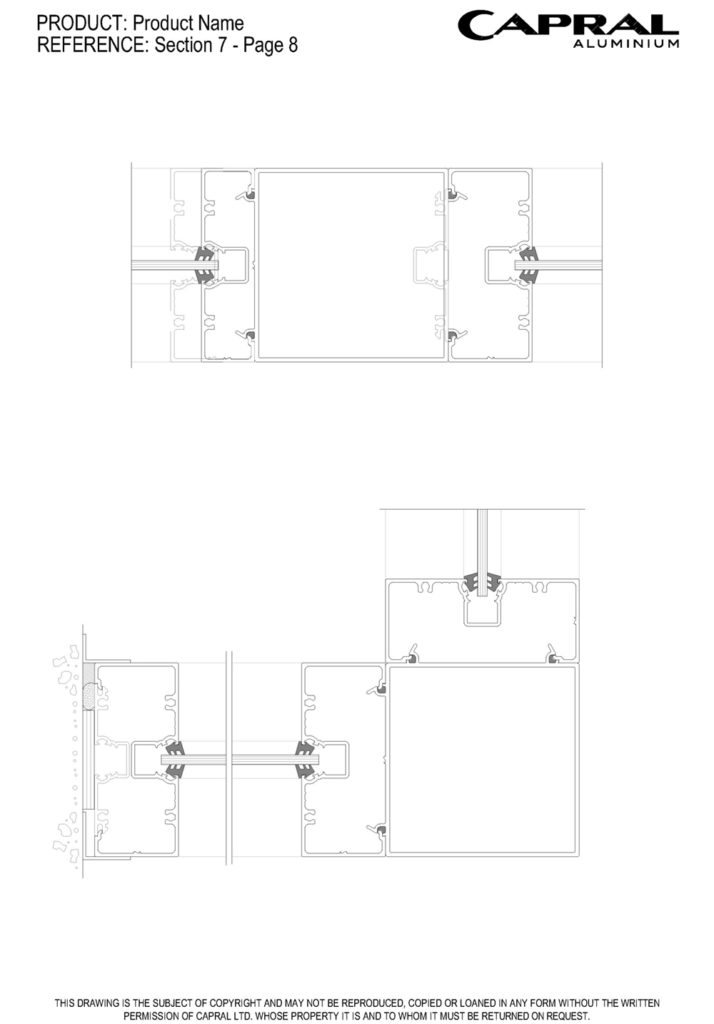

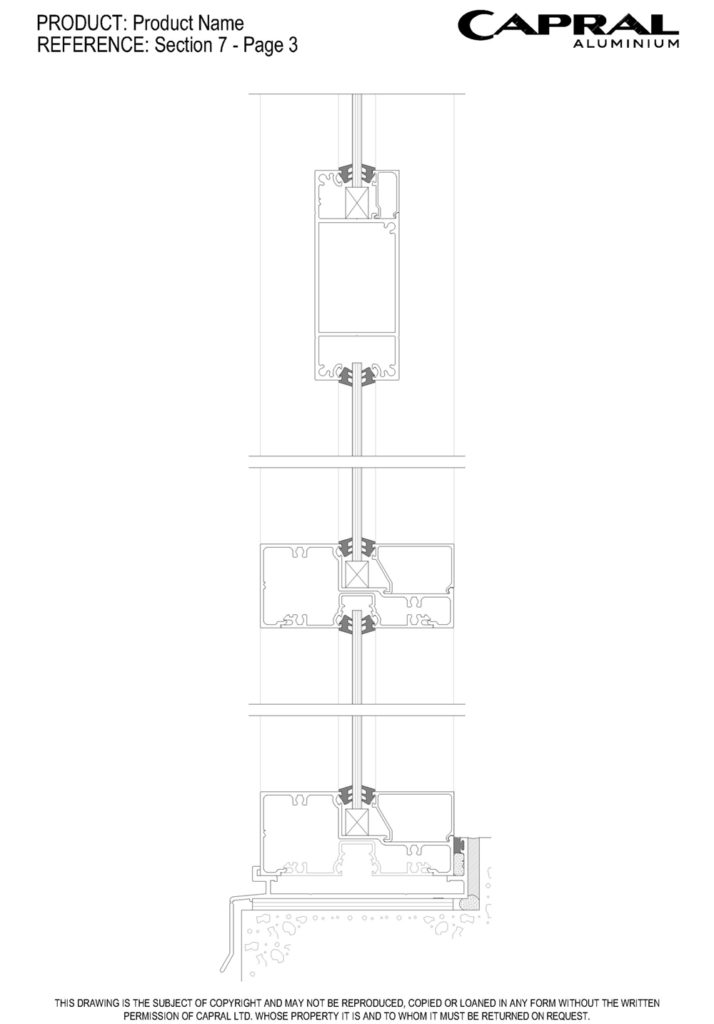

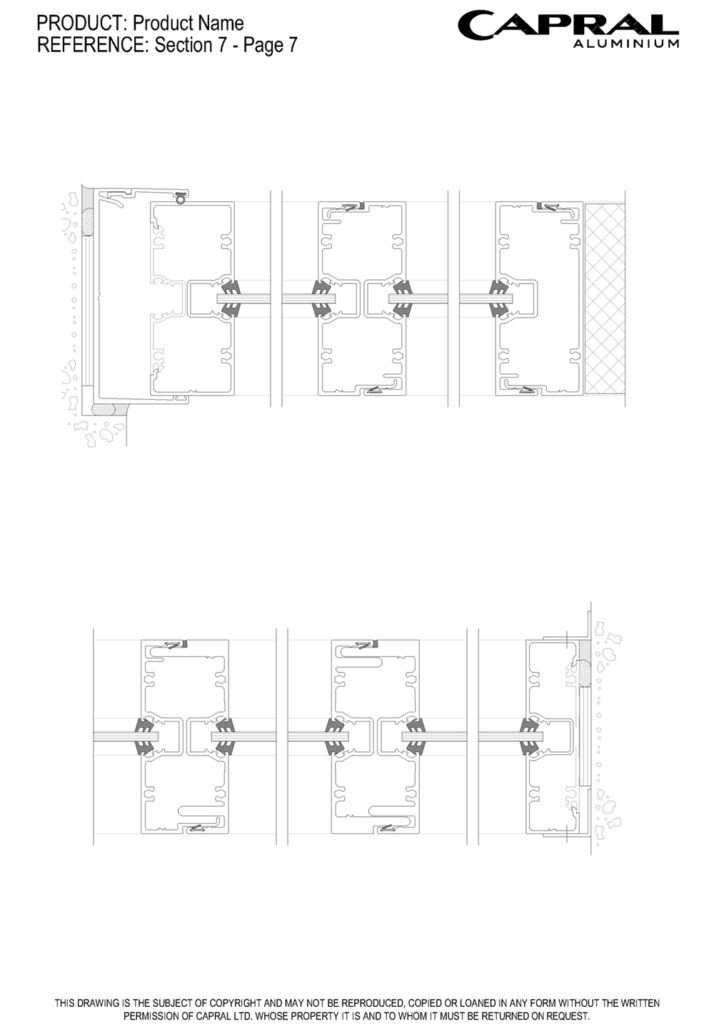

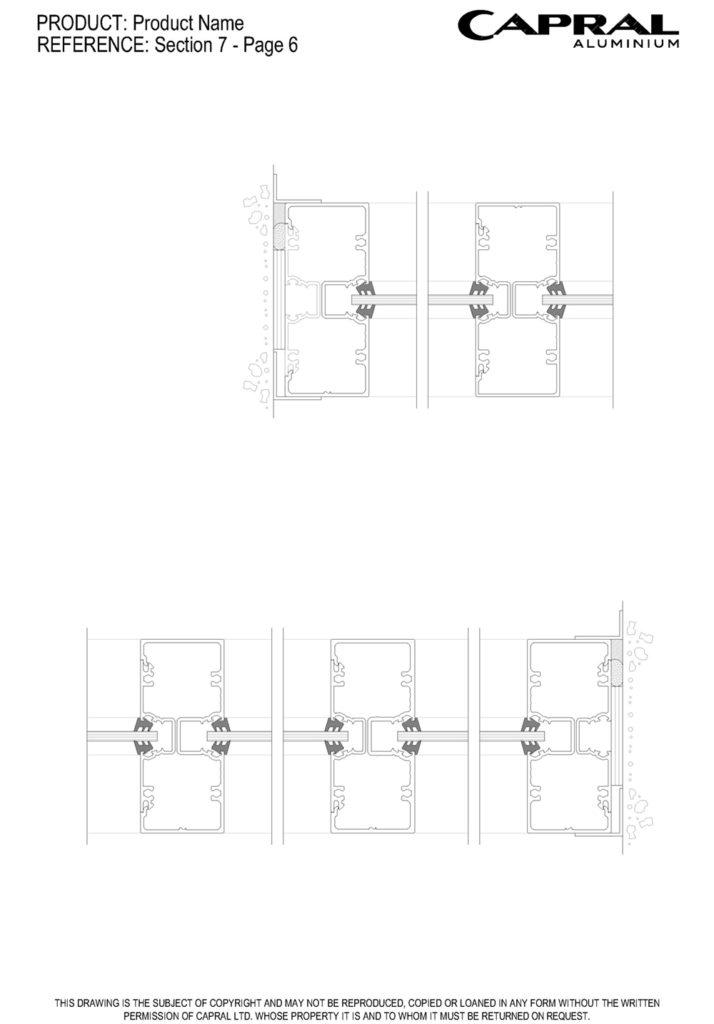

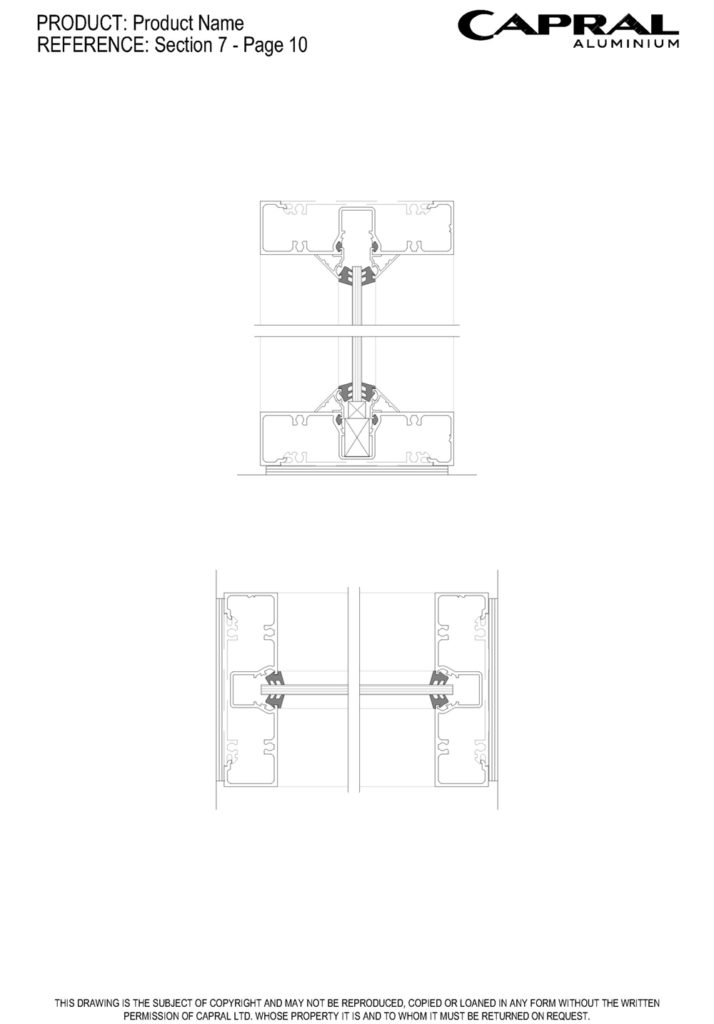

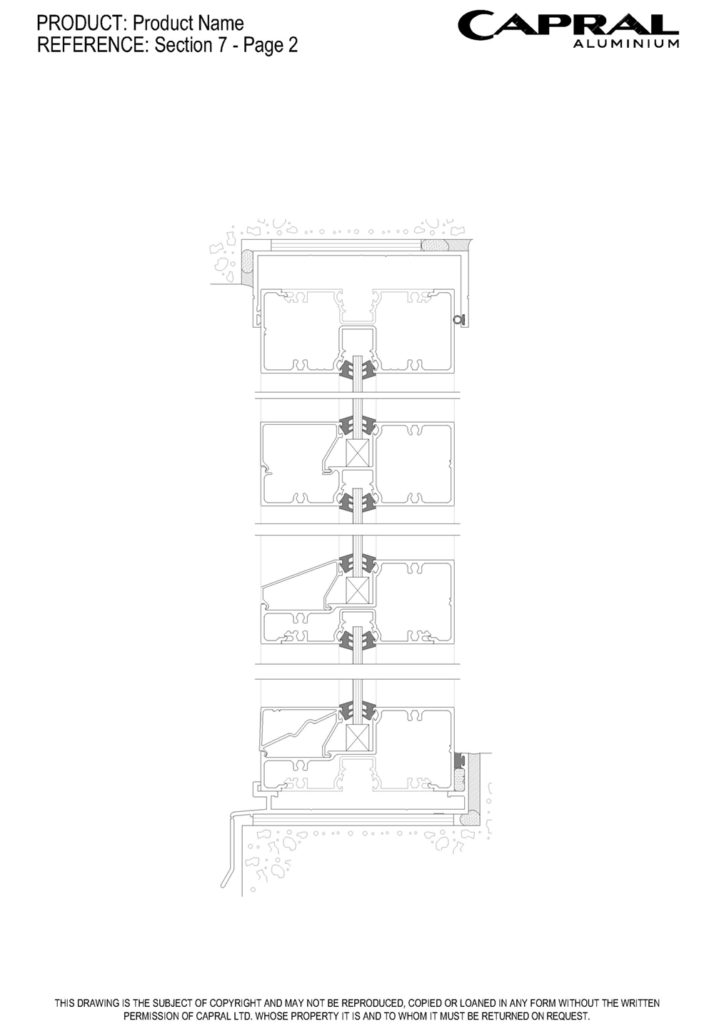

    Configurations
    Arrangements

    Maximum Product Sizes

    Panel Height (mm) 4000
    Panel Width (mm) 2400

    Frame Dimensions (mm)

    Frame depth (mm) 101.6
    Face Width (mm) 44

    101.6mm x 28mm frame option also available

    Acoustic Rating

    Rw (C;Ctr) 37 (0;-3)

    Bushfire Rating

    BAL 40

    Maximum Product Performance

    SLS (Pa) 5200
    ULS (Pa) 10300
    WATER (Pa) 1500

    Glazing Details

    Single Glazed 4 - 10

    Energy Performance

    Uw Range 4.07 - 6.03
    SHGC Range 0.26 - 0.75
    Tvw Range 0.08 - 0.81
    Air infiltration 0.04 - 0.04
    WERS Rating
    Residential Commercial

    Downloads

    Technical Documents, CAD & Revit
    Other
    Technical Manuals
    Technical Manual AGS 400 Narrowline
    Technical Manual AGS Sub Frames
    Wall Charts
    Extrusion Wall Chart AGS Narrowline Framing Systems
    Extrusion Wall Chart AGS Speciality Sub Frames
    Extrusion Wall Chart AGS Sub Framing
    BIM Files
    Revit AGS Narrowline Framing
    Revit Capral Subframes
    CAD Files
    CAD Files AGS 400 Narrowline
    CAD Files AGS Sub Frames
    CAD Wall Chart AGS Narrowline Framing
    CAD Wall Chart AGS Sub Framing
    Bulletins
    PBJ1064 - Concealed End Dam for 400/425 Narrowline Sub Sills
    PB467 - Head Flashings
    PB337 - AGS Narrowline Relaunch
    PB305 - Urban Plus to AGS Couplers
    Other
    Capral_ArchitecturalSeries_Whitepaper Capral AGS 400 Narrowline Brochure Specification AGS 400 Narrowline Capral Installation Details
    NATSPEC Branded Work Section
    Environmental Protection Declaration (EPDs)
    EPD-IES-0031050:001 LocAl Version: 1 (2026-05-28)
    EPD-IES-0032247:001 LocAl SG Version: 1 (2026-06-12)
