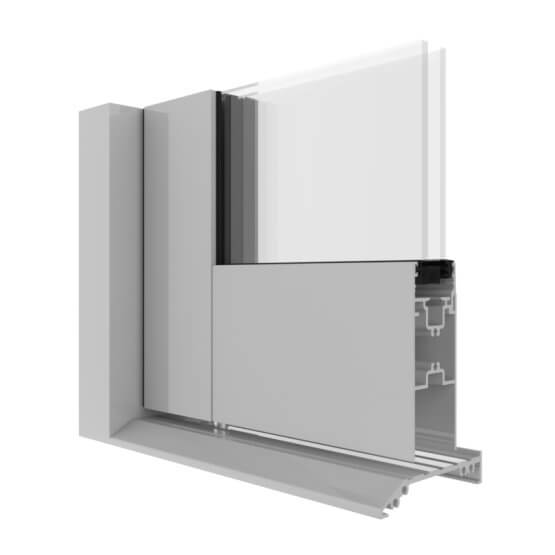

AGS Commercial 225 Pivot Door Corner Image.
Commercial

AGS Commercial 225 Pivot Door

The AGS 225 Pivot Door is a 46mm pocket glazed commercial door panel capable of delivering flexibility, performance and ease of assembly in mind.

Declare Label
Certified
Disability
Access
Jump to:
Select
Key features
  • 46mm Door Panel
  • Narrow and Wide Stile options accommodate a wide range of hardware
  • Shallow rail option
  • Suits both single and double glazing
  • Hinged and sliding door panel configurations also available
  • Suits commercial or architectural applications
  • Compatible with a wide range of framing suites

The AGS 225 Door has been designed with flexibility, performance and ease of assembly in mind. The AGS 225 Door suits a wide range of applications from architectural entry doors through to commercial shopfronts.
This door can be fitted with either single or double-glazed units and has the option of standard and wide stiles. It is also compatible with a vast range of commercial and architectural locks and furniture and the full range of Capral framing systems.

Download Brochure

Details

Product Specs
Configurations
Arrangements

Maximum Product Sizes

Panel Height (mm) 3000
Panel Width (mm) 1200

Frame Dimensions

Door Panel 46mm Depth

Maximum Product Performance

SLS (Pa) 4000
ULS (Pa) 6100

Glazing Details

Single Glazed 4 - 12
Double Glazed 19 - 31
Thick Glazed 14 - 18

Energy Performance

Uw Range 2.27 - 5.96
SHGC Range 0.17 - 0.54
Tvw Range 0.17 - 0.56
Air infiltration 0.53 - 0.53

Downloads

Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual AGS 225 Hinged and Pivot Door
Technical Manual AGS Sub Frames
Wall Charts
Extrusion Wall Chart AGS 215 & 225 Door Systems
Extrusion Wall Chart AGS Speciality Sub Frames
Extrusion Wall Chart AGS Sub Framing
CAD Files

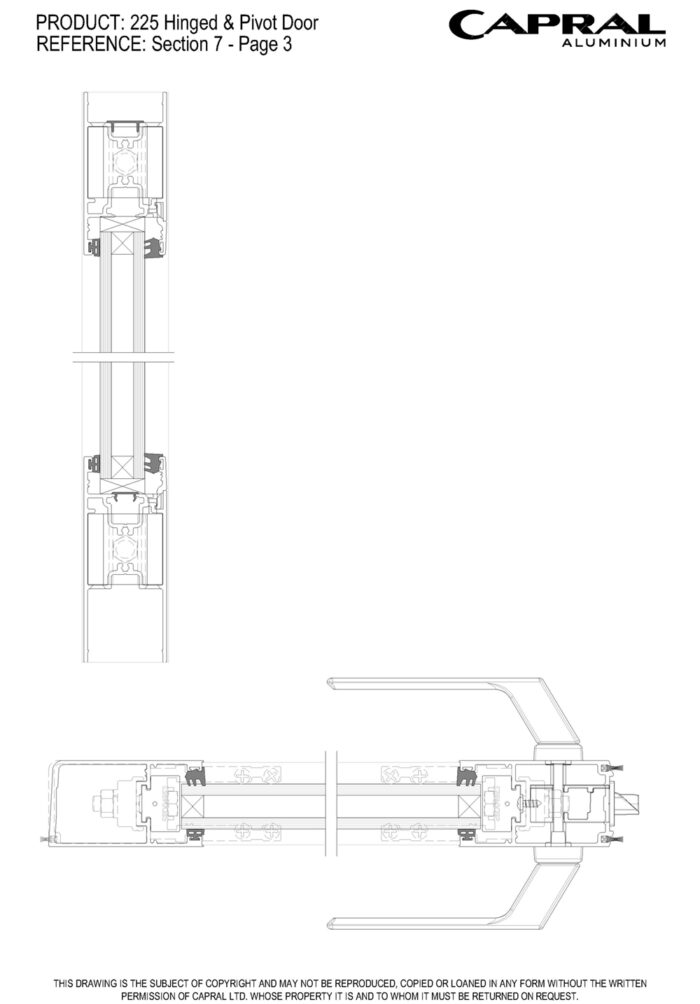

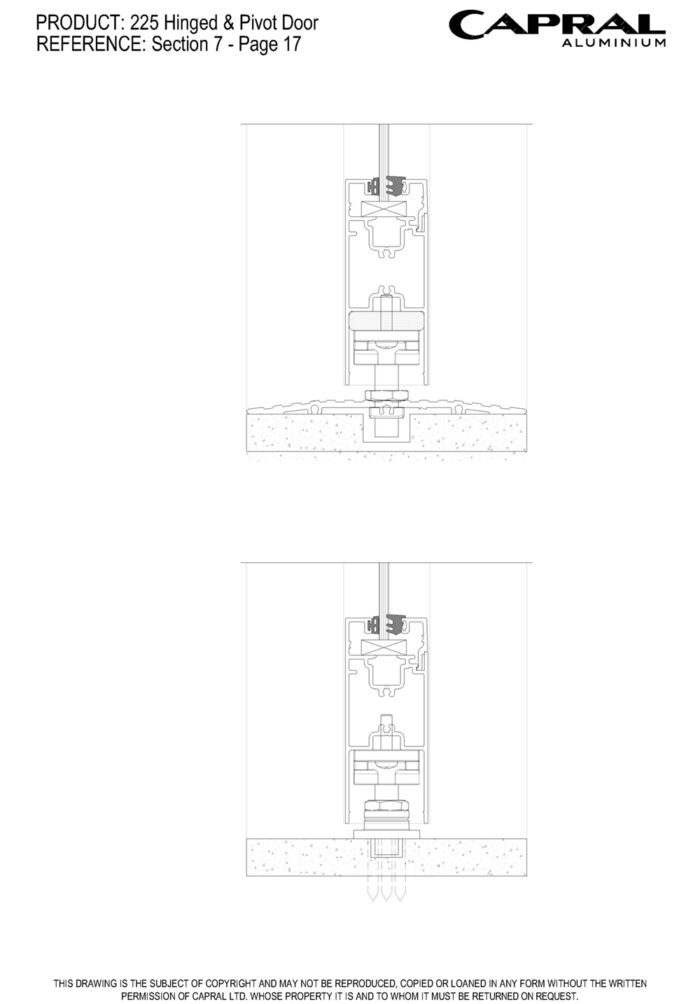

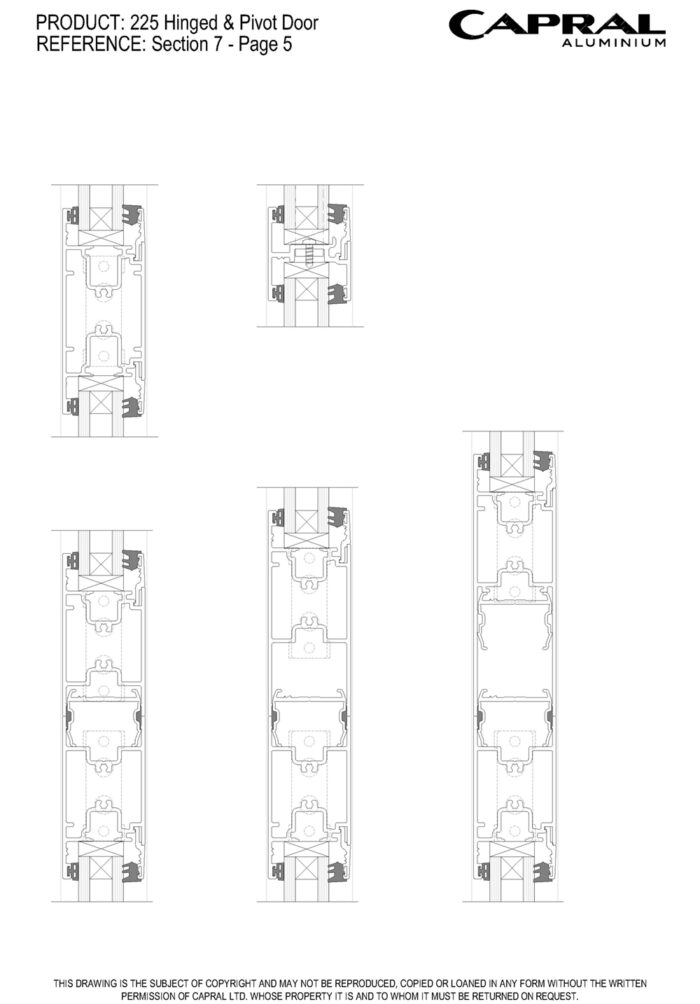

CAD Files AGS 225 Hinged and Pivot Doors
CAD Wall Chart AGS 215 and 225 Doors
CAD Files AGS Sub Frames
CAD Wall Chart AGS Sub Framing
Bulletins
PB1018 - AGS 225 Door – Manual Split & New Additions
PB445 - 300677 1030 Slider Cushion Stop Package
PB445 - 300677 1030 Slider Cushion Stop Package
PB318 - AGS 225 Sliding Door Track Additions
PB299 - AGS Hinged Door Threshold Additions
PB300 - AGS Hollow Sub Heads
Other

Compatible Products

AGS Commercial 629 Flushline Double Glazed (150mm) Corner Image. AGS Commercial 629 Flushline Double Glazed (150mm)

Flushline AGS629 is the new name for the product formerly known as Flushline 419DG 150mm x 55mm. This system was developed to accommodate both internal and external glazing.

More products from this range

AGS Commercial 450 Narrowline Wide Pocket (101.6mm)

The AGS 450 Narrowline has been designed with extra wide glazing pockets to accept double-glazed units with internal Venetian blinds

AGS Commercial 480 Sliding Window (100mm) Corner Image. AGS Commercial 480 Sliding Window (101.6mm)

The AGS 480 Sliding Window incorporates the features and flexibility of a residential window system into the commercial grade AGS 400/425 Narrowline framing systems.

AGS Commercial 215 Hinged Door

The AGS 215 Door is a 36mm pocket glazed hinged door panel designed to meet the market demand for a cost-effective hinge door while still having the key attributes of a commercial hinged door

AGS Commercial 35 Hook Hinge Awning Sash

This AGS Commercial Awning Window with Hook Hinge is an operable window sash available for use with AGS commercial framing.

AGS Commercial 300 Narrowline Single Glazed (76mm) Corner Image. AGS Commercial 300 Narrowline Single Glazed (76mm)

The AGS 300 Narrowline’s slimline frame depth makes it ideal for lowrise commercial applications

AGS Commercial 600 Narrowline Single Glazed (150mm) Corner Image. AGS Commercial 600 Narrowline Single Glazed (150mm)

The AGS 600 Narrowline offers an increased level of structural Performance than the AGS 400 Narrowline with its bolder 150mm frame depth and increased 50mm face dimension.

AGS 325 Narrowline Double Glazed (76mm) Corner Image. AGS Commercial 325 Narrowline Double Glazed (76mm)

The AGS 325 Narrowline double-glazed aluminium framing system's slimline frame depth and ability to accommodate a captive glazing wedge make it an economical option for architectural projects.

Extruded Aluminium Louvre Extruded Louvre

An extensive range of extruded louvre blades are available from Capral to cater for various ventilation, shading and aesthetic requirements

Not quite what you’re looking for? Consider...

AGS Commercial 225 Pivot Door Corner Image. SGS Commercial 225 Pivot Door (QLD Only)

The SGS 225 Pivot Door is a 46mm pocket glazed commercial door panel capable of delivering flexibility, performance and ease of assembly in mind.

Projects that use this system

Grays Point Project: Seamless Waterfront Living

Grays Point waterfront renovation redefines modern family living, blending light-filled design, bushfire-rated performance and seamless indoor-outdoor connections.


Residential

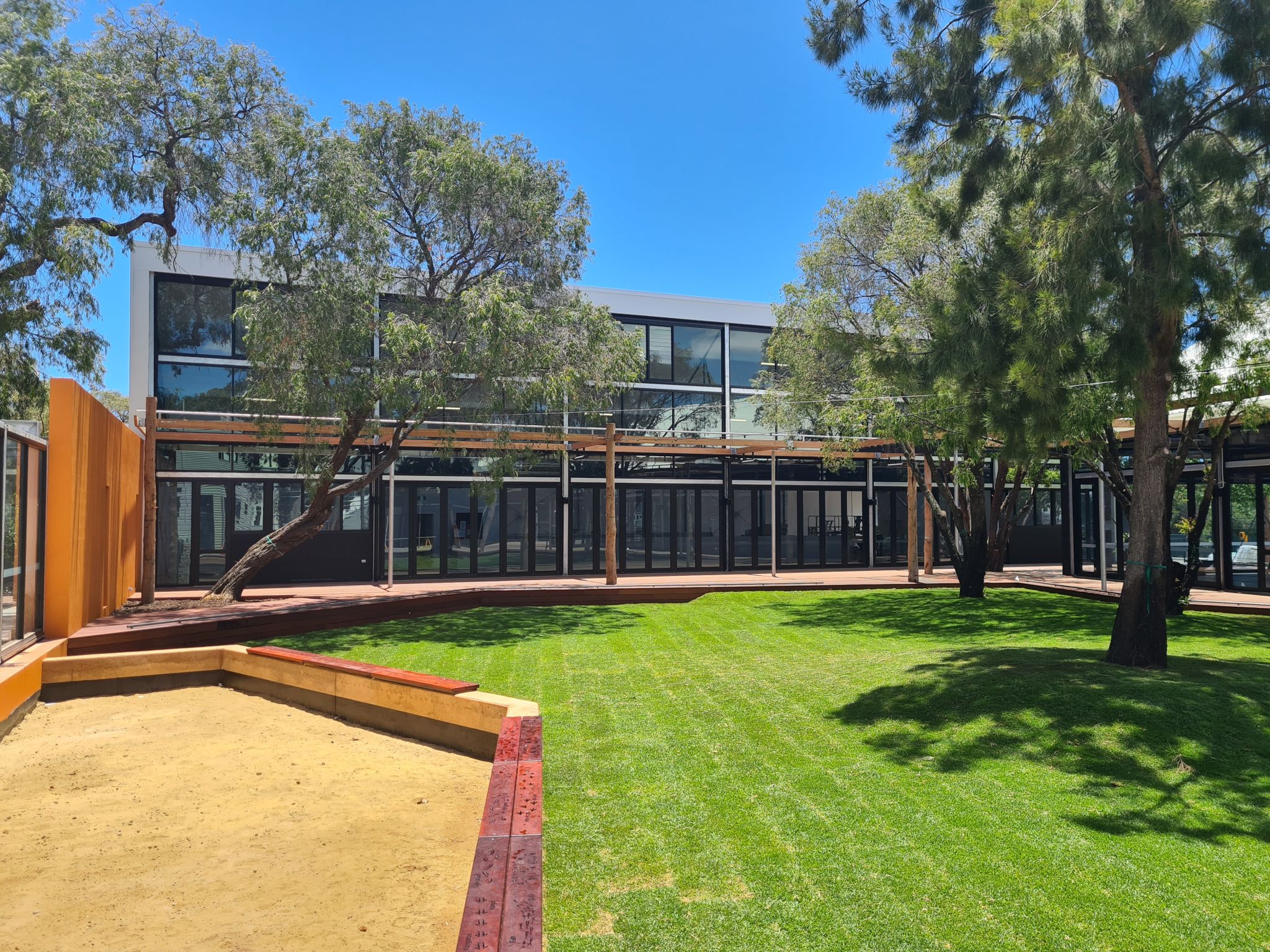

Dunn Bay: Southcamp

Southcamp is a coastal mixed-use development in Dunsborough that combines industrial design with relaxed charm, brought to life using Capral’s window and door systems.


Built Environment

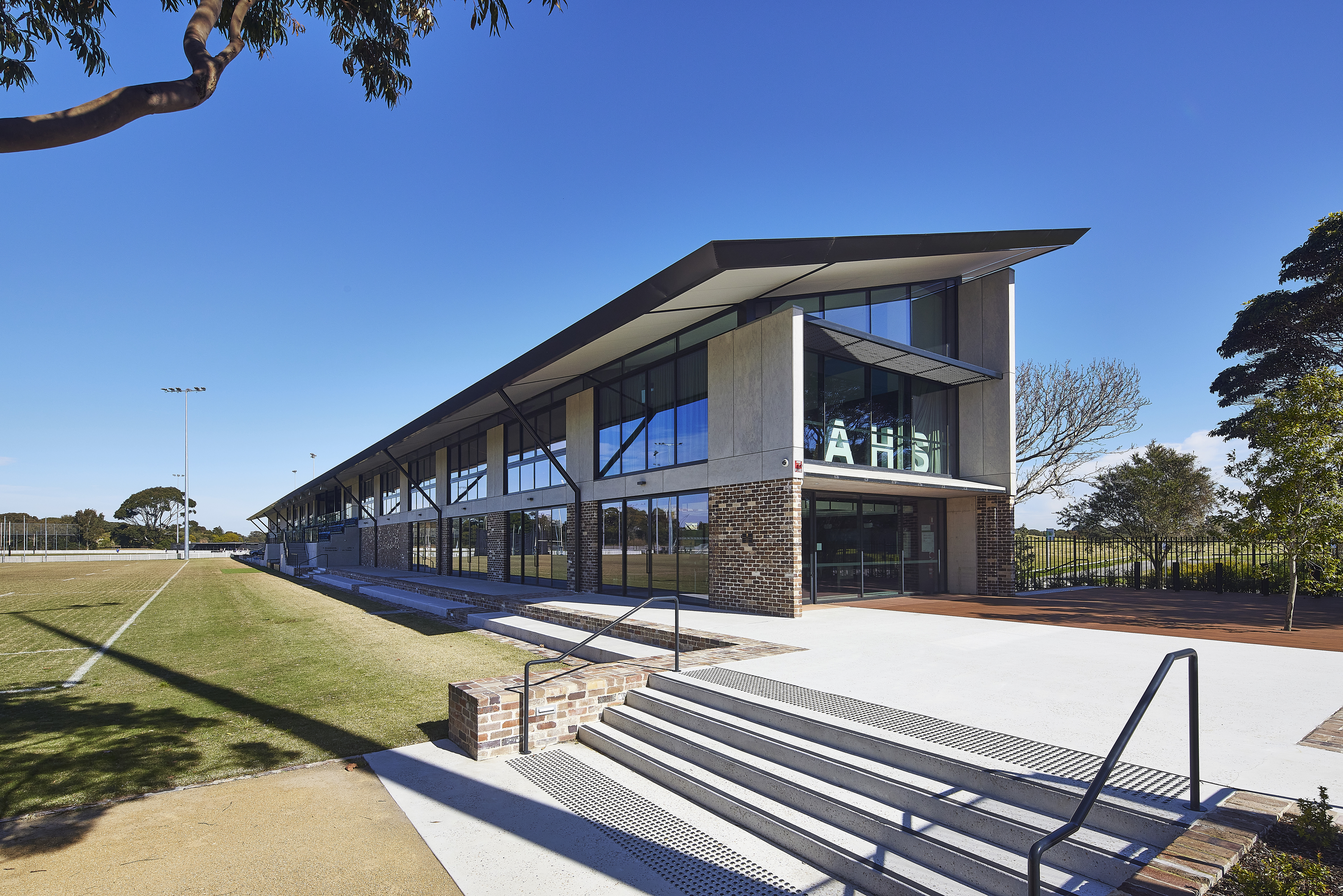

NSW Rugby
