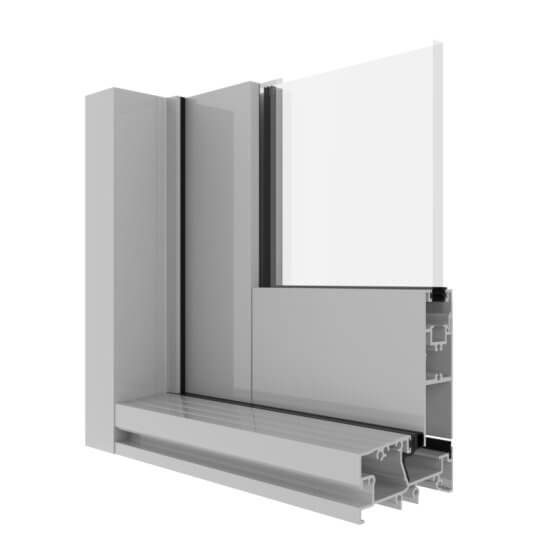

AGS Commercial 215 Hinged Door
The AGS 215 Door is a 36mm pocket glazed hinged door panel designed to meet the market demand for a cost-effective hinge door while still having the key attributes of a commercial hinged door
Certified
Rated
Access
Key features
- 36mm Door Panel
- Suits both single and double glazing
- Suits light-commercial and semi-architectural applications
- Compatible with a wide range of framing suites
- Single or double-door configurations
- Low profile, non-water-rated sill
- Compatible with the full range of Caprice & Caprio hardware
The AGS 215 Door is a 36mm beaded hinged door panel designed to meet the market demand for a cost-effective hinge door with all the critical attributes of a commercial hinged door. This makes it an excellent choice for semi-architectural and light commercial projects such as domestic entry doors and internal applications.
This door can be single or double-glazed and is compatible with a vast range of commercial and architectural locks, furniture, and Capral’s wide offering of framing systems.
Details
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
2700
Panel Width (mm)
1200
Panel Weight (kg)
80

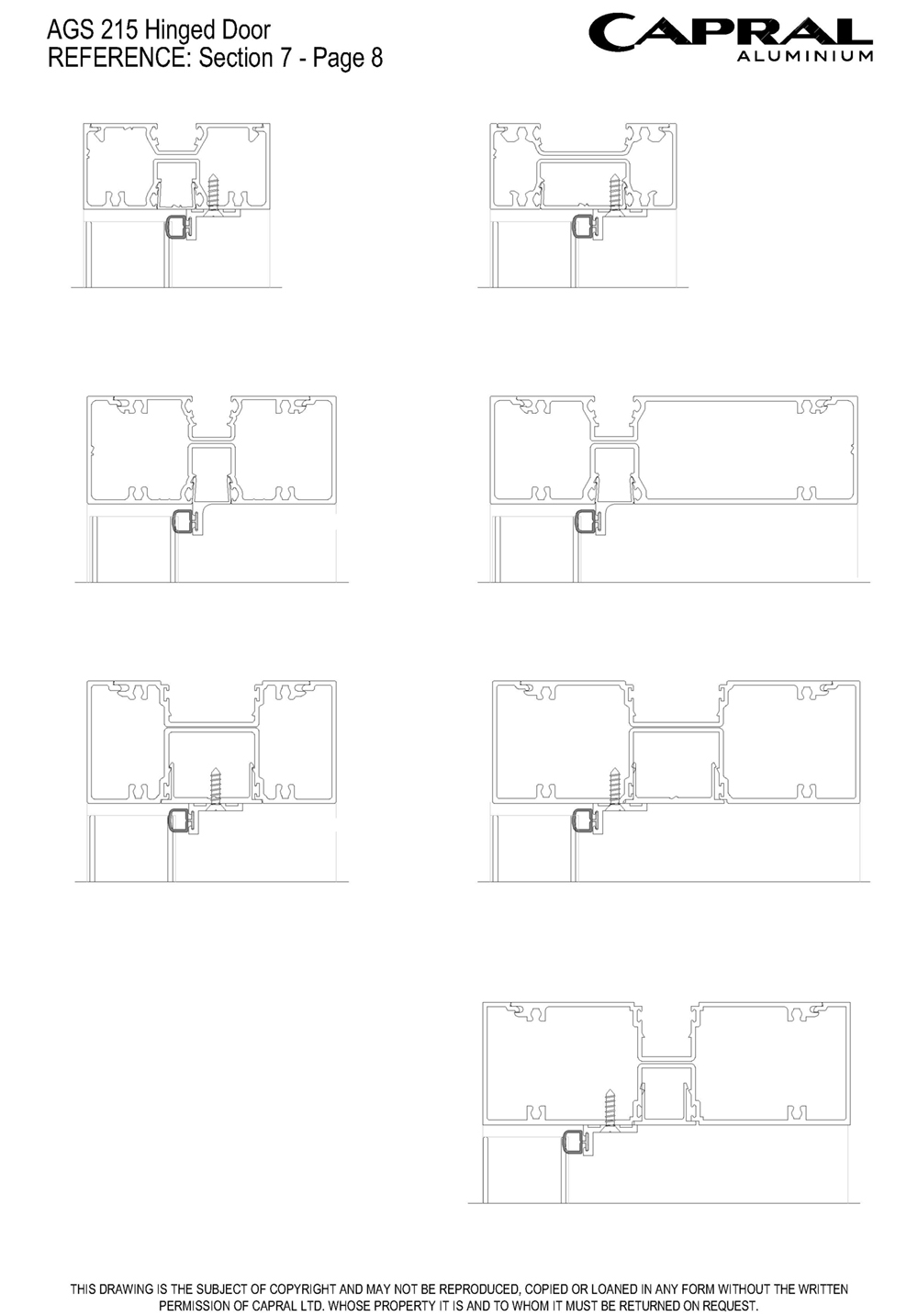

Frame Dimensions (mm)
Panel depth is 36mm
Acoustic Rating
Rw (C;Ctr)
36 (-1;-2)
Maximum Product Performance
SLS (Pa)
4500
ULS (Pa)
7500
WATER (Pa)
300
Glazing Details

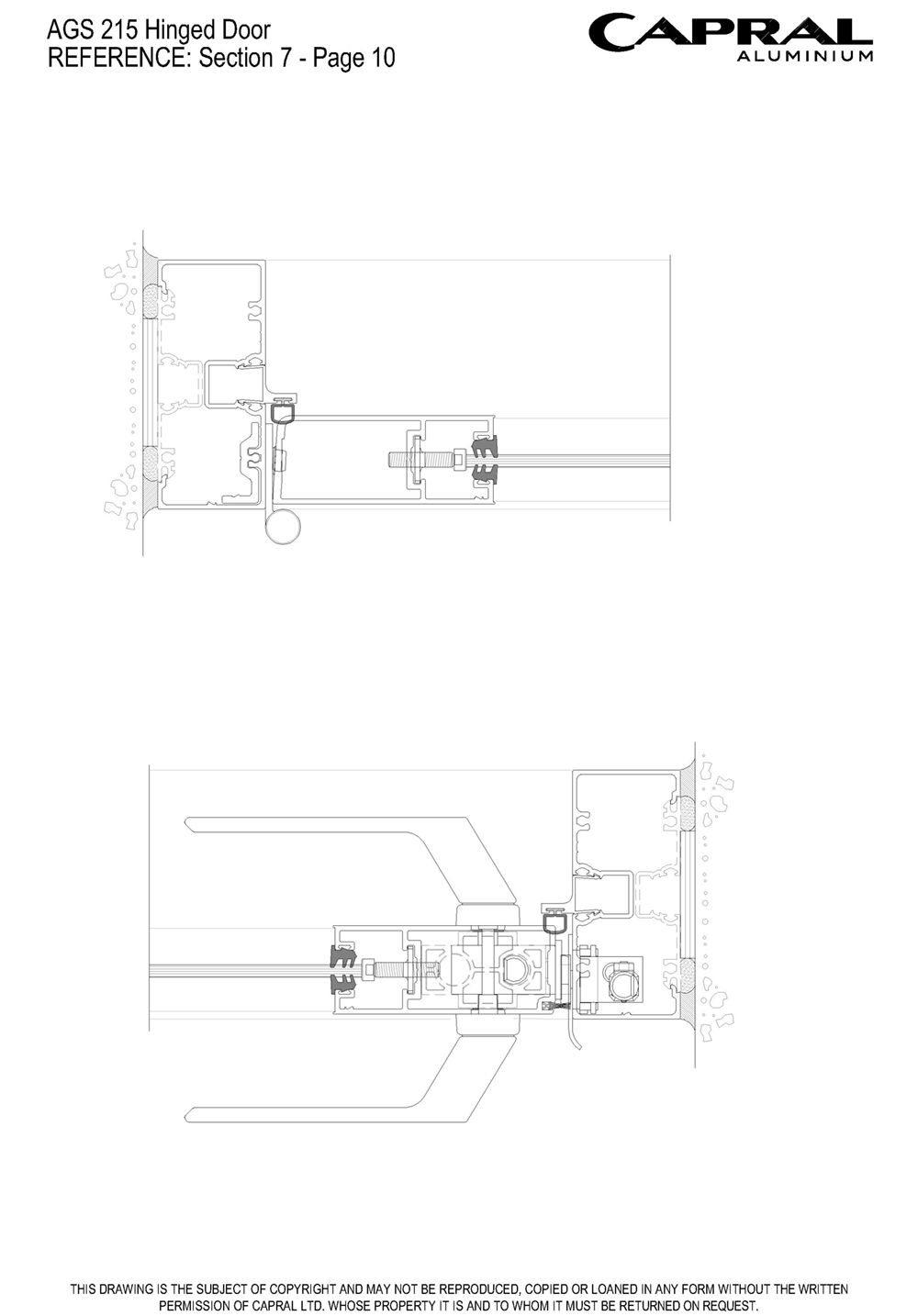

Single Glazed
4 - 10
Double Glazed
16 - 18

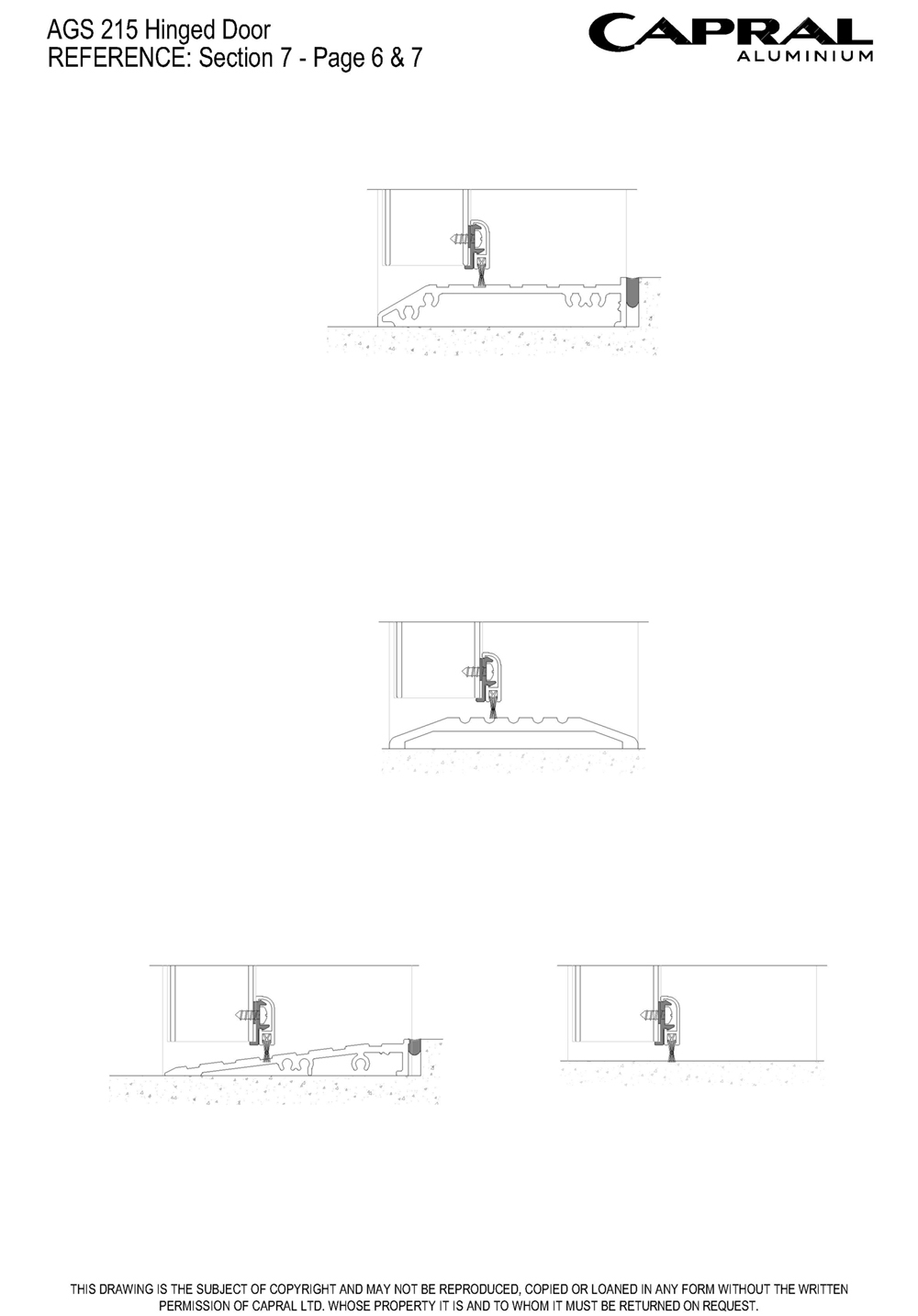

Sill Options
Option 1
45 Std Sill
Option 2
20-25 Flat Sill
Option 3
12-15
Low Profile Sill
Low Profile Sill
Energy Performance
Uw Range
3.40 - 5.92
SHGC Range
0.18 - 0.53
Tvw Range
0.20 - 0.54
Air infiltration
1.24 - 1.24
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual AGS 215 Hinged Door
Technical Manual AGS Sub Frames
Wall Charts
Extrusion Wall Chart AGS 215 & 225 Door Systems
Extrusion Wall Chart AGS Speciality Sub Frames
Extrusion Wall Chart AGS Sub Framing
Extrusion Wall Chart Capral Screening
CAD Files
CAD Files AGS 215 Hinged Door
CAD Wall Chart AGS 215 and 225 Doors
CAD Files AGS Sub Frames
CAD Files Capral Screening
CAD Wall Chart AGS Sub Framing
CAD Wall Chart Capral Screening
Bulletins
PB303 - AGS Hinged Door Backing Plate
PB300 - AGS Hollow Sub Heads
PB284 - July 2021 Documentation Updates
Other
Capral_ArchitecturalSeries_Whitepaper
Capral AGS 215 Hinged Door Brochure
Specification AGS 215 Hinged Door
Capral Installation Details
NATSPEC Branded Work Section
Environmental Protection Declaration (EPDs)
